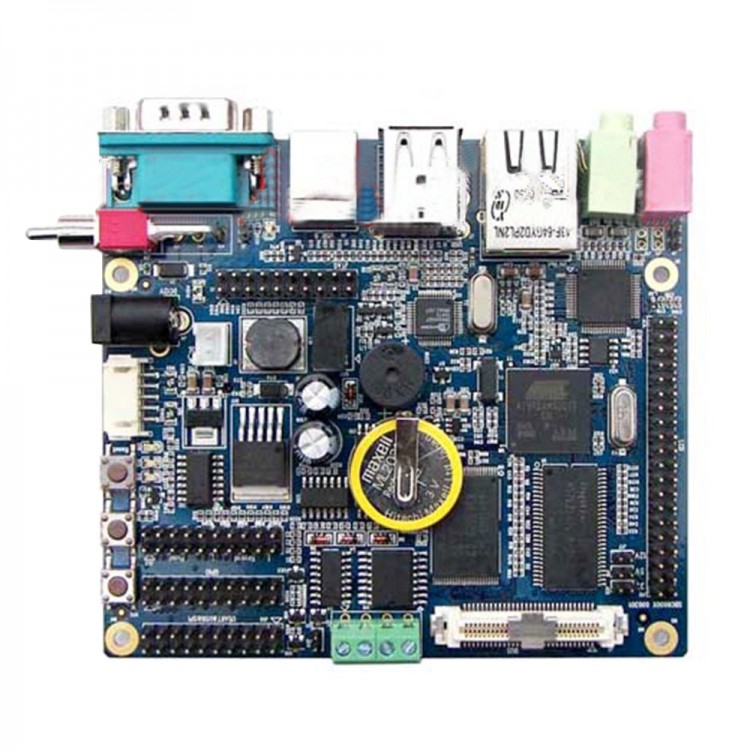

AT91SAM9261S Developemnt Board SBC6000X Industrial SBC Single Board Computer

AT91SAM9261S Developemnt Board SBC6000X Industrial SBC Single Board Computer

Description:
- Based on Atmel AT91SAM9261S (ARM 926EJ-STM, frequency 200MHz) industrial processor
- The onboard 128MB Nand - Flash, 64MB SDRAM
- RS485, RTC communication (with isolation)
- Pre installed WinCE 6 or 2.6.24 Linux operating system
- Atmel AT91SAM9261S microprocessor
- Based on ARM926EJ-STM ARM processor
- ARM Jazelle provides Java acceleration
- 16K bytes of data cache, 16K byte instruction cache, write buffer
- When operating 190 MHz performance up to 210 MIPS
- Memory management unit
- Embedded ICE, debugging support channel
- Embedded macrocell medium scale structure; additional embedded memory
- 2Kbit EEPROM
- By default, 64MB SDRAM, 2*16bit, maximum support 128MB
- The default 128MB NAND Flash, maximum support 256MB
- RTC (error 1Min/), with power keeping function

The communication interface unit:
Serial port:
- COM0: three wire Debug (with TTL pin level leads) can be used as an ordinary serial.
- COM1: five wire RS232 (with TTL pin level leads)
- COM2: five wire RS232/RS485 (with TTL pin level leads)

- 1 channel with isolated RS485 communication interface
- 1 channel 10/100Mbps network interface (RJ45) with  lamp
- LCD interface, support resolution up to 800*480 pixels (smooth)
- Provide 2* USB 2 Mbps (12 HOST), support the mouse, keyboard
- Provide 1* USB 2 Device (12 Mbps)
- SD card slot to provide support to the SDIO 4G mode, and supports hot plug, SD card to start
- Standard 20pinJTAG debug interface
- Provide 1 channel SPI multiplexing interface
- Provide 16 *GPIO
- 4*4 matrix keyboard interface
- Support audio input / output
- 1 cahnnel buzzer
- 1* LED system status indicator

Electrical characteristics:
- Ambient temperature: -40 degrees of industrial grade ~+85 ~ C
- Ambient humidity: 0%~90%, non condensing
- Single board power: 1.7W
- Electrical parameters: +12Vx0.14A< loaded 3.5 inch LCD>
- The index system: with CE, FCC, CCC performance index
- Machine size: 106.6 (L) x94.0 (W) mm
- PCB specification: 6 layers

Package included:
- 1 x AT91SAM9261S Developemnt Board
