Auto LCR Meter Digital Bridge Resistance Capacitance Inductance ESR Meter 0.3%

Auto LCR Meter Digital Bridge Resistance Capacitance Inductance ESR Meter 0.3%

Product Details:
- HC HP connect with red clip, LC LP connect with black clip
- The AD converter's words: about 1000 words, by over sampling technology, the effective resolution of about 4000 words
- Measurement methods: quasi bridge measurement, measuring principle is similar to the ratio method for measuring resistance

Fuction:
- Test Parameters: L, C, R, D, Q, ESR
- Equivalent Circuit: Series
- Range Mode: Auto
- Test Speed: Fast: 2.5, medium: 2, Slow: 1 (times / sec.)
- Calibration Function: Auto
- Test Terminal Configuration: The BNC test line
- Display: 2004 LCD

Test Signal:
- Test Signal Frequency: 100Hz, 1kHz, 7.8kHz
- Test Signal Level: 0.2Vrms
- Output Impedance: 40Ω
- Basic Accuracy: 0.3%
- LCR Auto Identification/Manual Measrement
- Open/Short Calibration Compensation

Test Range:
- R: 0.1mΩ — 20 MΩ
- C: 0.1 pF — 200, 000uF
- L: 0.05 μH — 2000 H
- D, Q: 0.001 — 9999

The Main Parameter Display:
- Cp: capacitor in parallel mode
- Cs: series capacitor model
- Lp: inductor in parallel mode
- Ls: series inductor model
- Rp: resistance in parallel mode
- Rs: resistance in series model

Deputy Senate Display:
- Q: The quality factor
- D: loss factor
-θ: phase angle
- Rp: equivalent parallel resistance
- ESR: equivalent series resistance
- Xp: equivalent shunt reactance
- Xs: equivalent series reactance

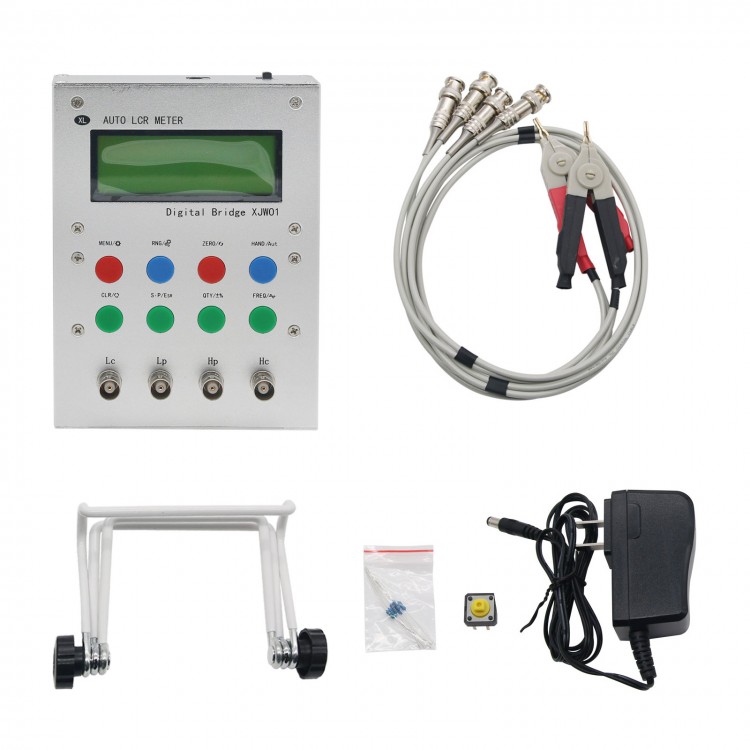

Package Included:
- 1 x LCR Meter
- 2 x Clips
- 1 x Power Adapter
- Other Accessories
 (Please check the parts in the pictures)

Note:
- Capacitance must be discharge before testing.
