LQ-9101 Auto LCR Tester LCR Meter 10KHz Digital Bridge + Kelvin Clip + Test Lead

LQ-9101 Auto LCR Tester LCR Meter 10KHz Digital Bridge + Kelvin Clip + Test Lead

Measurement Source:
- Frequency: 0Hz (DC) 100Hz 120Hz 1000Hz 10kHz; Error ± 100 ppm
- Voltage 0 Hz (DC): 0.56 V ± 5% AC AC RMS: 100 mV 300 mV 600 mV ± 5%
- Internal resistance AC DC Constant 100Ω ± 5%

Basic Accuracy:
- Z / R / L / C: ± reading × 0.2%
- Θ: 100 Hz 120 Hz 1 KHz & lt; 0.005 ° 10 KHz & lt; 0.05 °

Display Range:
- Four significant figures, decimal 0000--9999.
- Impedance / resistance: 0.1mΩ-999.9MΩ (the minimum resolution is only 0.1mΩ, 100mΩ the following three significant figures)
- Inductance / Capacitance: 0.000uH - 999.9KH 0.000P - 999.9mF
- Quality factor / loss factor: Q: 0.0000 --- 99999 D: 0.0000 --- 99999
- Impedance angle θ: -179.99 ° --- 0.0000 --- + 180.00 °

Display Parameters:
- Window 43 × 29 mm Effective display area 37 × 23 mm
- LCD128 × 64 automatic backlight
- The update frequency is 3.75Hz

Measurement Method:
- Automatic range control
  Body clip clip socket: direct four-wire mode
  External test line: external four-wire or two-wire mode
- Measurement results display and model
  Resistance, inductance, capacitance, Q value, D value, phase angle
  Ls (Cs) -Rs-Q model, Lp (Cp) -Rp-D model, Z-theta model
- Measurement Time
  Since the measured components from the start, the main parameters of about 1 second secondary parameters ≥ 1 second

Power Supply and Charging:
- Built-in 3.7V / 450mAH rechargeable
- Single-button press the switch machine
- Under-voltage automatic shutdown 3.55V ± 0.05 V
- Charging power DC5V, Ф3.5mm inside and outside core plug, inside + outside -
- Charging time of about 1.5H - 2.0H cumulative use of time ≮ 8 hours

Power Consumption:
- Maximum operating current of 27mA (dark ambient backlight automatically adjust the brightest, non-test state)
- Basic operating current 23mA (bright environment backlight automatically adjusts the darkest, non-test state)
- Power off state consumption <1uA

Automatic Shutdown Time:
- 15 ± 2 minutes, automatic shutdown time to remind the pre-1 minute
- Short press the power switch to maintain power on, automatic shutdown timer to time. See the user manual for details

Size and Weight:
- 103 × 69 × 24 mm
- 180g

Package Included:

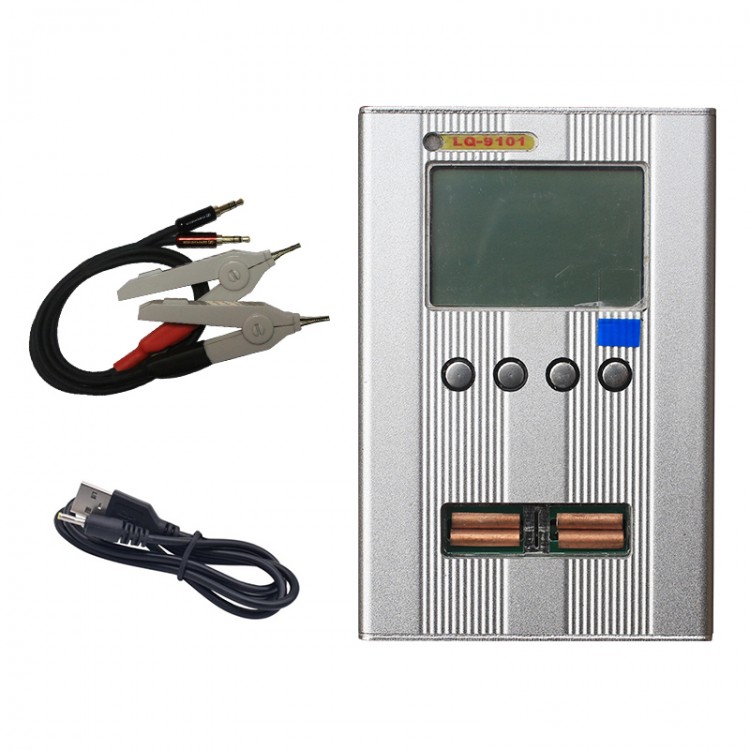

- 1 x Digital Bridge LCR Metetr Resistor Inductance Capacitance Tester
- 2 x Kelvin Clips
- 2 x Test Leads
