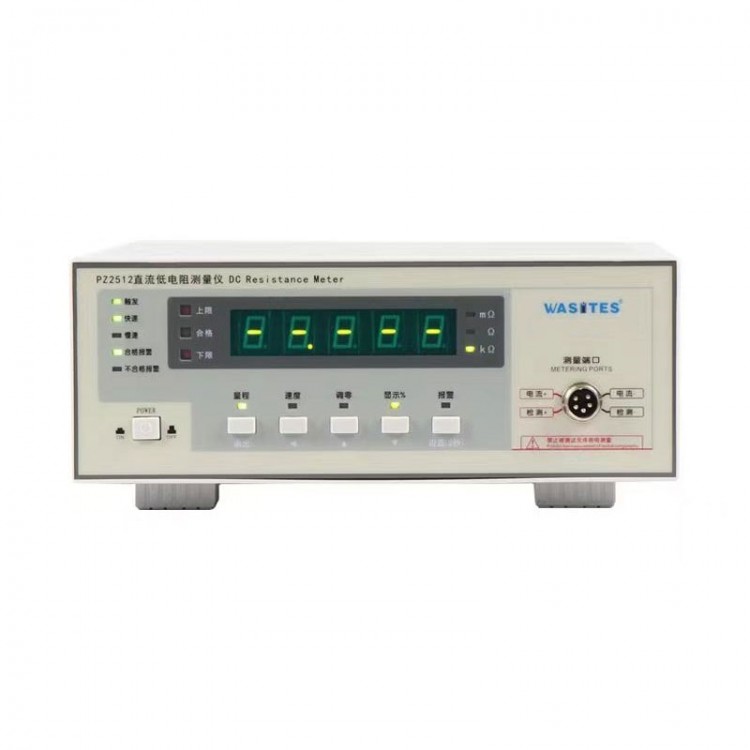

PZ2512 4½-digit DC Resistance Meter 200mΩ/2Ω/20Ω/200Ω/2kΩ/20kΩ Milliohm Meter with Pass/Fail Alarm

PZ2512 4½-digit DC Resistance Meter 200mΩ/2Ω/20Ω/200Ω/2kΩ/20kΩ Milliohm Meter with Pass/Fail Alarm

Description:
The PZ2512 DC Resistance Meter features a 4½-digit LED large display for clear and prominent readings. It uses the four-terminal resistance measurement method to eliminate the influence of lead resistance, ensuring high measurement accuracy. The tester provides fast measurement speed, stable and reliable performance. It includes a comprehensive rapid sorting function, superior performance, and easy operation, meeting the requirements for high-speed measurements on production lines, as well as laboratory and R&D measurements.

This series of digital desktop low-current resistance testers is suitable for measuring various DC resistances that require current limitation, such as platinum resistance thermometers, copper resistance thermometers, PTC ceramic thermistors, thermistors, various resistance alloy wires, motor coils, relay contact resistance, heating wires, transformers, inductor coil copper resistance, switch contact resistance, connector contact resistance, wire resistance, component solder joint resistance, PCB trace and pad resistance, and metal flaw detection. It is widely used in production lines.

Customized measurement functions can also be provided according to customer requirements to meet more advanced applications.

Specifications:
* Model: PZ2512
* Display Type: 4½-digit digital display
* Measurement Range: 200mΩ/2Ω/20Ω/200Ω/2kΩ/20kΩ
* Resolution: 10μΩ /100μΩ/1mΩ/10mΩ/100mΩ/1Ω
* Current Measurement Range: 100mA/10mA /1mA/0.1mA
* Accuracy: ±(0.05% full scale + 2 digits)
* Open-Circuit Voltage: < 4.5V
* Measurement Update Rate: Fast: 32 times/sec, Slow: 8 times/sec
* Operating Environment: 5-40°C, 20%-80% RH (non-condensing)
* Operating Voltage & Power Consumption: 220V±10%, 50/60Hz; optional wide voltage 86-265V
* Accessories: 4-terminal Kelvin clip test leads

Packing List:
* 1 × Main Unit
* 1 × Pair of Test Leads
* 1 × Power Cable
* 1 × User Manual
* 1 × Certificate of Conformity

Packaging Details:
* Weight: 3.77kg
