CXT2516 1μΩ-2MΩ Milliohm Meter DC Resistance Meter Color Screen Supports Temperature Compensation

CXT2516 1μΩ-2MΩ Milliohm Meter DC Resistance Meter Color Screen Supports Temperature Compensation

Features:
- Four-wire detection port: No clearing. Accurate and stable to use
- Sound and light alarm. Three-level comparison function: qualified, over the upper limit and over the lower limit. The audible alarm can be set to: pass, fail and off. The instrument can send out an alarm according to the set parameters: when it is qualified, the green light will be on. When it is unqualified, the red light will be on. Detection is efficient and fast
- USB interface for easy data storage and self-service upgrades. A USB drive can be inserted into the interface and users can store the test results in the flash drive. You can also download the upgrade file for firmware upgrade
- Keypad locking: When the keypad is locked, in addition to normal tests, the key-operated locking can effectively prevent misoperation by unrelated personnel. Press and hold the LOCK button to unlock it
- Abundant interfaces: All models are equipped with HANDLER and RS232 interfaces to achieve remote control and automatic operation
- 32-bit processor
- 24-bit 4.3-inch color LCD screen
- The relative deviation (△%) can be displayed while the direct reading test value is displayed
- Basic temperature accuracy: 0.5°C
- Nine-range automatic or manual test
- Temperature compensation (TC) to compensate for temperature-sensitive material resistance
- The speed of fast testing can reach 20 times/second
- Contact test function: It automatically determines whether the measured ones are connected or not, and automatically reads the stable resistance value
- Weak resistance test does not need to be cleared
- Multiple triggering methods: internal, external and manual
- Real-time recording of the number of qualified/disqualified (pass/fail) products

Specifications (CXT2516):
Measurement Functions:
- Measurement parameter: DC resistance
- Test speed: Fast speed: 20 times/second; Slow speed: 10 times/second
- Test ports: four
- Range switching: Automatic/Lock
- Trigger mode: Internal/external/manual
- Clearing method: self-stabilizing zero, no need to clear (can be cleared if necessary)

Resistance Test:
- Measurement range: 1μΩ~2MΩ
- Test accuracy: ≤ 20mΩ 0.1%; ≤ 200kΩ 0.05%; ＞200kΩ 0.3%

Measurement Method:
- Range: 9 ranges (automatic/lock)
- Display results: direct reading, △%, sorting results
- Display: 4.3" true-color LCD 4½ digit reading
- Correction: Short-circuit clears in full scale
- Comparator: 3 levels of sorting (over the upper limit, over the lower limit and passed)

Comparative Discriminants:
- Signal output: Over the upper limit, qualified and over the lower limit
- Signal: Pass, Fail, Off
- Limit setting method: Absolute upper and lower limit, percentage upper and lower limit + nominal value

Interface & Storage:
- RS232: √
- HANDLER: √
- USB HOST: √
- Temperature compensation:√

Others:
- Temperature and humidity: Temperature: 0°C~40°C; Humidity: ≤ 90%RH without condensation
- Power supply requirements: 198V~242VAC 47Hz~63Hz
- Main unit dimensions: 264 x 108 x 370mm/10.4 x 4.3 x 14.6" (WxHxD)

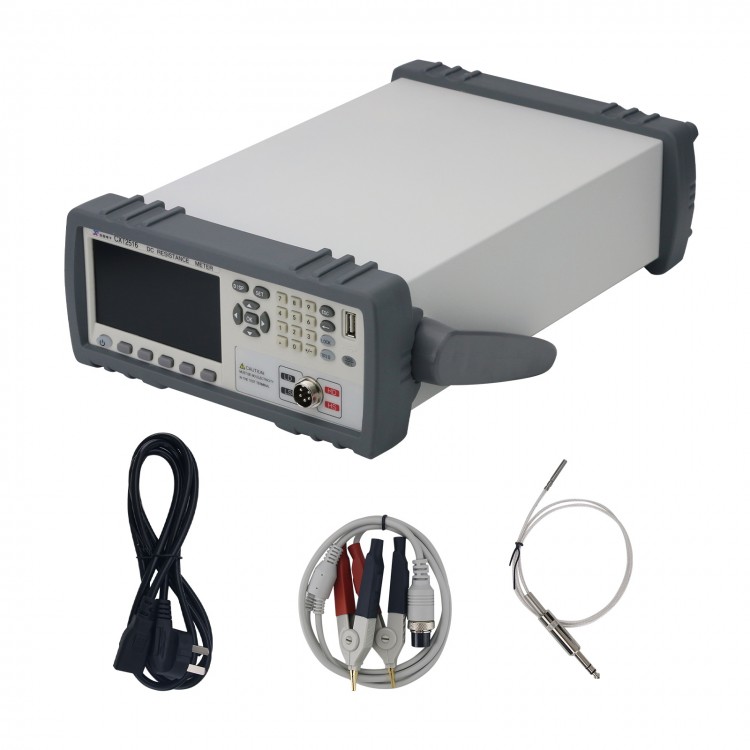

Package Included:
- 1 x Set of DC Resistance Meter
