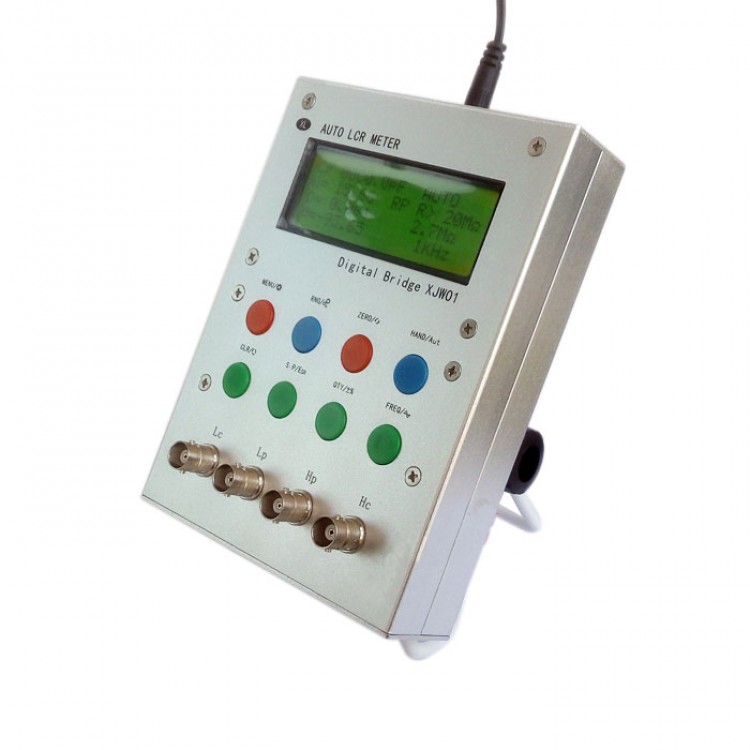

XJW01 Auto LCR Digital Bridge Resistance Capacitance Inductance ESR Meter 0.3%
|
Fuction |
|
|
Test parameters |
L,C,R,D,Q,ESR |
|
Basic accuracy |
0.3%-0.5% |
|
Equivalent circuit |
Series |
|
Range Mode |
Auto |
|
Test Speed |
Fast: 2.5, medium : 2, Slow: 1 (times / sec.) |
|
Calibration function |
Auto |
|
Test terminal configuration |
The BNC test line |
|
Display |
2004 LCD |
|
Test signal |
|
|
Test signal frequency |
100Hz, 1kHz,7.831kHz |
|
Test signal level |
1.75Vrms(max) |
|
Test Range |
|
|
R |
0.0002 Ω — 9.999 MΩ |
|
C |
0.1 pF — 10000uF or more |
|
L |
0.01 μH — 1000 H |
|
D,Q |
0.001 — 9999 |
|
Operating temperature and humidity |
0°C－40°C, |
≤90%RH |
|
|
Power |
voltage |
AC110V or 220v to DC 9V |
|
|
|
Frequency |
50Hz |
|
|
Power consumption |
≤0.45W |
||
The main parameter display:
Cp: capacitor in parallel mode
Cs: series capacitor model
Lp: inductor in parallel mode
Ls: series inductor model
Rp: resistance in parallel mode
Rs: resistance in series model
Deputy Senate display:
The quality factor Q
D: loss factor
Theta: phase angle
Rp: equivalent parallel resistance
ESR: equivalent series resistance
Xp: equivalent shunt reactance
Xs: equivalent series reactance
