AWC7824K 4-Axis CNC Motion Controller AWC7824K LITE with Touch Screen Replaces AWC708CLITE AWC708S

AWC7824K 4-Axis CNC Motion Controller  AWC7824K LITE with Touch Screen Replaces AWC708CLITE AWC708S

Features:
- It adopts 4.3-inch true color touch screen, supporting button and touch control, and has a strong operating feeling;
- The new 32-bit high-speed DSP is adopted to make the system run faster and more stable;
- Simple and easy to operate, saving time after training;
- Preview file offline in U disk, real-time display of laser head motion trajectory;
- Equipment parameters can be set completely away from PC;
- Optocouplers completely isolate external electromagnetic interference, with strong anti-static performance, making the system work more stable and reliable;
- Support multiple languages;
- Support USB2.0 high-speed interface. U disk reading and writing files are more stable. It can identify U disks of various brands;
- Support network and USB communication, with faster and more stable transmission speed;
- Support Z-axis autofocus, Y at Z-axis dual-drive control, dual-head mutual shifting;
- Support three different blowing types, namely whole-process blowing, blowing when there is laser light and layer blowing;
- Intelligent diagnosis of the fault of the system itself;
- One-click switch to manually move the axis;
- A variety of humanized positioning mode and return mode, convenient for customers with different habits to operate the machine;
- One-key continuous cutting, convenient for the processing of files to continue to connect and cut after any interruption;
- When debugging the cutting effect, the setting parameters are few, and it is user-friendly;
- Support Y-axis drum cutting, convenient for processing the whole bundle of tape materials;
- A variety of humanized automatic feeding;
- Support over-format cutting and mirror cutting;
- Support dispensing and line drawing.

Specifications:
- Replacing models: for laser machine control systems with single and double laser heads, such as AWC708CLITE and AWC708S
- Power supply: DC24V, 3A
- Universal input: 6CH Universal Optoelectronic Isolated Inputs
- Universal output: 8CH Universal Optoelectronic Isolated OC Gate Output
- Number of control axes: X, Y, Z and U axes
- Controlled laser number: double head
- Supported lasers: CO2 glass tube and RF tube
- Laser energy control: 0-100% and 0.1% continuously adjustable
- Accuracy: ± 0.01 mm
- Support graphics formats: G-code, AI, SVG, PDF, DXF, PLT, DST, DSB, UD5, BMP, JIF, JPG, PNG, etc.
- Supported software: for LaserCAD and lightburn (supporting plug-ins for CORELDRAW, AUTOCAD and Adobe Illustrator)
- Supported Systems: for Windows OS (for Window XP, Vista, Win7, Win8 and Win10)

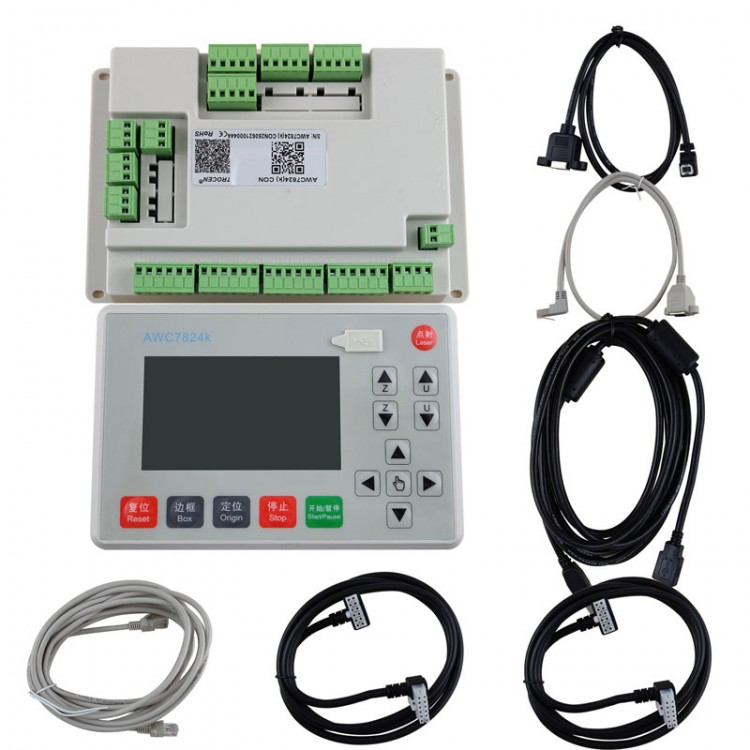

Package Included:
- 1 x Panel
- 1 x Mainboard
- 2 x CN cables
- 1 x Network extension cable
- 1 x USB extension cable
- 1 x USB cable
- 1 x Network cable
- 2 x Screws
