| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $55.51 | $54.37 | $52.68 | $50.41 | Contact US |

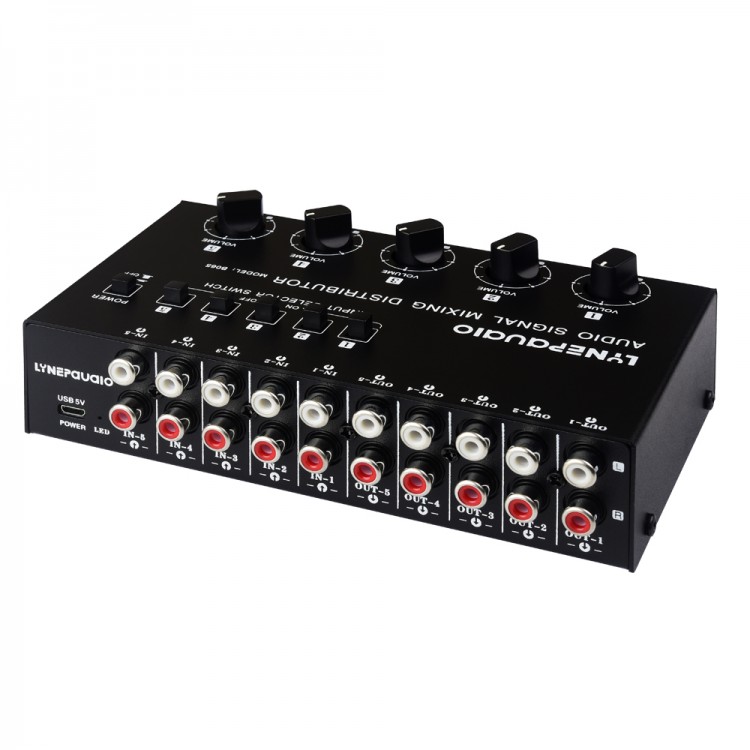

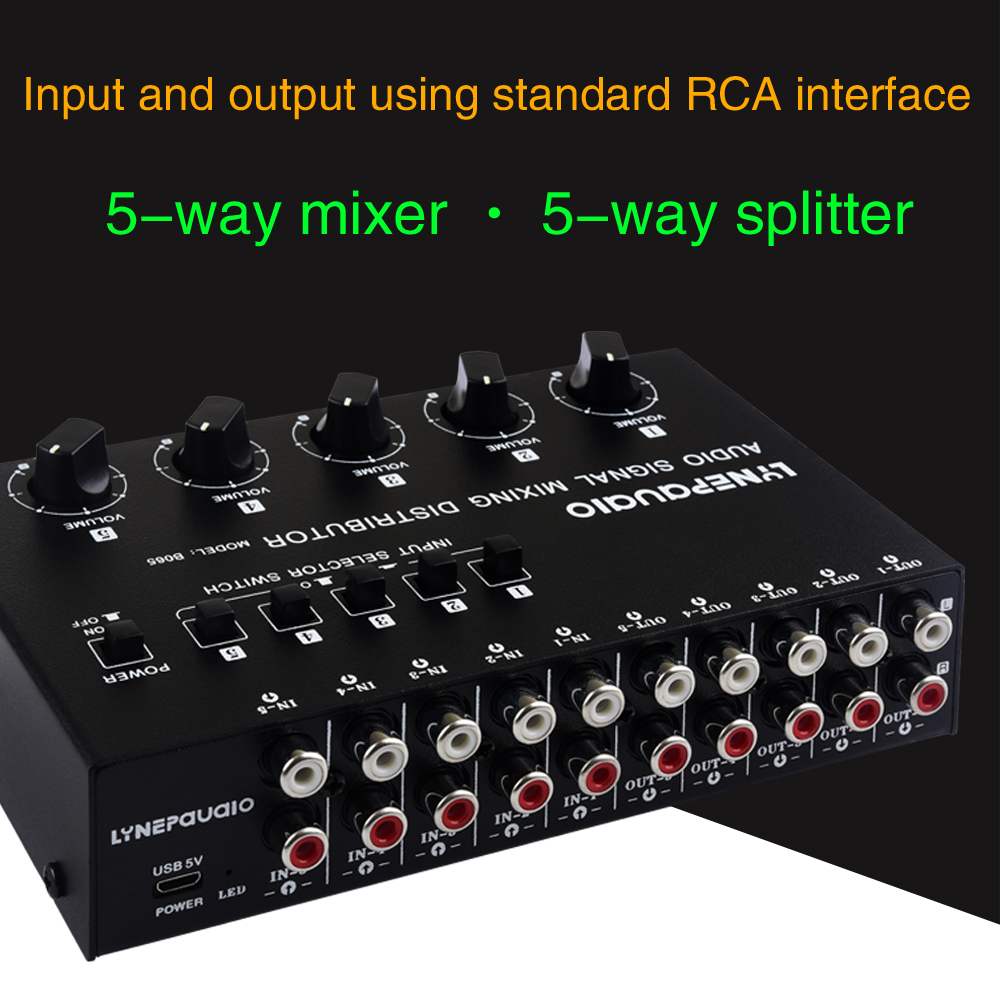

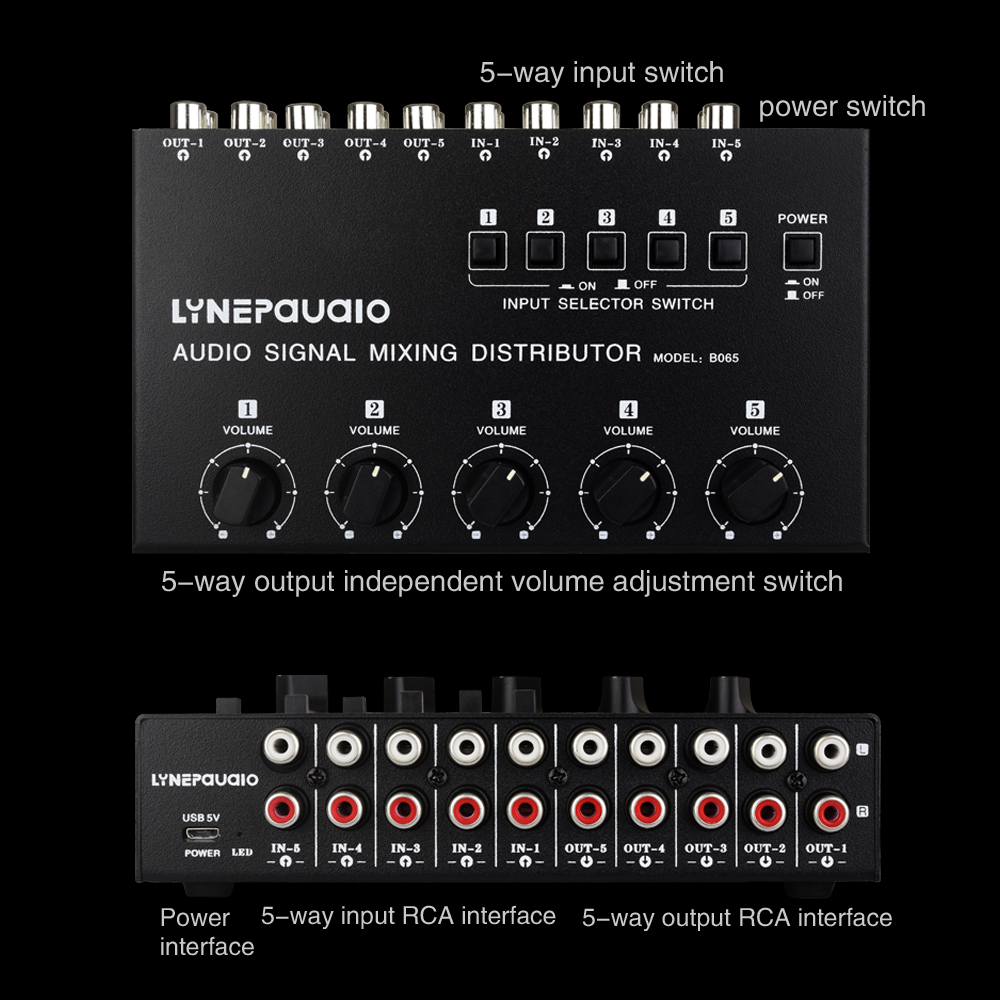

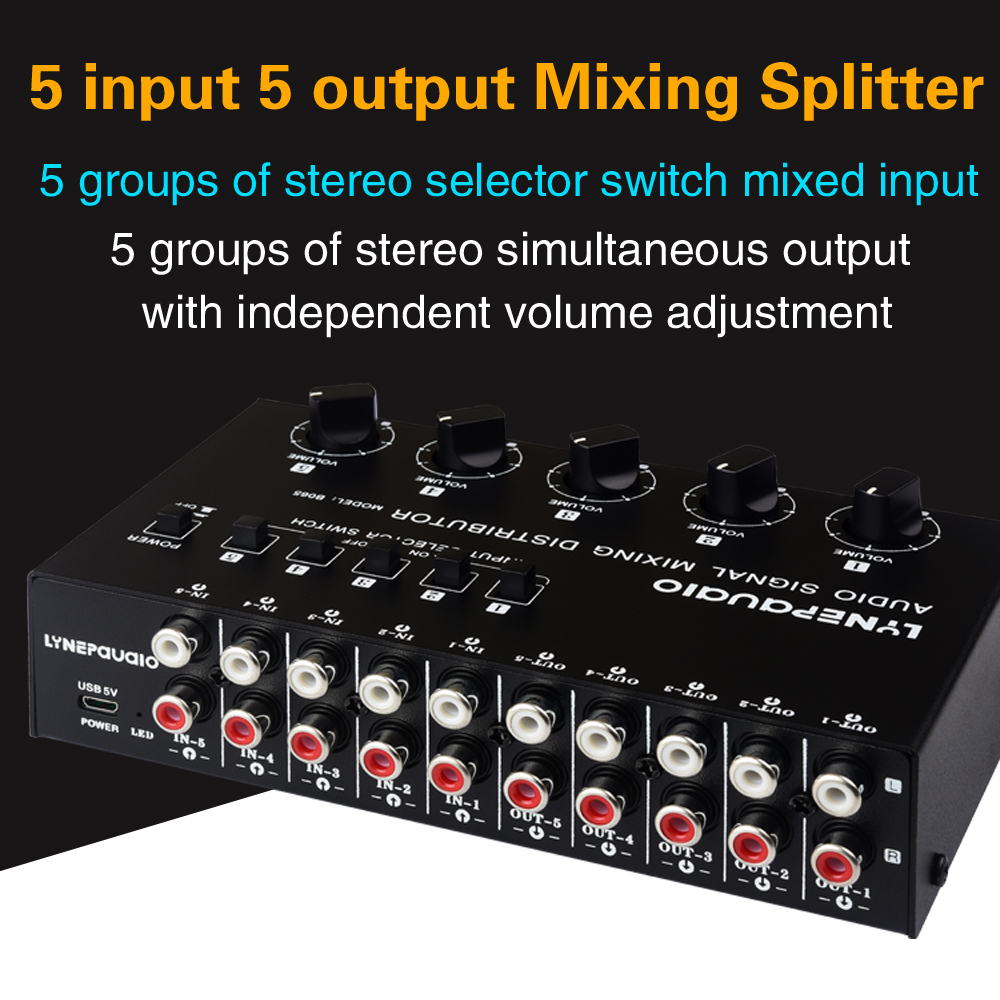

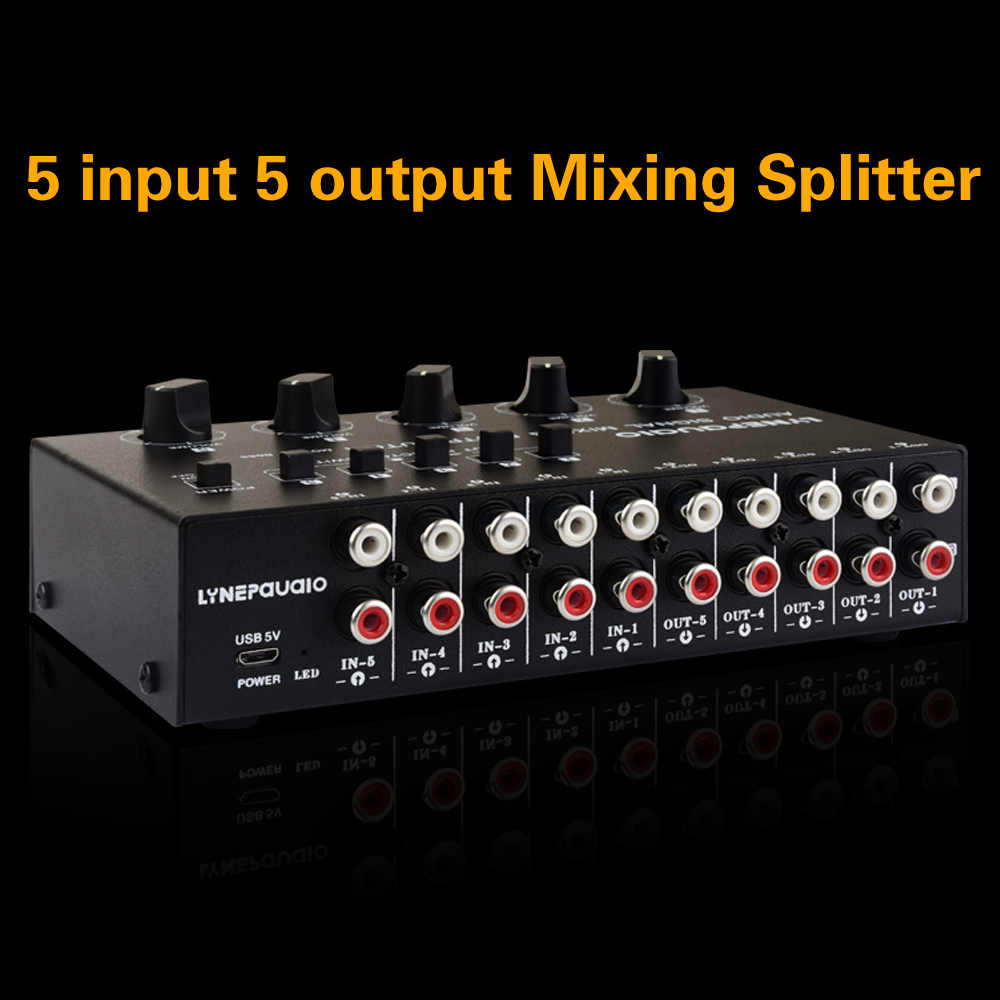

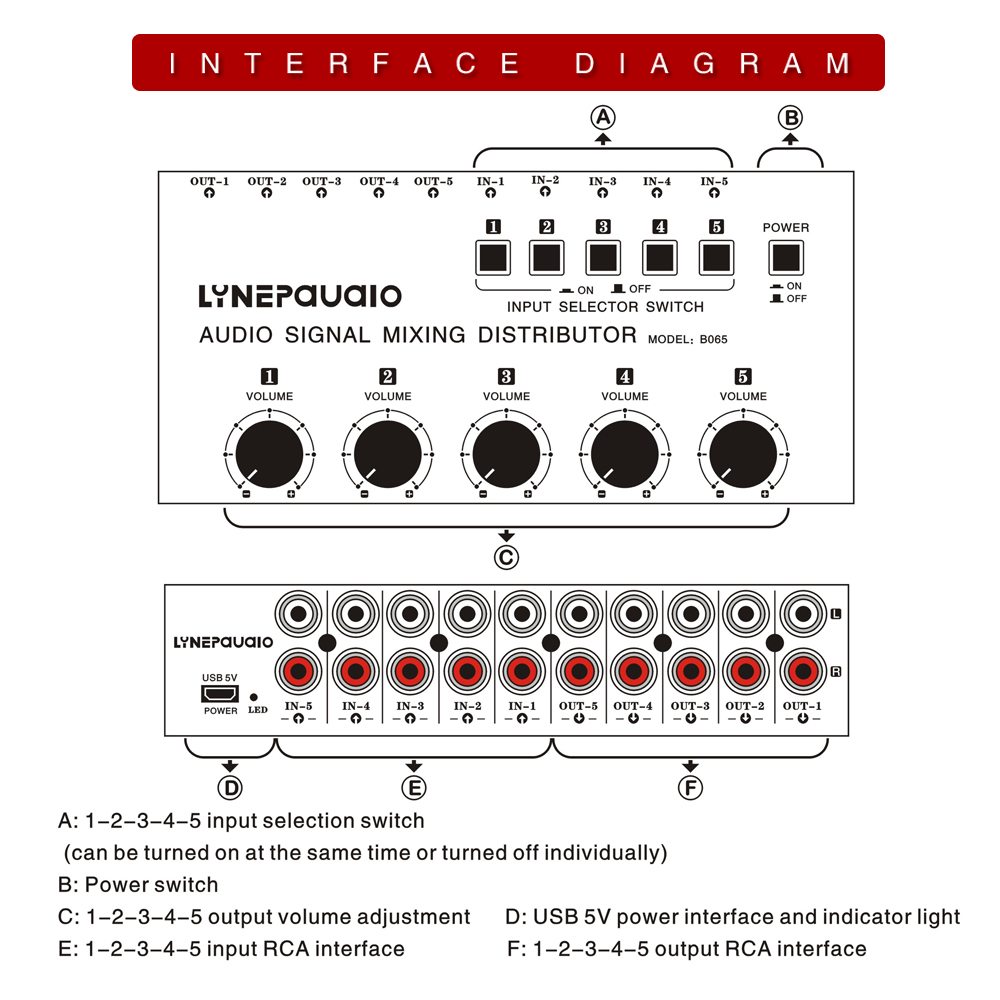

B065 5 IN 5 OUT Audio Selector Audio Signal Mixing Distributor Independent Volume Control RCA Ports
Features:
- 5-Input and 5-output mixing splitter
- 5 groups of stereo selector switch mixed input
- Mixed inputs can be turned on at the same time or turned off individually
- Support 5 groups of stereo simultaneous output with independent volume control
- Output ports connect to power amplifiers, active speakers, and preamplifiers
- Steel shell and compact size make it fit any system and all types of playing devices
- Input and output adopt standard RCA ports
- USB 5V powered; plug and play
- Lossless input and output
- Active design architecture
Specifications:
- Input channel: support 5 groups of stereo mixed input
- Output channel: support 5 groups of stereo output (can be output at the same time)
- Input switching: 2-gear self-locking switch
- Output gain: +15dB
- Output loss: < 0.01dB
- Input impedance: 10KΩ-50KΩ
- Output impedance: 10KΩ-50KΩ
- Input and output interface: standard RCA interface
- Appearance material: metal shell
- Power supply: USB-5V power supply; plug and play

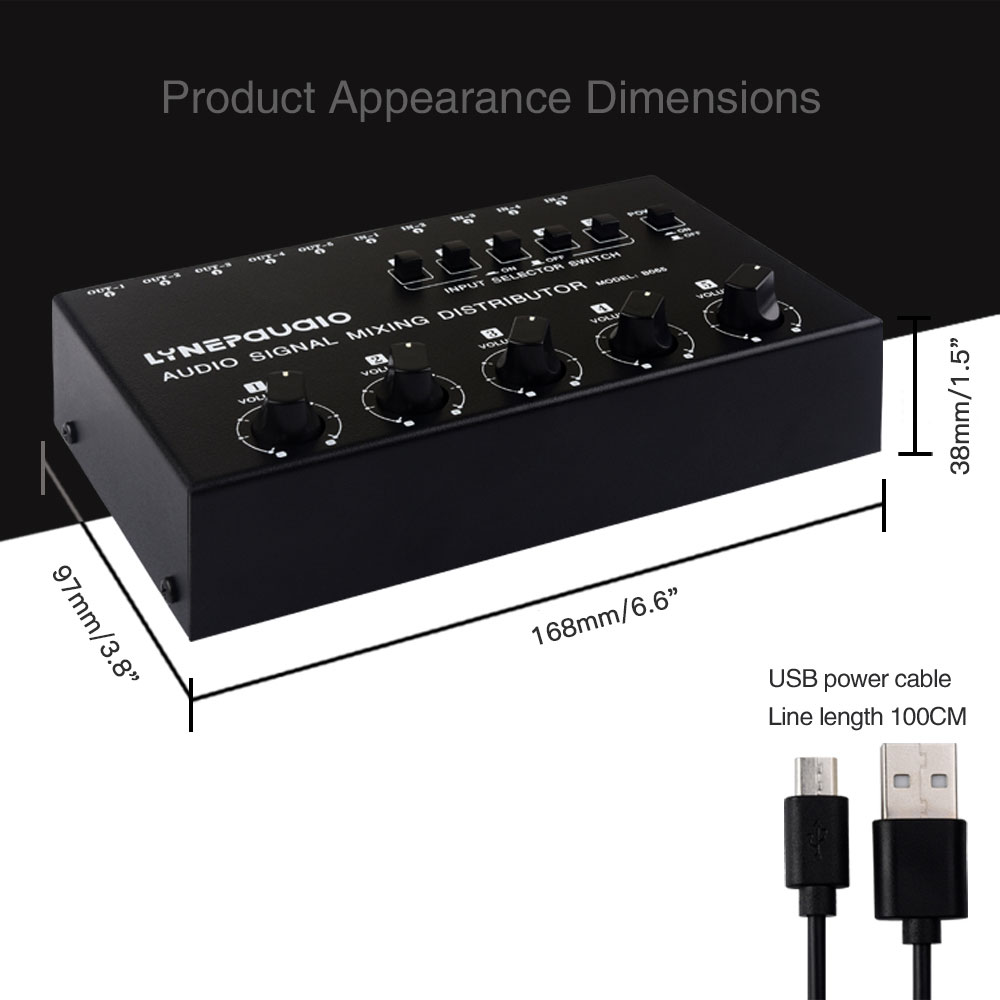

- Dimensions: 168 x 97 x 38mm/6.6 x 3.8 x 1.5" (LxWxH)
- USB power cable: 100cm/39.4"
- Net weight: 530g/1.2lb
Package Included:
- 1 x Mixing Distributor
- 1 x USB Power Cord
Note:
- RCA cable is not included.
