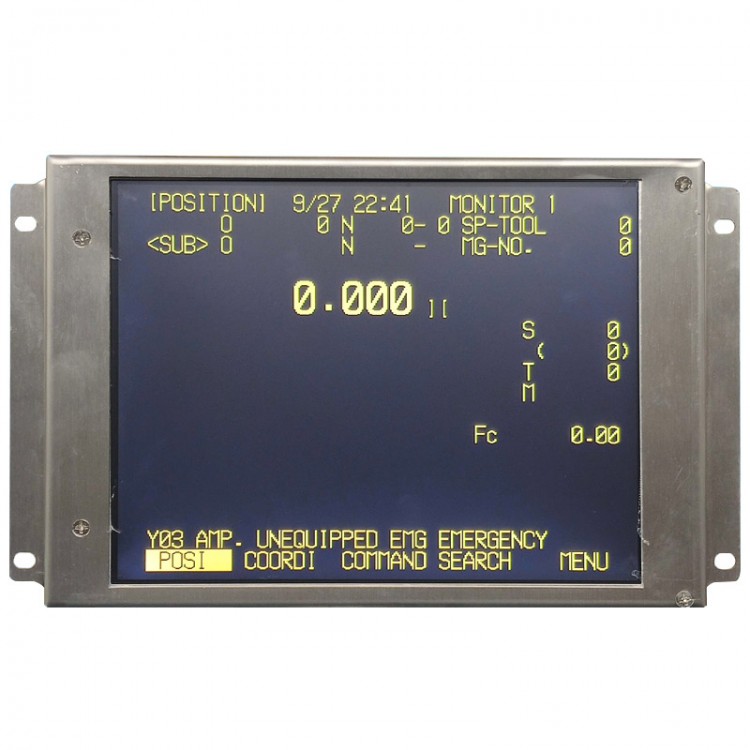

BKO-NC6212 LCD Display 9 Inch CRT Monitor Operating Panel for M50 M64 M64S E60 E68 CNC System

Availability: In stock, usually dispatched in 1 business day

  • Price:$179.27
  • Price in reward points: 1793 Reward Points: 18
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $175.68 $172.10 $166.72 $159.55 Contact US
Quantity:

BKO-NC6212 LCD Display 9 Inch CRT Monitor Operating Panel for M50 M64 M64S E60 E68 CNC System

Features:

1. The CRT (picture tube) size is 9 inches, the viewing angle is 90 degrees, and the neck diameter is 20mm. Explosion-proof standard is T-band standard.
2. Signal input, video analog signal (positive) 0-2.3V. Horizontal synchronization, TTL digital signal (positive polarity); step mode vertical synchronization, TTL digital signal (positive polarity).
3. Scanning frequency, line frequency H=24Khz, field frequency V=50.5Hz.
4. Video display size: horizontal is 160mm +/-3mm, vertical is 110m +/-3mm.
5. Signal input: VIA standard 10 PIN EDGE connector.
6. Suitable for Mitsubishi M50, M520, M64, M64S, E60, E68, etc. system.
7. It can replace MDT962B-1A, MDT962B-2A, MDT962B-4A, BM09DF, MDT947B-1A,  MDT947B-2A, etc. display.

Package List:
1 x BKO-NC6212 Display
