BLDC-8015A+57BLF03 Brushless DC Motor Nema23 188W 24V Router Milling DRIVER

BLDC-8015A+57BLF03 Brushless DC Motor Nema23 188W 24V Router Milling DRIVER

This item includes:

1pc

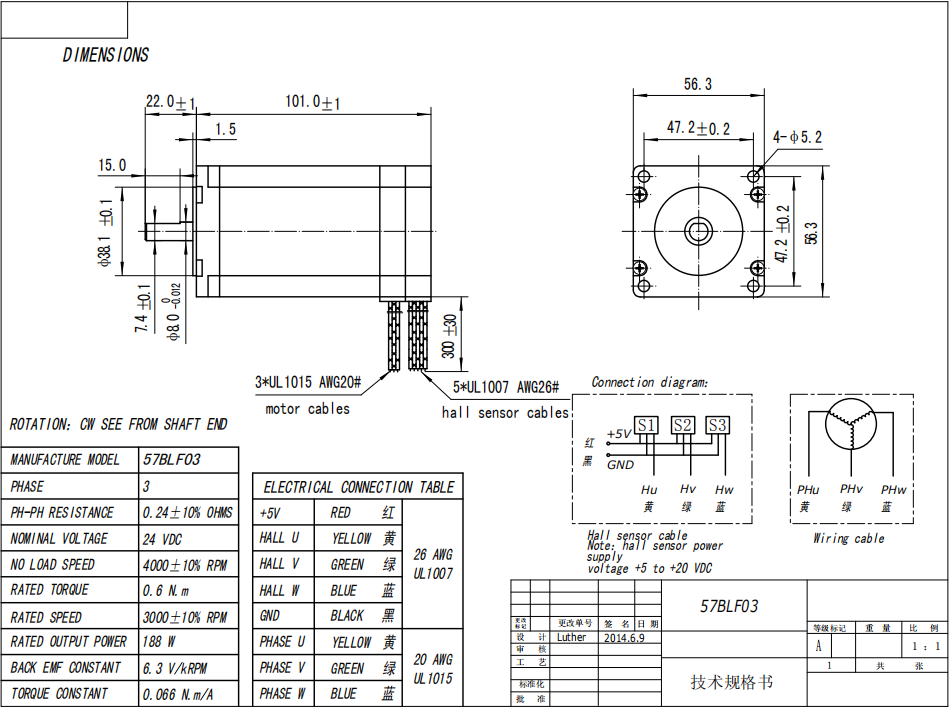

57BLF03 Nema23 Brushless DC motor for car 3Phases,188W/24V 3000rpm LONGS router

1pc Brushless DC Motor Driver BLDC-8015A 5000RPM peak Speed, 80VDC,3phases

1.Brushless DC Motor

2.Brushless DC motor driver BLDC-8015A Features ● SPWM，Speed/Current alike close loop technology, smooth rotation l   Smooth torque output within speed range (8000 rpm Max.) l   1：75 Max. speed regulation ratio l   60°/300°/120°/240°Electrical angle adjustable l   Speed regulation： potentiometer adjust / Analog input l   Run/Step、Quick Brake、CW/CCW rotation shift l   Speed output、Alarm output（O.C.） l   Over current、over voltage、stall、missing speed Alarm Parameters Electrical Parameters（Tj＝25ºC） Power 24～50VDC, Capacity：up to motors Current output Rated 15A，Peak 45A（≤3s） Driving mode SPWM Insulation Res. ＞500MΩ Dielectric Strength 500V/Minute Weight About 300g Ambient requirement Cooling Self cool Environment Keep away from oil, dust, and acid gas Temperature 0ºC～＋50ºC Humidity ＜80％RH Vibration 5.7m/s2。Max. Storage temp. －20ºC～＋125ºC Function description Power Supply: DC+ ; DC- Voltage: 24～50DC，normally Linear Power Supply applied（appendix），ripple voltage higher than 50V may damage driver. The output current of LPS shall be 60％more than that of driver. In case of switching power supply(strongly recommended)applied, please pay attention to the current shall meet motor’s current. Attention: incorrect connection may cause driver damaged. Speed regulation choice(RV ; AVI) 1.   Setup speed by potentiometer (RV).The dipswitch SW2 must be ON status to enable this function. CW rotate the potentiometer will increase speed. CCW- speed down. 2.  Setup speed by analog input (AVI). The dipswitch SW2 must be OFF status to enable this function.。AVI terminal accept 0～5V voltage or PWM signal from controller。AVI terminal with input resistance of 100K，current consumption≤5mA。 Reference table SW2 Command to Speed adjust Comman Current ON RV CW—speed up，CCW—speed down － － OFF AVI 0～5V analog input 0～5V volage All Reviews (0) Write a review Your Name Your Email Note: We will keep it confidential. Your Review Note: HTML is not translated! Rating   Captcha Enter the code in the box below Continue
