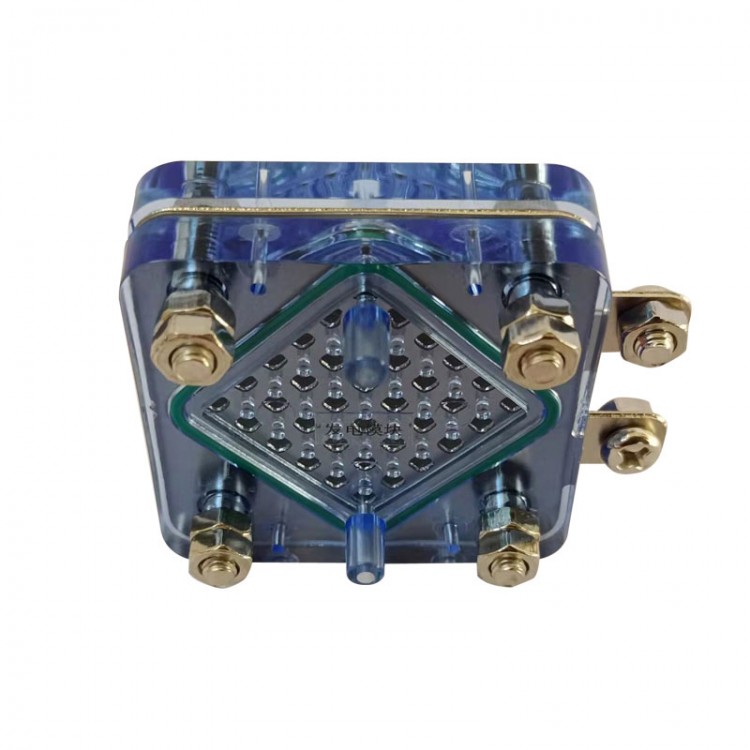

Blue Fuel Cell High Quality Power Generation Module Air-breathing Fuel Cell Teaching Instrument
Specification:
- Electrolysis material: Single MEA
- Size: 56.8 x 30 x 46.5mm
- Weight: 63g
- Power generation area: 25 x 25mm
- Voltage range: 0V - 0.95V
- Current: 1.0A at 0.6V (25℃)
- Negative fuel: 99.99% Hydrogen
- Positive fuel: Air
- Environment temperature: -10℃ - 40℃
- Service life: > 1000 hours
Using steps:
- Connect H2 through the intake port on the negative electrode of the fuel cell, exhaust the air inside the fuel cell, and then block the lower outlet port
- Turn on the load
- Open the hydrogen gas outlet every 60 seconds to discharge water vapor and then block it.
Precaution:
- The negative electrode of the fuel cell has two ports (upper inlet and lower outlet).
- The negative electrode is connected to hydrogen gas, and the positive electrode of the fuel cell is connected to the atmosphere.
- Short-circuit operation is forbidden.
- It is not possible to connect external voltage at both ends of the fuel cell voltage.
- Long term operation of both positive and negative electrodes will produce liquid water. An air compressor or needle cylinder can be used to drain the liquid water by pressure.
Package Included:
- 1 x Fuel Cell
