Boost Buck DC-DC Adjustable Step Up Down Converter XL6009 Power Supply Module 5-32V to 1.2-35V

Availability: In stock, usually dispatched in 1 business day

  • Price:$4.03
  • Price in reward points: 40
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $3.95 $3.87 $3.75 $3.59 Contact US
Quantity:

Boost Buck DC-DC Adjustable Step Up Down Converter XL6009 Power Supply Module 5-32V to 1.2-35V

Description:

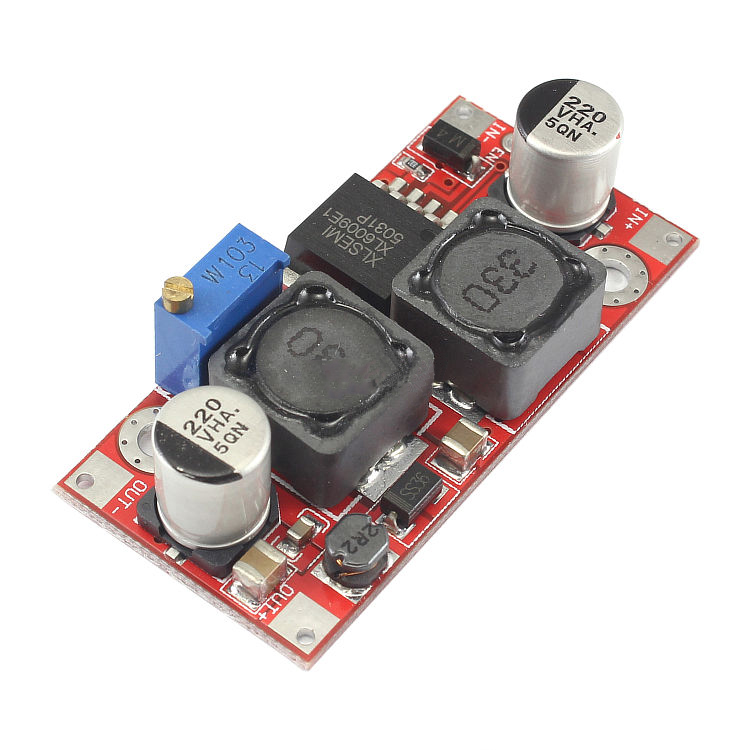

1: The new original XLSEMI chip, eliminate fake, disassemble chip.
2: Imported SMD electrolytic capacitors, not accompanied by homemade capacitance.
3: Up to 400KHz operating frequency, and LC filter circuit, output ripple is very low.
4: Import TDK inductors, the heat and noise to a minimum.
6: Input and output three MLCC Multilayer ceramic capacitors, interference enhance stability.
7: PCB use kb of A grade sheet material, to prevent cardboard, garbage plate.
8: Built-in MOSFET, the LM2577 built-triode say goodbye, can reach 94% efficiency.
9: Increased enable the port, you can control whether the boost circuit.
10: Dimensions: 49 (L) * 23.4 (W) * 11.4 (H) mm (excluding potentiometer)

Parameters:

- Module Properties: non-isolated step-up & down module (BOOST & Buck)
- Input voltage: 5-32V
- Output voltage: (1) continuously adjustable (1.2-35V)
- Output Current: 1.5A (MAX)
- Input Current: 4A (MAX)
- Output power: natural cooling 20W, plus heat sink 25W (MAX) real power
- Maximum output power = input voltage conversion efficiency * 4A *conversion efficiency
- Output Ripple: input 12V, output 24, 0.5A ripple 30MV, 20M bandwidth (for reference only)
- Operating Temperature: industrial grade (-40℃ to +85℃) (When the ambient temperature exceeds 40 degrees, please reduce the power, or enhance heat dissipation)
- Full-load Temperature Rise: 45℃
- Working Frequency: 400khz
- No-load current: typical 15mA (5V to 12V)
- Load adjustment rate: ±0.5%
- Voltage regulation rate: ±0.5%
- Dynamic response speed: 5% 200μS
- Enable control port: Yes, high level 1.4V-VIN(ON), low level 0-0.8V (OFF), default high level
- Short circuit protection: none (please install fuse or protection circuit at input)
- Input reverse connection protection: None, please use reverse protection board or input series diode.
- Installation method: can be screwed (fixed hole 3 mm), 2 fixing holes
- Wiring method: soldering, soldering directly to the PCB after adding pins

Package Included:
- 1 x Boost Buck DC-DC Module
