Boscam FR632 5.8GHz 40CH Wireless Diversity AV FPV Receiver Auto Scan LCD Rx for Quadcopter Drone

Boscam FR632 5.8GHz 40CH Wireless Diversity AV FPV Receiver Auto Scan LCD Rx for Quadcopter Drone

English manual: click here

Specification:
- Receiving frequency : ISM 5.6GHz-5.95GHz 40 CH
- Operating voltage : +6.0V~+28.0V
- Supply current: <130mA/12V DC
- Video output level : 1V±0.2Vp-p/75Ω
- Audio output level : 0.5 ~ 2.0Vp-p/10KΩ
- Outputs : RF1, RF2, Diversity
- TV system: PAL/NTSC/SECAM (AUTO)
- Wireless receiver sensitivity : <-92dBm(15dBuV)
- Antenna connector : SMA connector
- Weight: 92g
- Dimensions (L x W x H): 78x68x15mm
- Operating temperature : -10 ~ +85 deg C

Features:
- 40 Channels
- Automatic Switching Built-in Dual Receiver Automatically for best reception.
- Unique channel search function.
- Large input voltage range, Very low current consumption.
- Not affect by 2.4GHz R/C Radios.
- LCD display, high brightness, very intuitive work status.
- Auto channel scan and lock on.
- True 5.8GHz 40CH diversity system with indicator.
- Diversity and A B A/V.
- Back light LCD.
- REV1.3 version

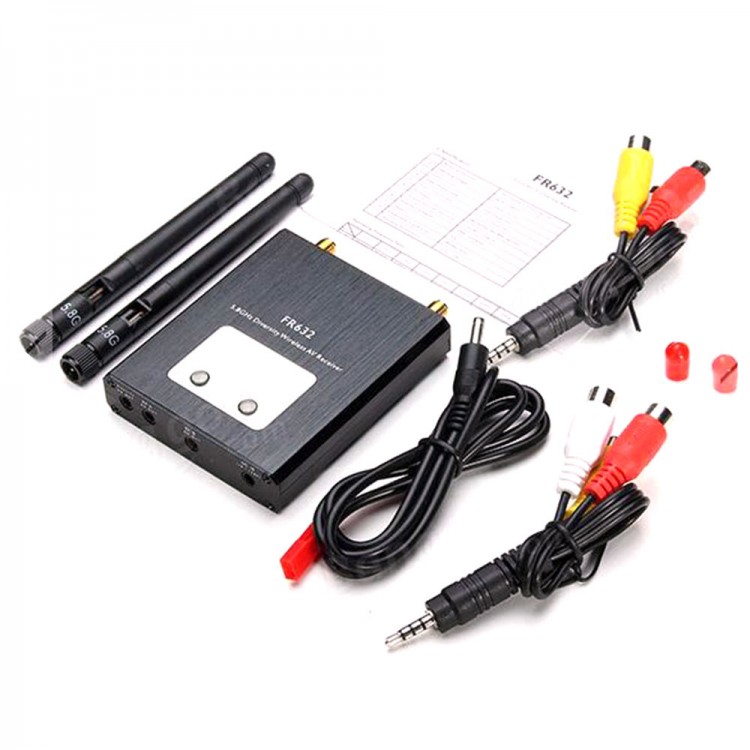

Package included:
- 1 x FR632 receiver
- 1 x Power and A/V cables
- 2 x dipole antennas
- 2 x RCA cable
- 1 x Manual
