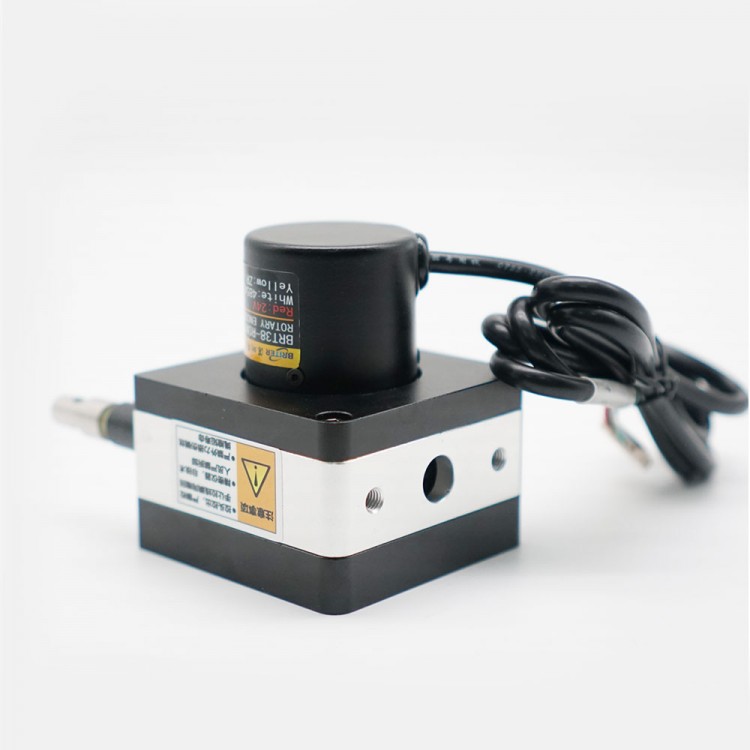

BRITER 5000mm/16.4ft Cable Displacement Sensor with Absolute Encoder 10Bit RS485 Communications

BRITER 5000mm/16.4ft Cable Displacement Sensor with Absolute Encoder 10Bit RS485 Communications

Description:
The cable displacement sensor is small in size and it is easy to install and use. Reliable operation is enabled. The displacement sensor is cost-effective, thus it is the ideal solution for linear positioning and travel displacement feedback.

Features:
- Self-developed encoder and RS485 output
- With an absolute encoder, it can save parameters when it is powered off
- CNC machining structural parts ensure accuracy
- Internal metal gears and metal reel
- Steel rope is durable: 0.8MM wire diameter. Imported soft stainless steel rope with small friction and strong wear resistance
- Ceramic outlet: Made of ceramic material, it boasts small friction and enhances the service life of steel rope
- It can be fixed by its special pull head. Ultimate tensile test of the pull head has been carried out. Test results show that the product only comes off when using 10 times more pull than its peers
- Permissible declination 15°: The outlet allows an angle of 15° in the circumferential direction of the outlet
- High precision: Linear accuracy of ±0.1% and repeatability accuracy of ±0.01%
- Precise cable arrangement: The interior adopts metal winding wheels and the cable is arranged in a precise way and does not overlap
- It can be used over 5 million times
- Strong anti-interference performance: With double-layer magnetic shielding, it has passed the EMC test
- Pull head comes with M5 screw hole. Its custom fluoroelastomer cushions effectively cushion the impact of the pull-back process
- Free host computer software: Parameters (such as baud rate, ID and return mode) can be set through the software
- Supported acquisition equipment include PLC, recorder, MCU, computer and serial port screen
- It supports PLC on the market. It fits PLC for Siemens, Xinjie, Omron, Mitsubishi, Delta, etc. It supports PLC with a RS485 interface. Detailed connection example tutorials and professional PLC technical support are provided
- The sensor has passed tests before delivery

Specifications:
- Range: 5000mm/16.4ft
- Output signal: RS485 digital signal
- Linearity: ±0.1%
- Resolution (1024): 0.244mm/0.01"
- Wheel circumference: 250mm/9.8"
- Weight: 868g/1.9lb
- Uses: More than 5 million times
- Outlet pull: 2~3N
- Maximum working speed: 1m/s
- Electrical connection cable: 1.2m/3.9ft
- Operating temperature: -40°C to +85°C
- Cable box material: aluminum alloy (surface anti-static interference) and stainless steel pull head
- Rope material: imported steel wire
- Cable diameter: 0.8mm

Package Included:
- 1 x Cable Displacement Sensor
- 1 x Product Quality Certificate

Wiring:
- Red: power supply +
- Black: 0V (GND)
- Yellow: Zero (ZR)
- Green: RS485B
- White: RS485A

Attention:
1. When the yellow wire is grounded above 100MS, the encoder position value returns to zero;
2. Under normal circumstances, RS485 yellow line is not connected. If there is a demand for zeroing, the yellow cable should be connected;
3. Avoid the yellow line touching the red line, because this will cause a short circuit and disable communication;
4. After the pull head is pulled out, it is strictly forbidden to let the pulling cable retract instantly;
5. Non-technical personnel are strictly prohibited to disassemble this product. If necessary, disassemble and reinstall under the guidance of a technician.
