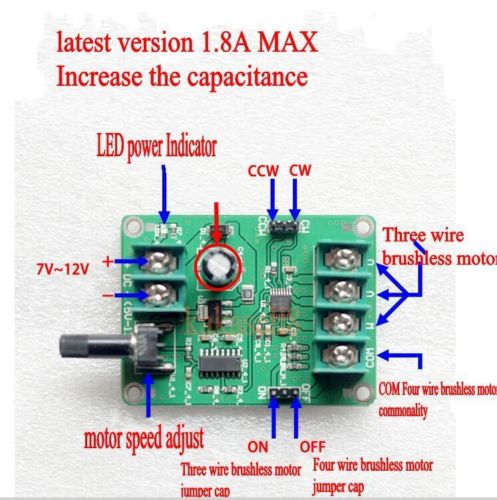

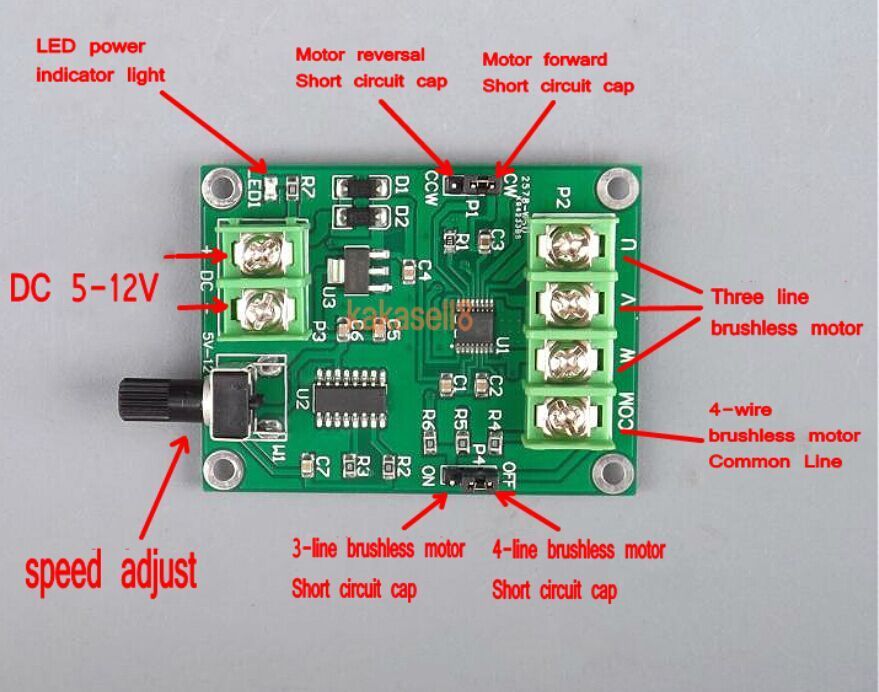

Brushless Motor Driver Board DC 7V-12V Controller for Hard Drive Motor
Description:

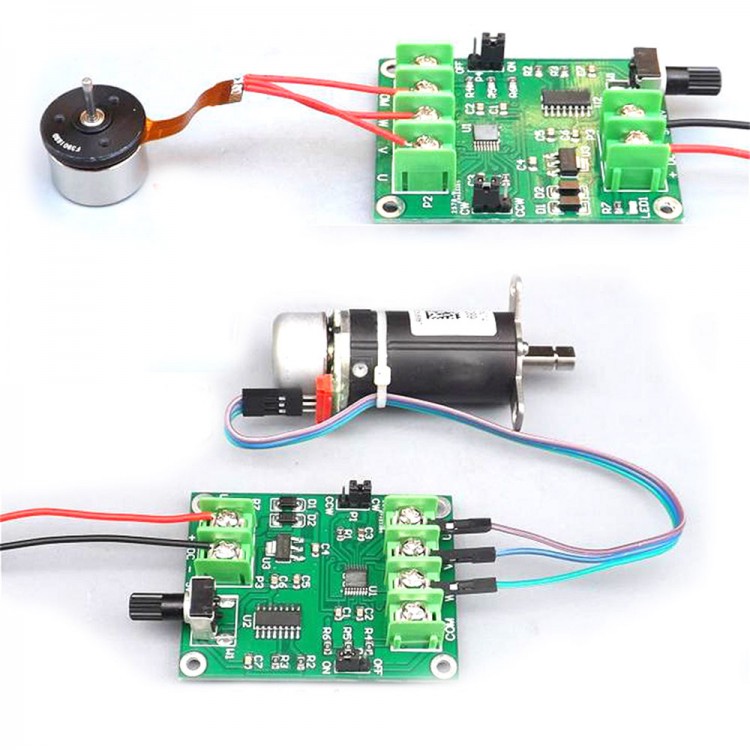

The Motor driver board can drive hard disk brushless motor ,CD-ROM brushless motor and so on the micro 3-wire or 4-wire without hall brushless motor ,
it's have reverse voltage protection , Over current protection , Phase inversion control
Specification:
- Driver voltage : DC7-12V
- Working voltage : ≤1.8A
- Speed adjust :0%-100%
- Phase inversion control: Yes
- Voltage anti connection protection: Yes
- Over current protection: Yes
Note : Brushless motor line of receiving terminal drive plate must be pressed sturdiness, poor contact will lack of phase operation and burn out the chip.Board terminals fixed screw clearance, please use coarser line connected to the board.
How to identify four line motor public port: use the resistance of the multimeter * gears test this four terminal , One of the terminals and the other three terminal resistance value of the minimum and equal ,
so it's COM terminal ,
Package include :
- 1 x 5V-12V DC Brushless Motor Driver Board Controller
