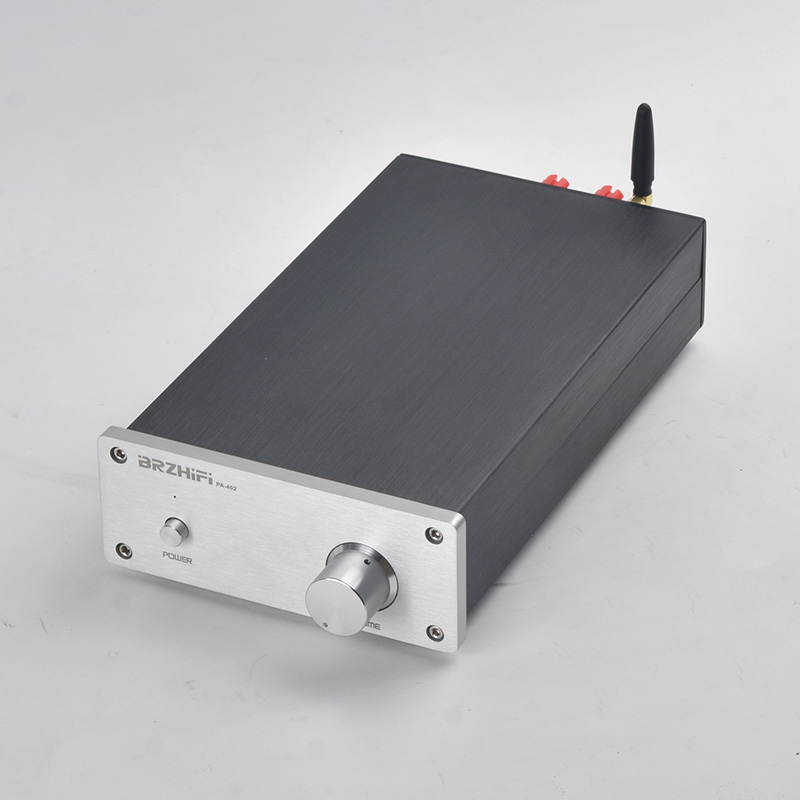

BRZHIFI PA-402 Thick-film STK402-240 Bluetooth5.3 High Performance Power Amplifier Desktop Audio Amplifier
Description:
- STK402-240 is a high-end audio power amplifier chip for Sanyo, with its core advantages being ultra-low distortion of 0.01% and superior performance. From the parameters, it has been measured to have a thrust equivalent to Class D 100W with an output power of 25W/8Ω, benchmarking against thousand yuan grade finished power amplifiers. It features a sound style that combines the taste of a gallbladder machine and Class A control power, with a rich and full mid frequency, delicate vocal reproduction, and a warm texture of a gallbladder machine. The high-frequency extension is smooth and not harsh, and the low-frequency diving has elasticity. Its dynamic performance is better than traditional Class A and B power amplifiers, and it is suitable for driving 3-5 inch bookshelf boxes or monitoring speakers.
Features:

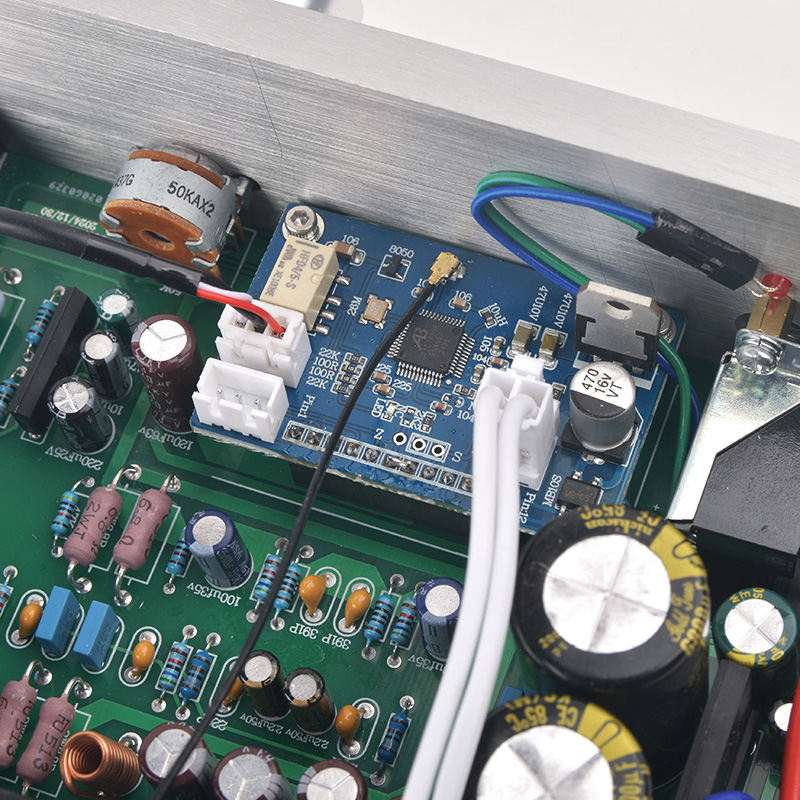

- This machine is developed and produced according to standard products, and all components are original and genuine. It is equipped with Bluetooth5.3 chip for BLUETRUM to achieve wireless music playback with various portable products. This machine is directly powered by a 220V power supply, making it convenient to use. The all aluminum chassis is finely crafted while ensuring good heat dissipation.

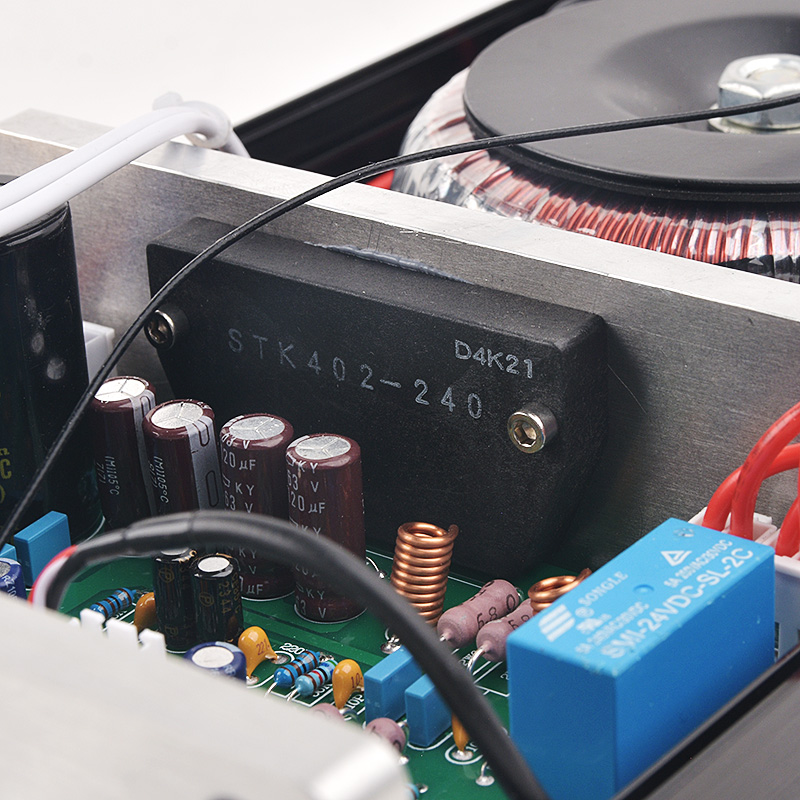

- Adopts the brand new original genuine STK402-240 chip for Sanyo, with harmonic distortion as low as 0.01%.

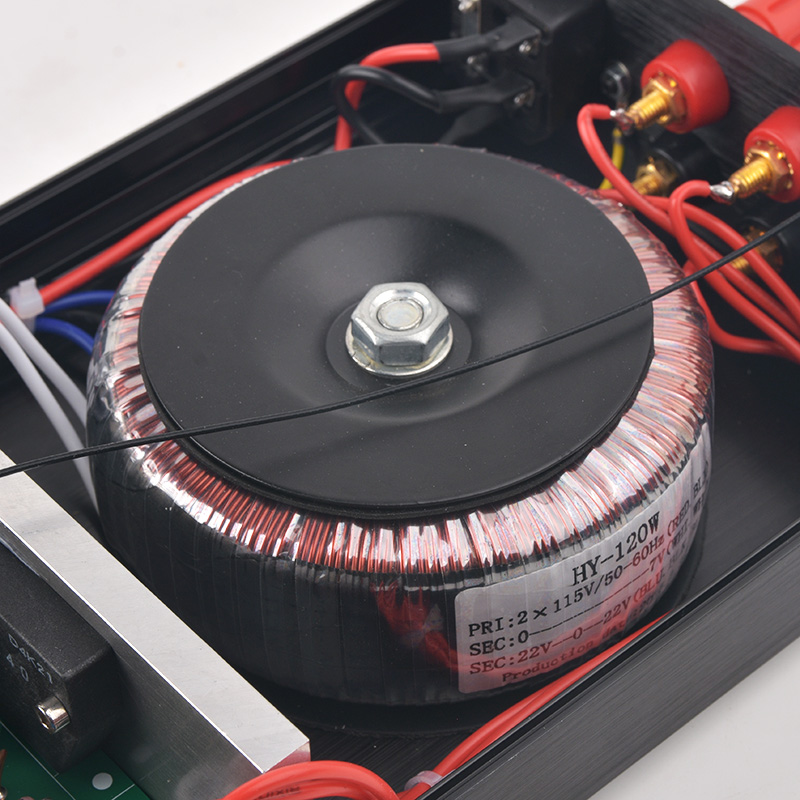

- Built-in custom pure copper wire power supply 120W transformer power supply.
- The radiator is directly connected to the upper and lower cover plates of the chassis, increasing the thermal conductivity area and improving the heat dissipation effect.

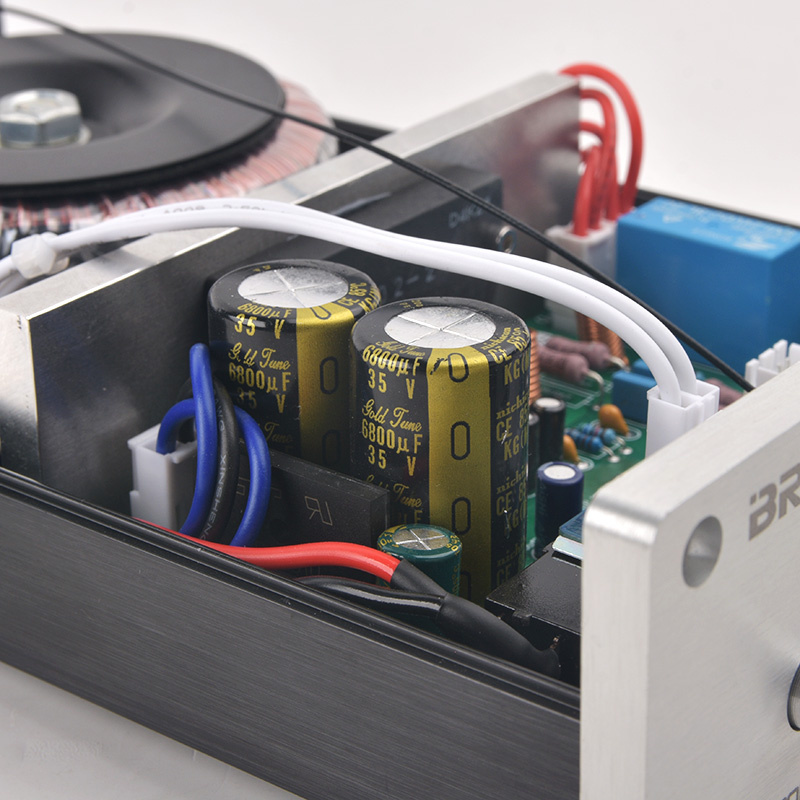

- Adopts famous brand filtering capacitors and ALPS16 volume potentiometer.

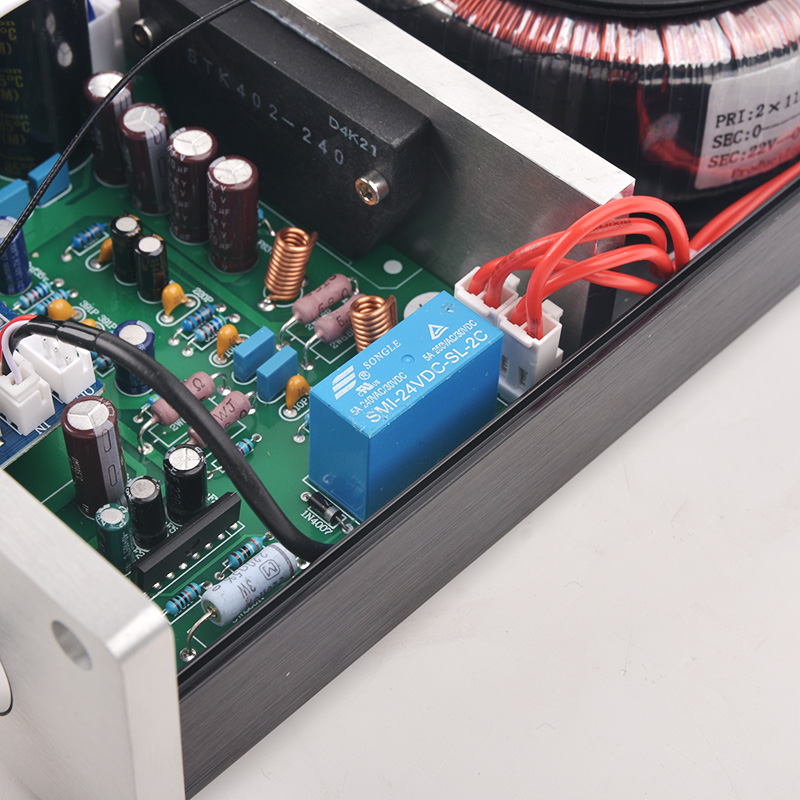

- It has complete overcurrent, overload, and short-circuit protection circuits.
Specification:
- Working mode: class AB
- Bluetooth: Bluetooth5.3
- Static current: 60mA
- Output power: 25W/8ohms, 30W/4ohms
- Harmonic distortion: 0.01%
- Amplification: 31X
- Frequency response: 10Hz - 90kHz
- Input sensitivity: 450mV
- Dynamic range: > 100dB
- Product size: 155 x 60 x 310mm
- Net weight: 2.8kg
Package Included:
- 1 x Power Amplifier
- 1 x Power Cable
- 1 x Signal Cable
