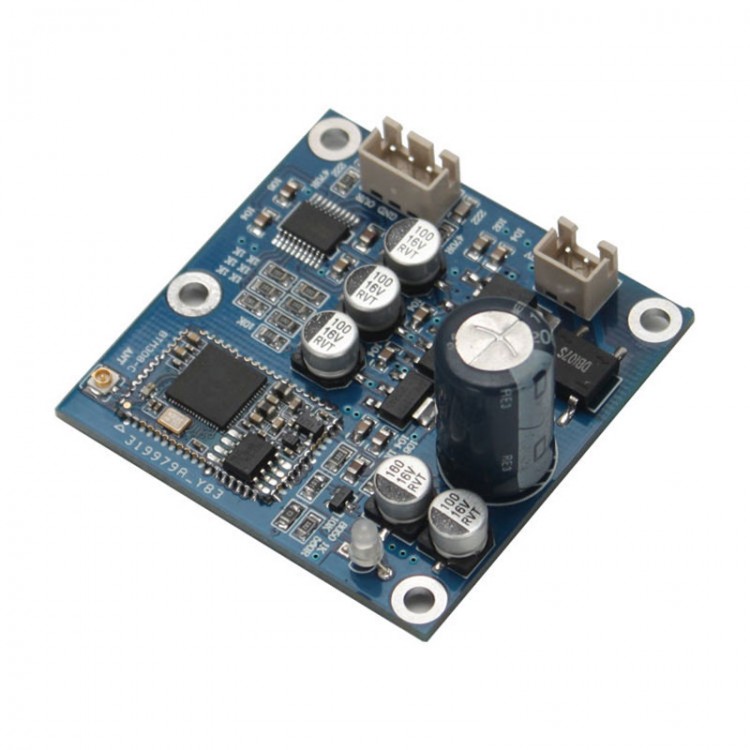

BT01 APTX Bluetooth 5.0 Receiver Board Support For A2DP AVRCP HFP AAC I2S
Features:

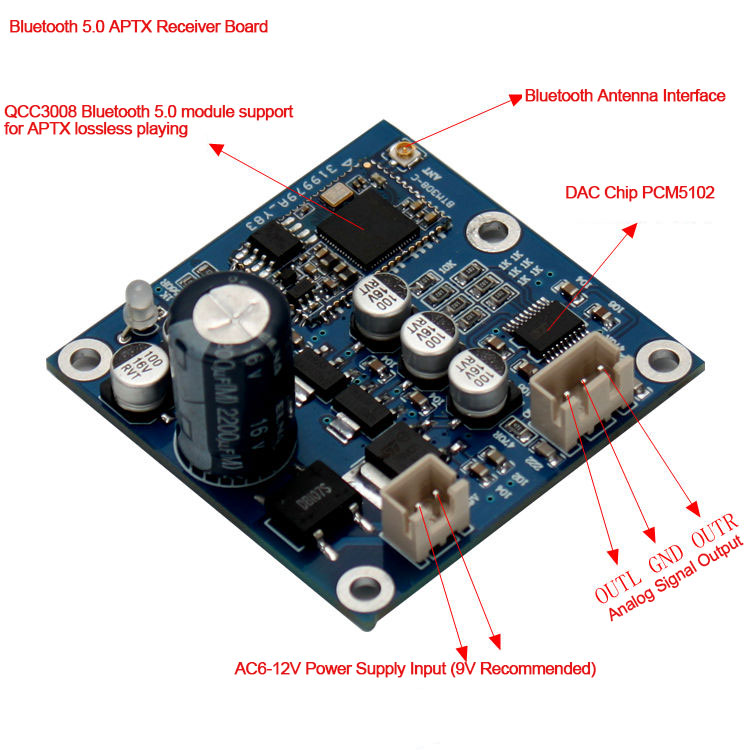

- QCC3008 chip as Bluetooth core supports for A2DP, AVRCP, HFP, AAC and I2S. 16M SPI FLASH as memory chip. Imported PCM5102 as DAC chip.
- 2200uf / 16V electrolytic capacitors guarantee strong continuous power support.
- High-precision chip resistors ensure good SNR of the device.
- With 2.0OZ copper and spraying process, 1.6mm premium PCB ensures excellent passing performance of large and small currents.
Specifications:
- PCB Size: 50 x 50mm
- Voltage: AC6V-12V (Or DC12V)
Package Included:
- 1 x APTX Bluetooth Receiver Board
