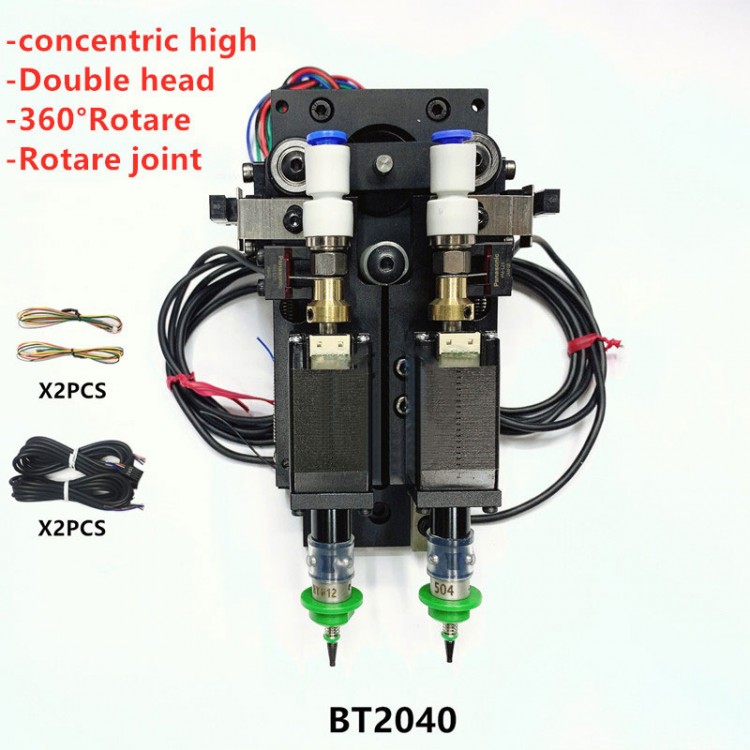

Features:
- High concentricity
- Double Head
- 360 deg rotate
- with Dot sensing device
Specifictaion:
- SMT DIY HEAD
- Motor: Nema8 0.6A
- NOZZLE HOLDER: 5mm -0.05mm
- Rotar joint: 4mm
- Weight:850g
- max size:146.8x89.4x82.8mm
- Rotate working current: 0.6A
- Z axis motor working current: 1.2A
- Solenoid valve Voltage: 24V (220V optional)
- Suck material size: 0.4*0.4-100*100mm
- Driver microstep: 32 micro step,128 and 256 steps optional
- input tube spec: 4*2.5mm
- rotate Concentricity: +-0.02mm
- Sensor Volatge:DC24V
- Max suck weight:100g
- Rotate speed: 1000/min
Nozzle: For JUKI nozzle
500#-SMD0402
501#-SMD0201
503#-SMD0603,0805
504#-SMD1206,SOP23...
505#-SOP8,IC,3528LED,5050LED.....
506#,507#,508#-IC...
please tell me you need nozzle NO when you place order:
500,501,502,503,504,505,506,506,507,508
