| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $20.32 | $19.90 | $19.28 | $18.45 | Contact US |

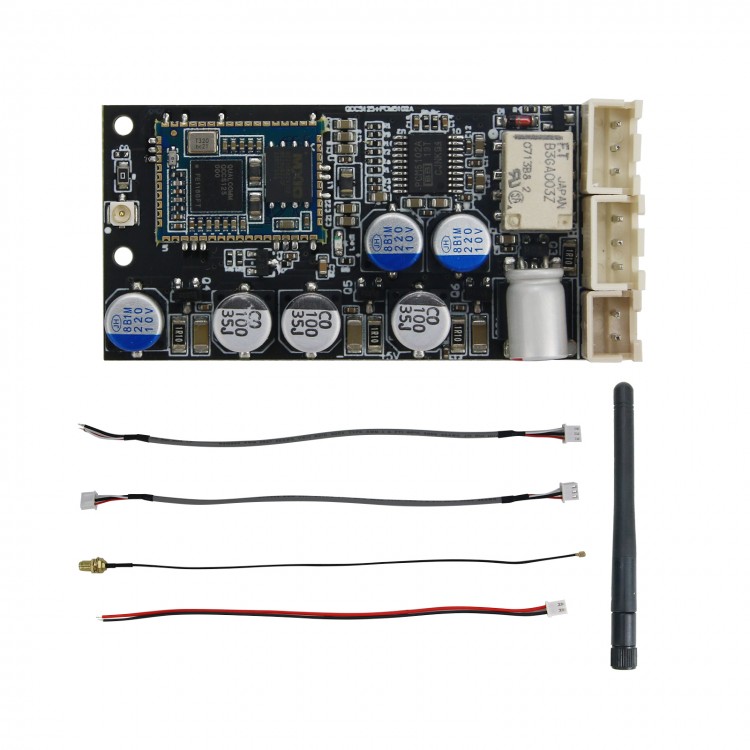

BT5.0 Bluetooth Receiver Board Hifi Bluetooth Receiver Module QCC3034 + PCM5102A for APTX-HD APTX-LL
Features:
- Audiophile Bluetooth receiver
- QCC3034 Bluetooth 5.0 Chip: for SBC, AAC, APTX, APTX-LL and APTX-HD
- Lossless transmission, ultra low delay and hifi sound quality
- Small board (61 x 32.5 x 9.2mm/2.4 x 1.3 x 0.4") to meet your modification requirements
- Reverse connection protection function: the input voltage is increased from the original DC5V-16V (or AC 4-9V) to DC6V-35V (or AC 3.6-24V)
- Bluetooth working distance is improved
- PCM5102A decoding chip supports 32Bit 384kHz; its parameter performance is better than that of the current mainstream high-end Bluetooth chip. The sound quality of this bluetooth receiver has exceeded that of classic CD
- Quality components: The majority of the components are branded products. 5pcs 220uF/6.3V high-speed tantalum capacitors; 3pcs 220uF/6.3V high-end professional solid-state capacitors; 3pcs 0.2V high-current LDOs made in Taiwan; audio relays for Omron; Hifi decoder chip PCM5102A; 14pcs 47uF small volume capacitor for Murata
Package Included:
- 1 x Bluetooth Decoder Board
- 1 x 2P Power Cable
- 2 x 3P Audio Cables
