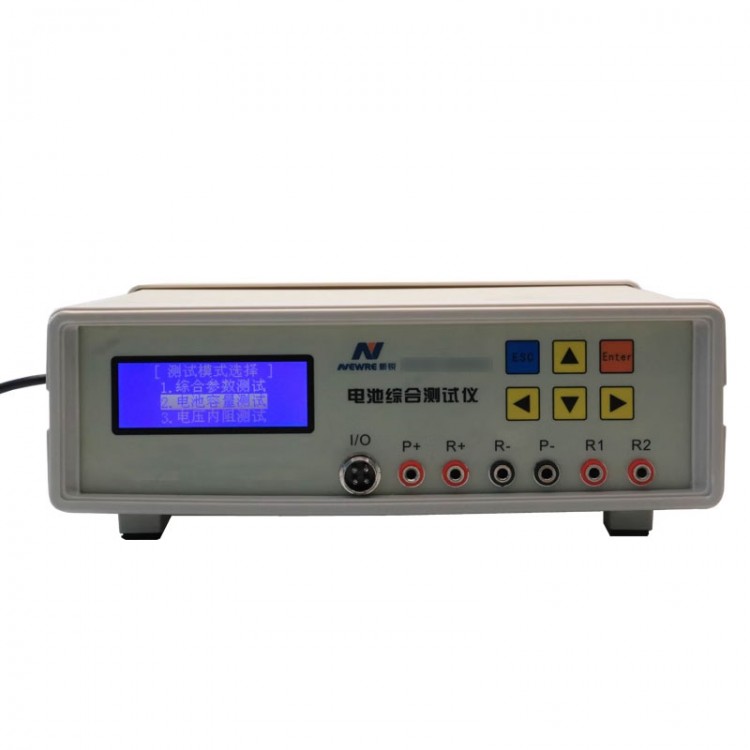

BTS-2004 20V 30A Lithium Battery Tester Battery Comprehensive Tester (110V) for Charging Discharging

BTS-2004 20V 30A Lithium Battery Tester Battery Comprehensive Tester (110V) for Charging Discharging

Features:
Battery Comprehensive Tester
* Quality assurance
* Accurate testing
* Easy operation & stable performance

Comprehensive Battery Parameter Testing
* Battery Voltage Detection (can automatically wake up lithium batteries that are in protection mode)
* Voltage Under-Load Drop Detection
* Battery Internal Resistance Testing
* Battery Charge Performance Testing
* Battery Discharge Performance Testing
* Battery Over-current Testing (lithium batteries only)
* Battery Short-Circuit Protection Time Testing
* Internal Identification Resistor 1 (or Thermistor) Testing
* Internal Identification Resistor 2 (or Thermistor) Testing
* For all measurable parameters above, upper and lower limits can be set for quick filtering.

Battery Capacity Testing
* The tester can perform complete charge and discharge tests on single or double lithium cells. During the discharge process, it calculates the battery's true capacity, providing a reliable reference for evaluating battery performance. Additionally, the tester supports cycle capacity testing, and all test data can be saved and reviewed for previous tests.

Voltage & Internal Resistance Testing
* This function is designed for lithium cells using testing fixtures to measure voltage and internal resistance. It can also be used as a dedicated voltage and internal resistance tester and allows rapid sorting of voltage and internal resistance values, which is convenient for production needs.

Battery Charging Function
* It allows individual batteries to be charged, functioning as a charger. Charging voltage can be controlled, and the charged capacity is recorded during the process.

Battery Discharging Function
* It allows individual batteries to be discharged, functioning as a load. Discharge voltage can be controlled, and discharged capacity is simultaneously recorded.

Suitable for Various Batteries
* It can test a wide range of batteries including 18650 cylindrical cells, square lithium batteries, polymer batteries, Ni-Cd, Ni-MH, and lead-acid batteries.

Specifications:
* Model: BTS-2004
* Voltage Measurement Range: 0–20V
* Over-current Measurement Range: 0.5A–30A
* Resistance Measurement Range: 0.1–999.9kΩ
* Static Test: 0.3–2S
* Charge/Discharge Current Test Range: 10mA–2000mA
* Internal Resistance Measurement Range: 0–999mΩ
* Capacity Measurement Range: 0–60000mAh
* Capacity Test Duration: 3–X hours (depending on capacity)

Packing List:
* 1 × Set of Battery Tester

Packaging Details:
* Weight: 5.2kg

Note:
* Batteries are not included.
