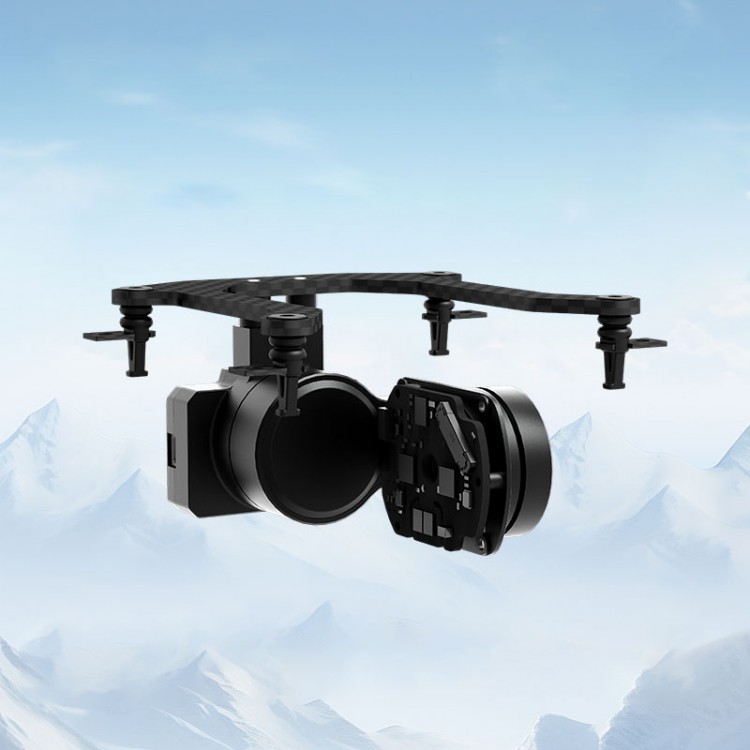

C-40D Horizontal 2-Axis FPV Gimbal Mechanical Stabilization Structure High Torque Brushless Motor FPV PTZ

C-40D Horizontal 2-Axis FPV Gimbal Mechanical Stabilization Structure High Torque Brushless Motor FPV PTZ

Description:
- The C-40D 2-axis Gimbal is compatible with a payload device no heavier then 40g. With a 2-axis mechanical stabilization structure and high-torque motors, the C-40D is able to provides an extreme stabilization effect against the vibration and high-speed air impact.
- With the Headtracker, the C-40D provides an immersive high-quality first-person control experience.

Characteristics:
- Adopts a 2-axis nonorthogonal mechanical stabilization structure and is able to carry a payload equipment at a maximum weight of 40g.
- Thanks to the high-torque motors with IMU temperature control and carrier AHRS fusion, the C-40D provides a stabilization accuracy at ±0.005°.
- With the Headtracker, the C40D provides an immersive high quality firstperson control experience.
- Supports for Headtracker, UART (private protocol & MAVLink), S.BUS, CRSF and PWM control.
- Can be mounted onto multiple carriers, whether downward or upward.
- 7.4 ~ 26.4 VDC wide voltage input.

Specification:
- Product model: C-40D
- Dimensions (with damper): 64 x 59 x 36.2mm
- Weight (with damper): 38g
- Operating voltage: 7.4 ~ 26.4 VDC
- Power: 2W (AVG) / 12W (Stall)
- Mounting: downward / upward
- Control port: for Headtracker / UART (private protocol & MAVLink) / S.BUS / CRSF / PWM
- Wire-through aperture: ϕ4.2mm

Gimbal:
- Gimbal type: 2-axis mechanical stabilization
- Angular accuracy: ±0.005°
- Controllable range:
  Pitch: ±110°
  Roll: ±45°
- Max rotation speed: ±1500°/s
- Camera suitability: maximum payload of 40g

Package Included:
- 1 x FPV Gimbal
