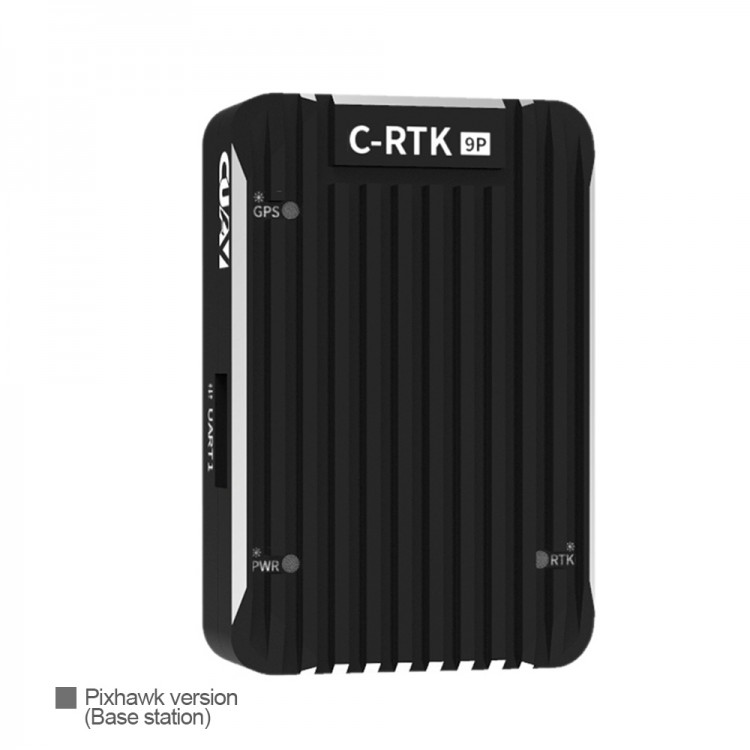

C-RTK 9P Base End GPS Positioning Module System High Precision For Pixhawk Flight Control Version

Availability: In stock, usually dispatched in 1 business day

  • Price:$548.99
  • Price in reward points: 5490 Reward Points: 55
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $538.01 $527.03 $510.56 $488.60 Contact US
Quantity:

C-RTK 9P Base End GPS Positioning Module System High Precision For Pixhawk Flight Control Version


Product Tutorial:
Please visit http://doc.cuav.net/gps/c-rtk/zh-hans/c-rtk-9p.html

Specifications:
- Satellite receiving: 184 channels; GPS L1C/A L2C, GLONASS L1OF L2OF, GALILEO E1B/C E5b, BDS B1| B2I, QZSS L1C/A L2C
- Navigation refresh rate: RTK up to 20 Hz
- Positioning accuracy: RTK 0.01M+1ppm CEP
- Convergence time: RTK<10s
- Collection time:
* Cold start 24s
* Auxiliary start 2s
* Reacquisition 2s
- Sensitivity:
* Tracking and navigation: -167dBm
* Cold start: -148dBm
* Hot Start: -157dBm
* Reacquisition: -160dBm
- Anti-jamming: Active CW detection and removal; Onboard filter
- Security: Advanced anti-spoofing algorithm
- Communications port: UART x 2 & USB x 1
- Antenna: Multi-satellite and multi-frequency antenna
- Time pulse: Configurable: 0.25 Hz to 10 MHz
- Data protocols: For NMEA, UBX binary, RTCM version 3.3
- Voltage: 5V
- Temperature: -40℃ to +85℃
- Product size: 31.5mm x 48mm x 12mm
- Net Weight: 21g


Package Included:

Base End:
- 1 x C-RTK 9P
- 1 x Multi-Satellite Multi-Frequency Mushroom Antenna
- 1 x MMCX-SMA Antenna Extension Cable 1.5M
- 1 x Type-C USB Data Cable 1.5M
