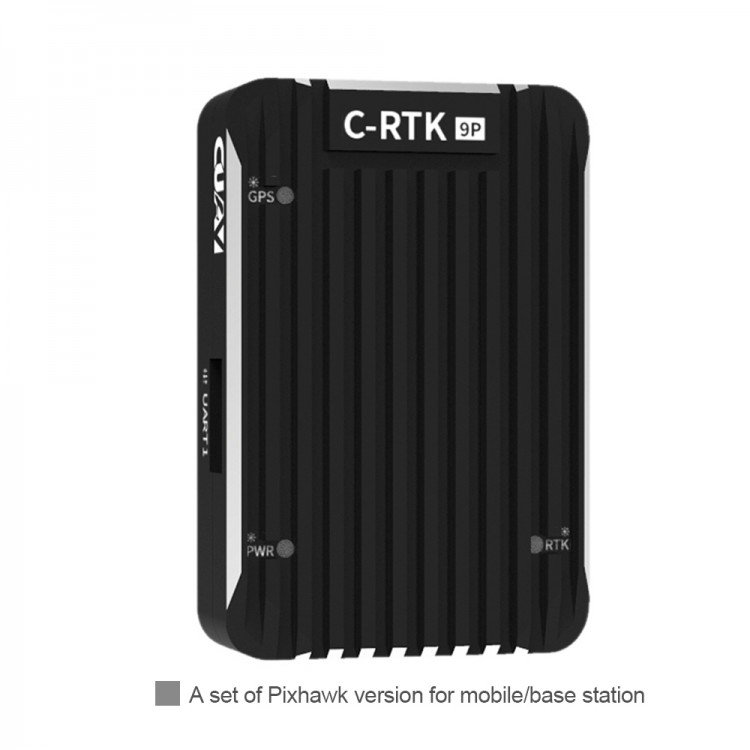

C-RTK 9P Base & Mobile End GPS Positioning Module High Precision For Pixhawk Flight Control Version

Availability: In stock, usually dispatched in 1 business day

  • Price:$1,399.00
  • Price in reward points: 13990 Reward Points: 140
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $1,371.02 $1,343.04 $1,301.07 $1,245.11 Contact US
Quantity:
Buy it now Add cart

You might like

Pixhawk PX4 2.4.6 32bit Flight Controller & Led & NEO-7N GPS & Power Module/PM/PPM/OSD/3DR 433Mhz/USB Data Cable

Pixhawk PX4 2.4.6 32bit Flight Controller & Led & NEO-7N GPS & Power Module/PM/PPM/OSD/3DR 433Mhz/USB Data Cable

$148.50

(0)
Mini APM Pro Flight Control Opensource Hardware with 915Mhz Telemetry & 7N GPS & PM & OSD for Multicopter Aircraft

Mini APM Pro Flight Control Opensource Hardware with 915Mhz Telemetry & 7N GPS & PM & OSD for Multicopter Aircraft

$99.99

(0)
C-RTK 9P Base & Mobile End GPS Positioning Module High Precision For V5+ Nano X7 (Pro) Nora Version

C-RTK 9P Base & Mobile End GPS Positioning Module High Precision For V5+ Nano X7 (Pro) Nora Version

$1,399.00

(0)
Pixhawk PX4 2.4.6(2.4.5) 32 bit ARM Flight Controller with M8N GPS and Folding Holder for RC Multicopter

Pixhawk PX4 2.4.6(2.4.5) 32 bit ARM Flight Controller with M8N GPS and Folding Holder for RC Multicopter

$111.76

(0)
Pixhawk px4 2.4.6(2.4.5) 32 bit ARM Flight Controller + 8G TF/Led External(USB)/7N GPS/I2C Splitter Expand for RC Multicopter

Pixhawk px4 2.4.6(2.4.5) 32 bit ARM Flight Controller + 8G TF/Led External(USB)/7N GPS/I2C Splitter Expand for RC Multicopter

$113.50

(0)
C-RTK 9P Base End GPS Positioning Module System High Precision For Pixhawk Flight Control Version

C-RTK 9P Base End GPS Positioning Module System High Precision For Pixhawk Flight Control Version

$718.00

(0)
Outdoor Autonomous Driving Robot (High-End Pro Version with Orin Nano 4GB and 7" Touch Screen)

Outdoor Autonomous Driving Robot (High-End Pro Version with Orin Nano 4GB and 7" Touch Screen)

$3,767.58

(0)
Pixhawk PX4 2.4.6(2.4.5) 32 bit ARM Flight Controller & 8G TF Card/M8N GPS/Led External/PPM/Folding Holder for RC Multicopter

Pixhawk PX4 2.4.6(2.4.5) 32 bit ARM Flight Controller & 8G TF Card/M8N GPS/Led External/PPM/Folding Holder for RC Multicopter

$127.88

(0)

C-RTK 9P Base & Mobile End GPS Positioning Module High Precision For Pixhawk Flight Control Version





Product Tutorial:
Please visit http://doc.cuav.net/gps/c-rtk/zh-hans/c-rtk-9p.html

Specifications:
- Satellite receiving: 184 channels; GPS L1C/A L2C, GLONASS L1OF L2OF, GALILEO E1B/C E5b, BDS B1| B2I, QZSS L1C/A L2C
- Navigation refresh rate: RTK up to 20 Hz
- Positioning accuracy: RTK 0.01M+1ppm CEP
- Convergence time: RTK＜10s
- Collection time:
* Cold start 24s
* Auxiliary start 2s
* Reacquisition 2s
- Sensitivity:
* Tracking and navigation: -167dBm
* Cold start: -148dBm
* Hot Start: -157dBm
* Reacquisition: -160dBm
- Anti-jamming: Active CW detection and removal; Onboard filter
- Security: Advanced anti-spoofing algorithm
- Communications port: UART x 2 & USB x 1
- Antenna: Multi-satellite and multi-frequency antenna
- Time pulse: Configurable: 0.25 Hz to 10 MHz
- Data protocols: For NMEA, UBX binary, RTCM version 3.3
- Voltage: 5V
- Temperature: -40℃ to +85℃
- Product size: 31.5mm x 48mm x 12mm
- Net Weight: 21g

Package Included:
Base End:
- 1 x C-RTK 9P
- 1 x Multi-Satellite Multi-Frequency Mushroom Antenna
- 1 x MMCX-SMA Antenna Extension Cable 1.5M
- 1 x Type-C USB Data Cable 1.5M

Mobile End:
- 1 x C-RTK 9P
- 1 x Multi-Satellite Multi-Frequency Spiral Antenna

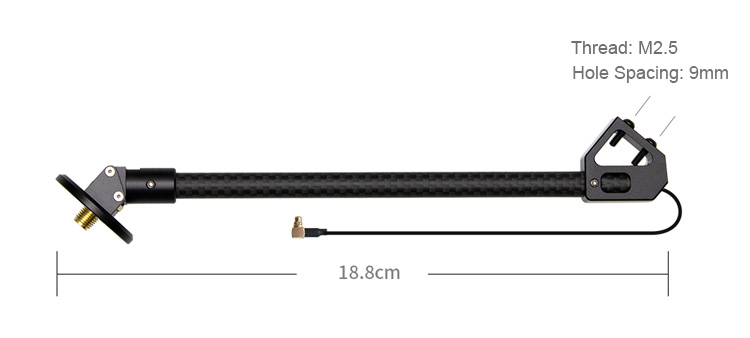

- 1 x MMCX-SMA Antenna Extension Cable 30cm & Bracket
- 1 x Type-C Data Cable For Pixhawk Series Flight Control
