Car Camera Switch Box For Front View & Rear View Camera Switching 2-Channel Control Box SV05

Car Camera Switch Box For Front View & Rear View Camera Switching 2-Channel Control Box SV05

Description:
Car Parking Video Channel Converter. Auto Front / Side and Rear View Camera Video Control Box With Manual Switch

Car Front View And Rear ViewCamera Control Box System SV05

Thanks for purchasing our production. Correct installation and operation can make your driving safely and conveniently.

Application:
It can be applied to your vehicles with monitor and backup camera. For example, it can be used with your car equipped with navigation system for Android and rear-view mirror monitor. Your car's original screen needs to be decoded before using.

Normally speaking, ordinary monitor inputs one-way reversing camera signal. Using our switcher, it can also input one-way front camera signal.

How to Use It?

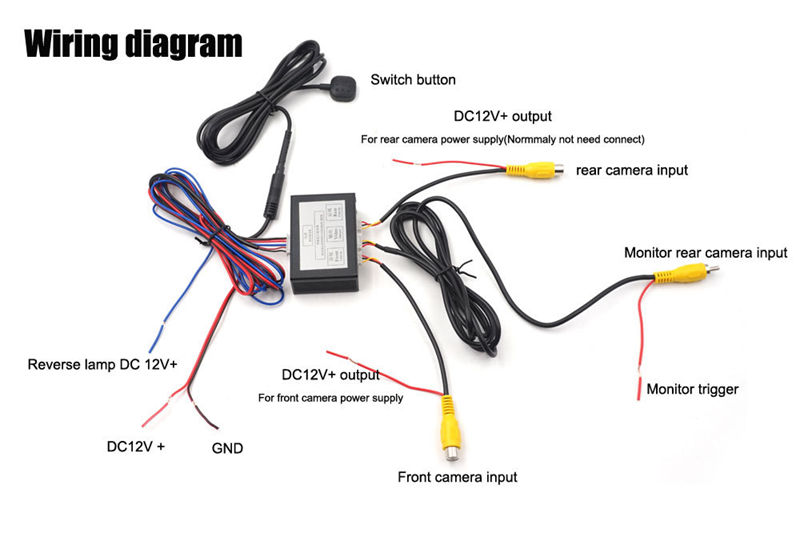

Finish the wiring of our switcher to your front, rear view cameras, and your monitor as pictured.
1.When your car starts: Your front camera automatically starts to work. And your monitor displays the image of the front camera for 8s, which makes it easier for drivers to check whether there is obstacle or not. It turns off after 8s.
2.When your car reverses: Your rear view camera turns on automatically and the monitor display the image of the rear view camera. When reversing is finished, it will automatically switch to display front camera image for 15s.
3.When your car is running at a lower speed, press the switcher's switch button and front camera image will be displayed. Press the switch button again to turn off the front view camera.

Parameters:
- Operating Voltage: 9V to 16V
- Operating Current: <10mA
- Working Temperature: -10℃ to 70℃
- Relative Humidity: ≤95%
- Voltage Output: DC12V

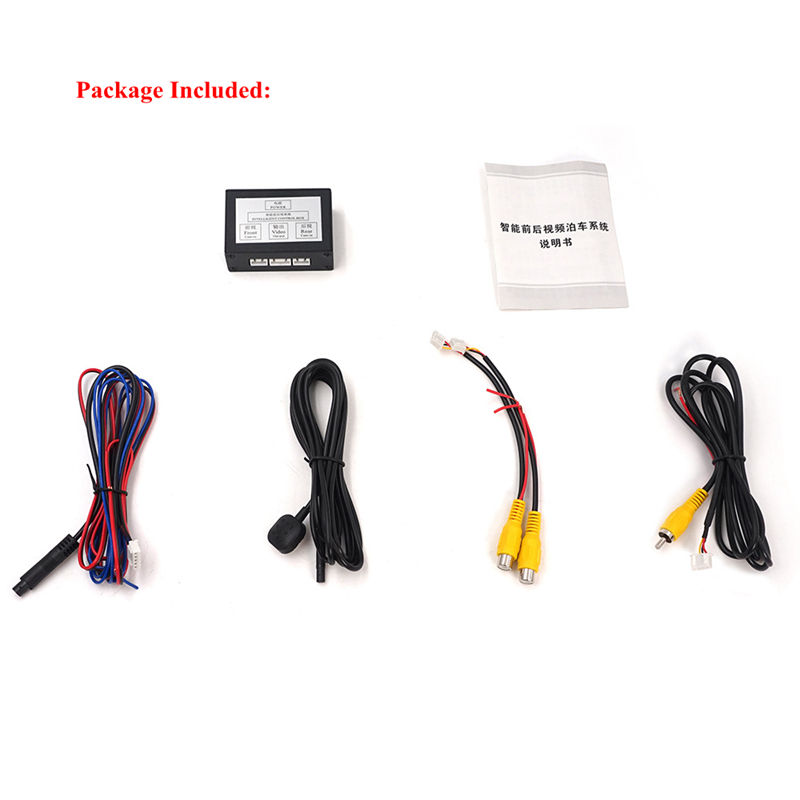

Note: Cameras are not included in the package.
