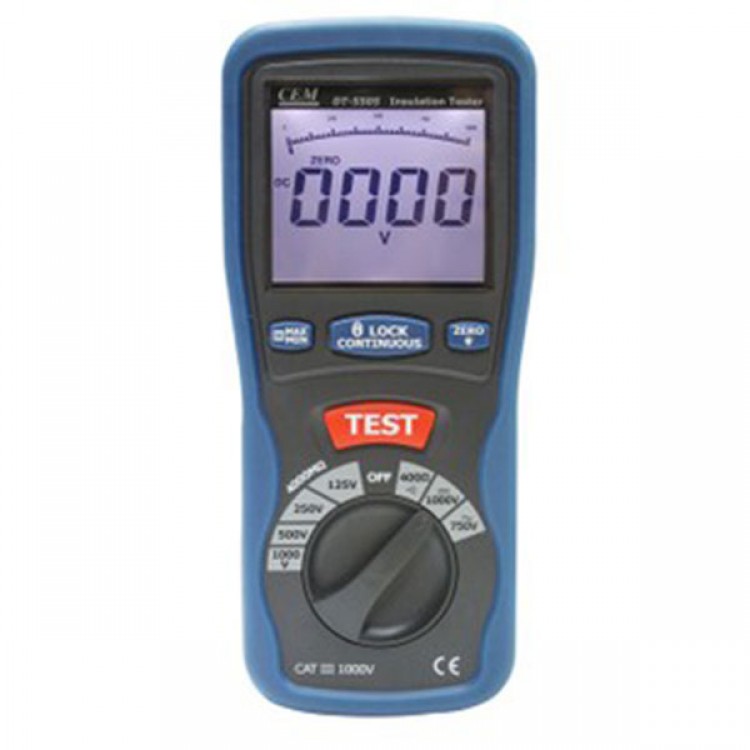

CEM DT-5505 Insulation Tester 750V/ 1000V 40ohm/ 400M ohm with Backlight + Case
Description:
- When doing power installation, 5505 can provide some special help. When doing insulation test, it can help provide 125V,250V,500V and 1000 V source for the test and under each range it can supply more 1mA current to fit the capacitance load. With the autorange function, it can measure up to 4000 MegaOhm with the resolution of 1 Kohm. These characteristics are also specified in the safety regulations in CE document.
1. Auto-discharge of capacitive voltage for added user protection.
2. Live circuit detection prevents insulation test if voltage>30V is detected for added user protection
3. Min/Max recording & Data Hold
4. 1mA test current for MegOhm range at rated voltage
5. 200mA short current for continuity range
6. Additional test voltages 125V, 250V, 500V, 1000V.
Features:
1. Meets IEC10101, CATⅢ 1000V
2. Large dual display with analog bargraph & backlight
3. Test hold & lock function for easy operation
4. Easy to carry testing package
5. Over range Indication
6. Low Battery Indication
7. Includes 6 AA batteries, test leads and plastic carrying case.
Specifications:
|
Range |
Max Resolution |
Accuracy |
Voltage AC |
750V |
1V |
±1.2%rdg± 10digits |
Voltage DC |
1000V |
1V |
±0.8%rdg± 3digits |
Resistance |
40Ω, 400Ω |
0.01Ω,0.1Ω |
±1.5%rdg± 6digits |
Insulation Resistance |
4M,40M,400M,4000MΩ |
1KΩ~1MΩ |
±2.0%rdg± 6digits |
Test Voltage & Current |
125V, 250V, 500V, 1000V. & 1mA nominal |
||
Continuity Test |
Active Sound Level: ≤ 40Ω, Test current ≤ 200mA |
||
Operating Temp. |
0 ℃~40 ℃(<80% R.H.) |
||
Storage Temp. |
-10 ℃~60 ℃(<70% R.H.) |
||
Power Source |
1.5V “AA” size battery ×6 |
||
Size (H*W*D) |
200mm*92mm*50mm |
||
Weight |
582g |
