Description:

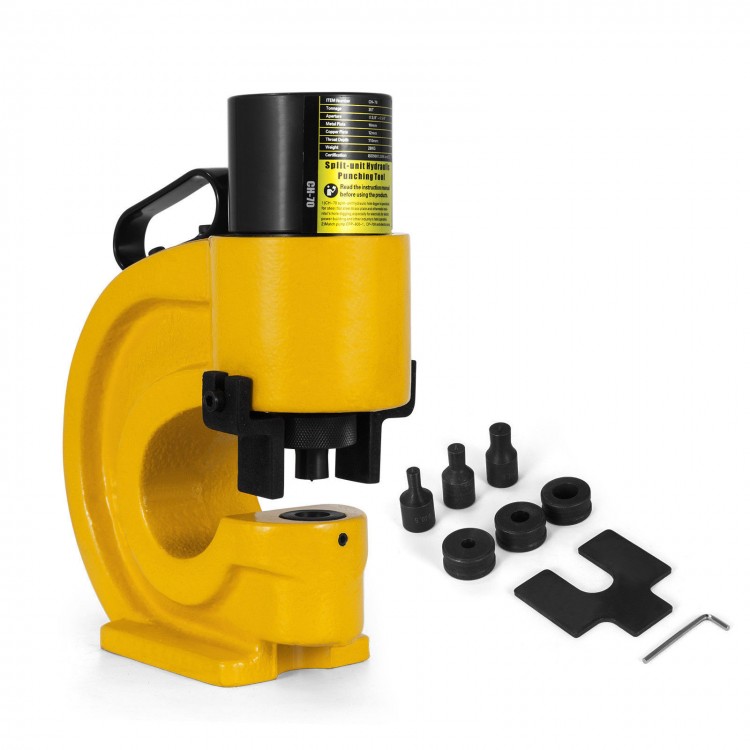

-There is a superior CH-70 hydraulic hole puncher.It is split hole puncher.
- This CH-70 hydraulic hole can apply to L and H style flat copper and busbar. The end of the puncher is designed with flat seat, smooth but not fall. What's more, punch dies are made of high carbon tungsten steel and not easy to wear off. Pumps of model CFP-800-1, CP-700, etc. or electric pump can be connected.
- It is used for punching for metal plate. It is popular in electricity industry,construction,etc.
- Able to punch
3/8"(ф10.5mm)
1/2"(ф13.8mm)
5/8"(ф17.5mm)
3/4"(ф20.5mm)
Notice: You are bidding a hydraulic hole punching Tool without pump
Features
- Brand new
- Apply to L and H style flat copper and busbar.
- The end designed with flat seat,smooth and not fall
- Single oil return
- With punch dies made of high carbon tungsten steel and not easy to wear off.
- Connecting with pump of model CFP-800-1, CP-700, etc. or electric pump
- 2-year warranty
- Condition: brand new
- Depth of throat: 3.74"(95mm)
- Aperture(4 pairs): 3/8"(ф10.5mm),1/2"(ф13.8mm), 5/8"(ф17.5mm), 3/4"(ф20.5mm)
- Max. Thickness of iron plate: 3-10mm/ 1/10-1/2inch
- Max. Thickness of copper bar: 3-12mm/ 1/10-2/5inch
- Max. Thickness of aluminum: 3-12mm/ 1/10-2/5inch
- Max. Thickness of stainless steel: 3-8mm/ 1/10-3/10inch
- Warranty: 2 years
Package Content
- 1 x Hole puncher
- 1 x Concave pressing plate
- 4 x dies(one of them in the puncher)
- 1 x Allen wrench
- 1 x English manual
