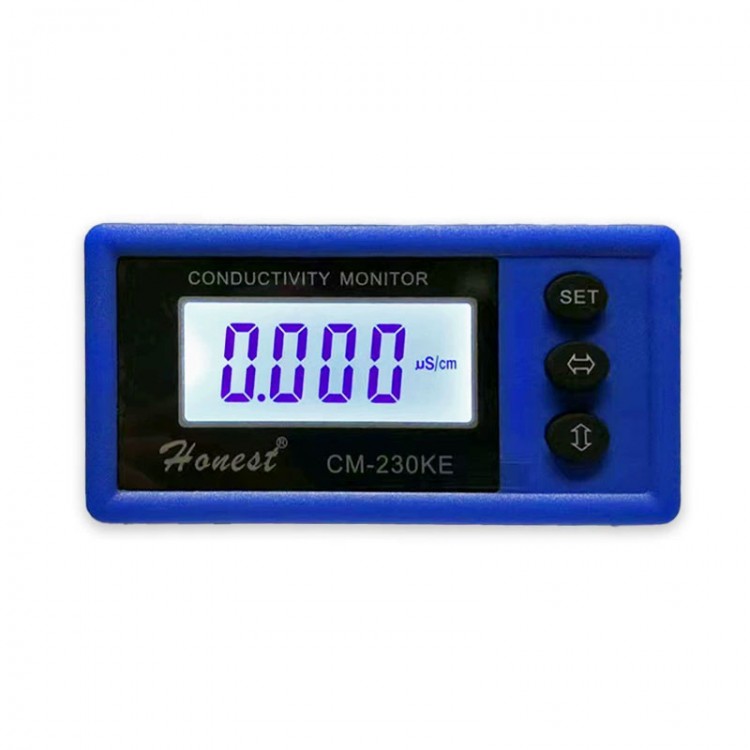

CM-230KE 0~9999MS/CM Online Conductivity Meter Water Conductivity Meter Monitor 4-20mA Output Alarm

CM-230KE 0~9999MS/CM Online Conductivity Meter Water Conductivity Meter Monitor 4-20mA Output Alarm

Description:
The CM-230KE conductivity monitor is an upgraded version of CM-230. It is widely used in the conductivity measurement and monitoring of raw water and general pure aquatic water in water production equipment such as ion exchange and reverse osmosis. It is easier to use, with more accurate reading and clearer display.

Features:
- The industrial online conductivity meter can be used to detect pure water, sewage, solutions and industrial wastewater
- Automatic range switching (0~9999MS/CM)
- Switched to display conductivity value and temperature
- Upper conductivity limit alarm setting and alarm control output
- There is a panel to input electrode constant
- Automatic correction of the zero point
- Alarm delay setting
- Optional power supply: 220VAC and 24VDC
- Widely used: It can be applied to water and sewage plants, paper-making, petroleum, chemical metallurgy and medicine

Specifications:
- Measuring range: 0~9999MS/CM
- Automatic temperature compensation: the compensation range is 0~60°C, and the compensation reference is 25°C
- Display mode: 4-digit 0.56" LED display shows conductivity and water temperature
- Instrument accuracy: ±2% (F· S)
- Electrode configuration: 1.00CM-1 plastic platinum black electrode supports G 1/2 pipe threaded connection, with a 5m/16.4ft cable
- Alarm signal output: It has conductivity upper limit alarm setting, switch quantity output, and 3A/220VAC contact capacity
- Optional power supply: AC220V± 10%, 50HZ (or DC24V)
- Working conditions: Ambient temperature: 0~40°C; relative humidity: ≤85%; medium temperature: 0~50 °C
- Product size: Panel size: 96 x 48mm/3.8 x 1.9"; hole spacing: 91 x 45mm/3.6 x 1.8"; depth: 100mm/3.9"
- Product inspection basis: JB/T6855

Package Included:
- 1 x Set of Conductivity monitor
