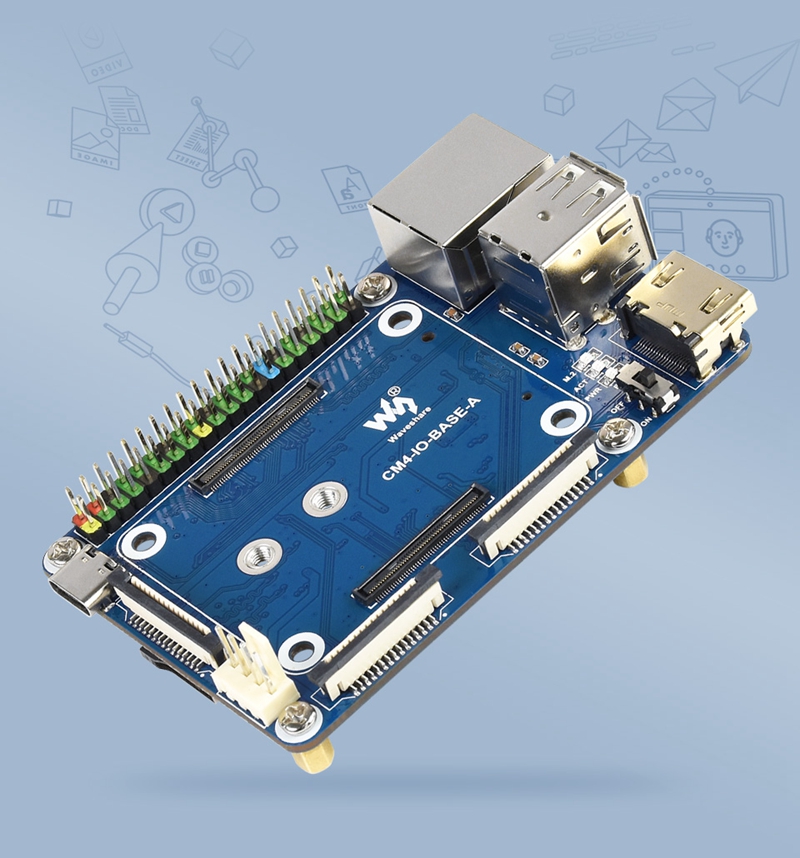

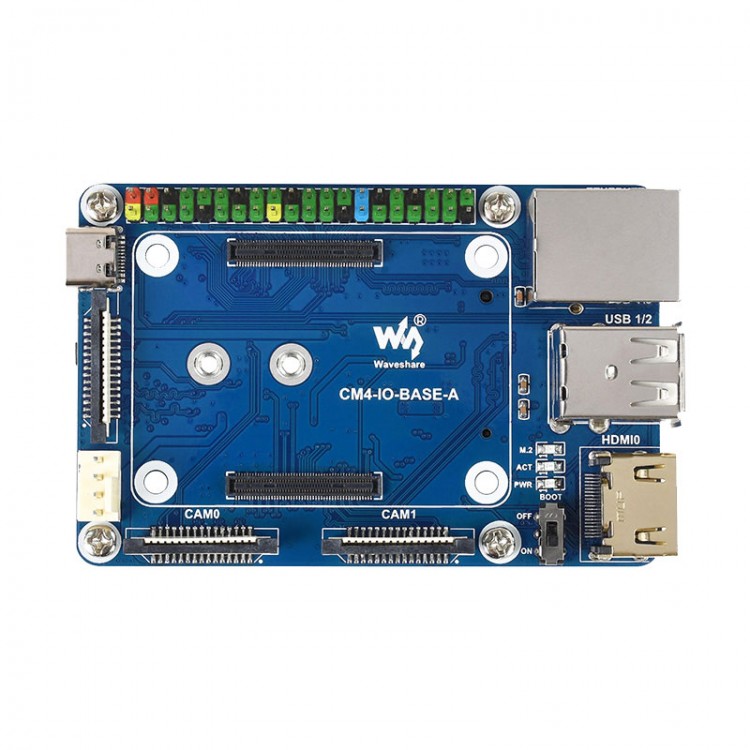

CM4-IO-BASE-A Expansion Board CM4 IO Board Perfect For Raspberry Pi Compute Module 4 CM4

CM4-IO-BASE-A Expansion Board CM4 IO Board Perfect For Raspberry Pi Compute Module 4 CM4

Features:
- Mini base board for Compute Module 4. Suitable for evaluating Raspberry Pi CM4 or being integrated into end products. Powerful functions in a credit card sized body
- Connecting with Compute Module 4. Standard CM4 socket and color-coded 40PIN GPIO header for Raspberry Pi. Suitable for Compute Module 4 Lite/EMMC series module

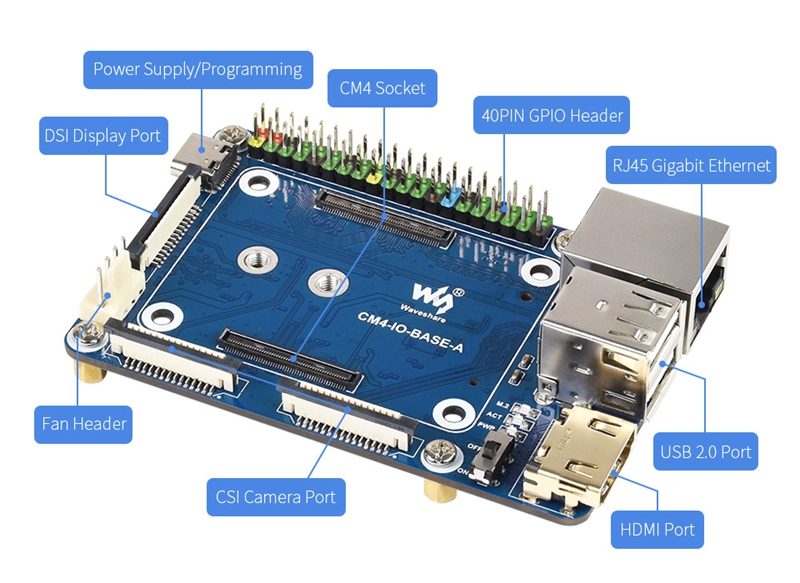

- Compact size and complete functions. Onboard multiple connectors including CSI/DSI/FAN/HDMI/USB/RJ45 Gigabit Ethernet/Micro SD Card Slot/M.2 Slot
- Application Example: such as working with displays and cameras, and working with an additional SSD

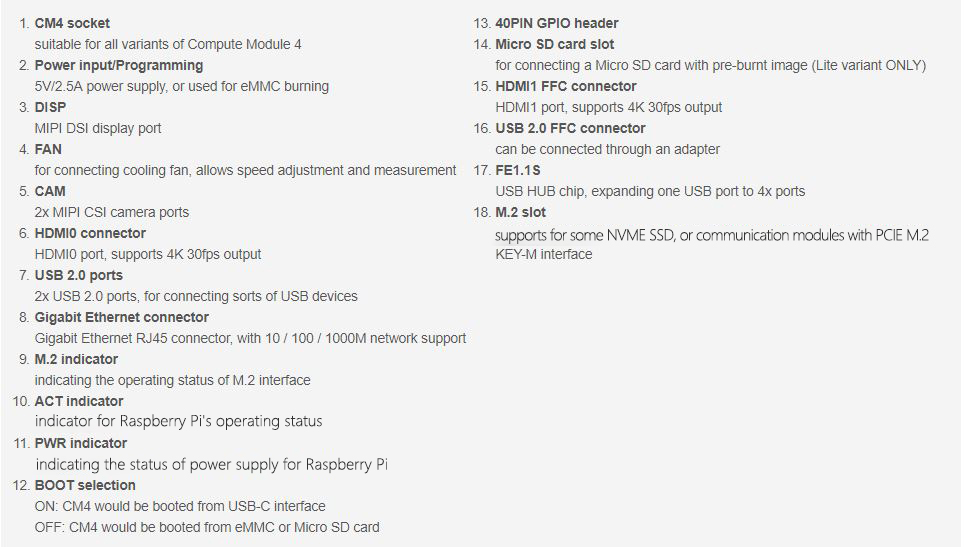

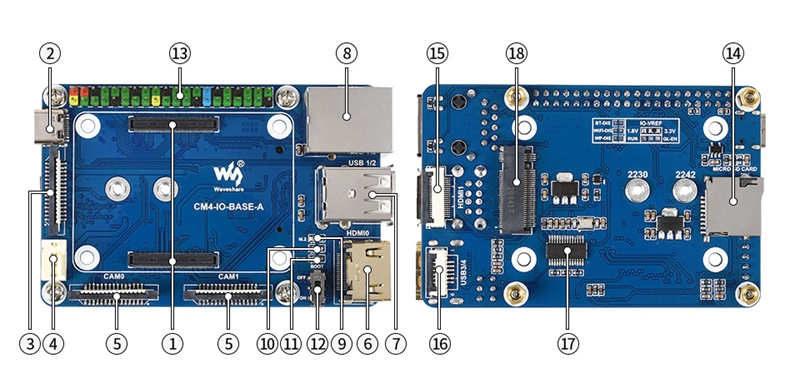

Specifications:
- CM4 SOCKET: suitable for all variants of Compute Module 4

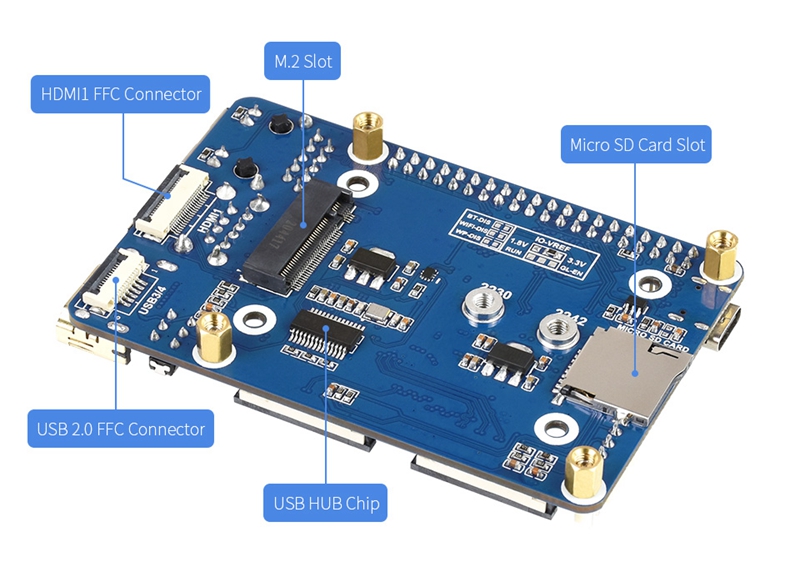

- NETWORKING: Gigabit Ethernet RJ45 connector. M.2 M KEY, supports communication modules or for NVME SSD
- CONNECTOR: 40PIN GPIO header for Raspberry Pi
- USB: USB 2.0 Type A x 2, USB 2.0 via FFC connector x 2
- DISPLAY: MIPI DSI display port (15pin 1.0mm FPC connector)
- CAMERA: MIPI CSI-2 camera port x 2 (15pin 1.0mm FPC connector)
- VIDEO: HDMI port x 2 (including one port via FFC connector), supports 4K 30fps output
- RTC: N/A
- STORAGE: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants
- FAN HEADER: no fan control, 5V
- POWER INPUT: 5V

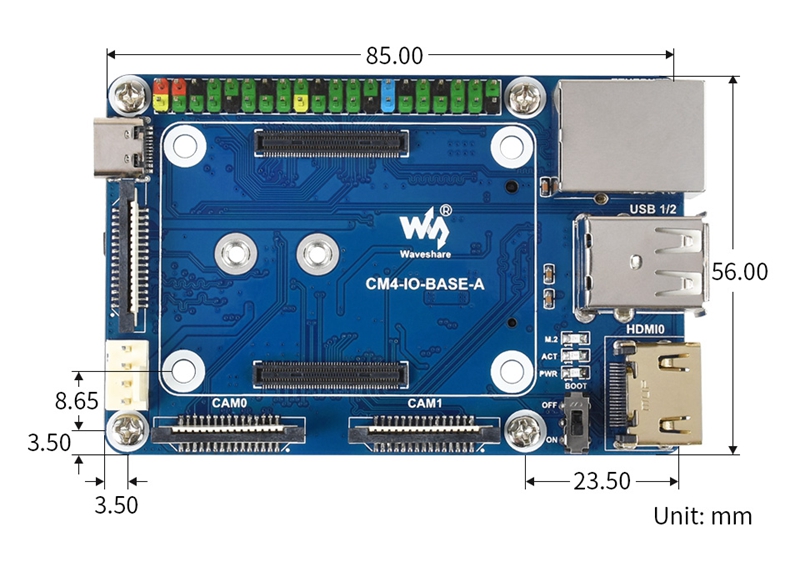

- DIMENSIONS: 85 x 56mm/3.3 x 2.2"

Package Included:
- 1 x CM4-IO-BASE-A
- 1 x SSD Mounting Screw

Note:
- CM4, displays, cameras, SSD and other items are not included in the package, for demonstration purposes only. Thank you for your understanding!
