• CM4 POE SSD Expansion Board (Standard Version) with Dissipation Fan NVME M.2 4-Channel USB2.0 for Raspberry Pi CM4

CM4 POE SSD Expansion Board (Standard Version) with Dissipation Fan NVME M.2 4-Channel USB2.0 for Raspberry Pi CM4

Availability: In stock, usually dispatched in 1 business day

  • Price:$65.12
  • Price in reward points: 651 Reward Points: 7
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $63.82 $62.52 $60.56 $57.96 Contact US
Quantity:

CM4 POE SSD Expansion Board (Standard Version) with Dissipation Fan NVME M.2 4-Channel USB2.0 for Raspberry Pi CM4

Difference of expansion board:

- Simple version: without POE Module
- Standard version: with POE Module

Description:
- The CM4_PoE_SSD expansion board has onboard PoE power supply, USB hub, CSI camera interface, real-time clock (RTC), and M KEY interface, connects to native PCIe 2x1 signals, and supports NVME solid state drives (SSD). At the same time, it has a full-size HDMI interface that supports 4K output; it has a native Gigabit Ethernet, in addition to the 2.54mm pitch 2x20 GPIO pins defined as the same as the 4B for Raspberry Pi,, used for conventional external set expansion.
- The CM4_PoE_SSD expansion board can communicate and supply power with a network cable through a router/switch with PoE function. If the router/switch does not have the PoE function, it can also be powered through the USB-C interface. The output of PoE circuit is up to 5V 2.4A. The USB-C port supports 5V 3A input.
- The CM4_PoE_SSD expansion board has expended four USB HUBs, 3 of which are USB Type-A interfaces, and the other is a built-in 1.25mm pitch 4pin socket, which can be used to expend USB devices such as 4G modules internally.
- The CM4_PoE_SSD expansion board is expanded with a 22pin 0.5mm pitch CSI1 camera interface, which supports 4-Lane MIPI signals.
- The CM4_PoE_SSD expansion board also has the real-time clock (RTC) circuit, which can be used to keep time offline.

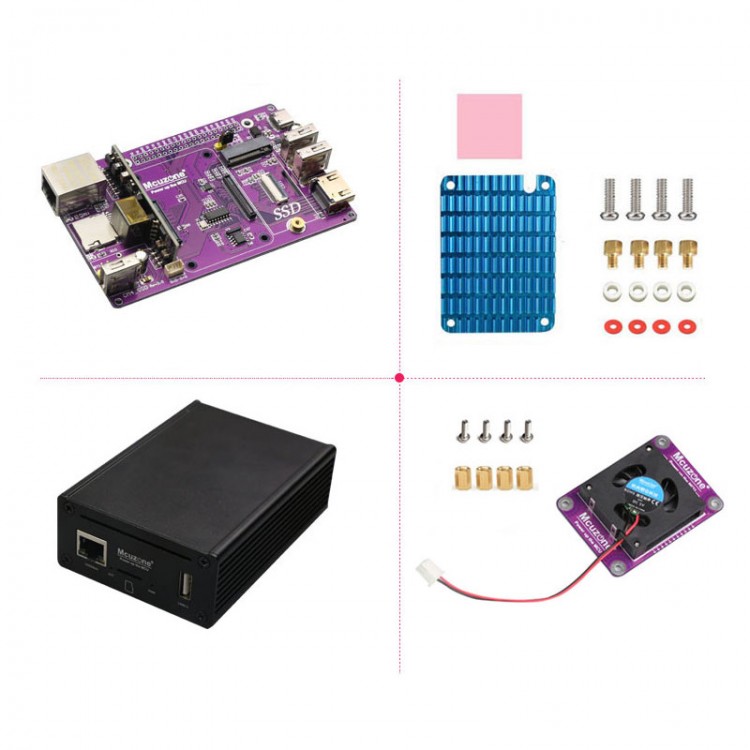

Package Included:
- 1 x Expansion Board
- 1 x Aluminum Alloy Case
- 1 x 5mm Heat Sink Module
- 1 x Side Turbine Dissipation Fan
