CONSPIT ARES APEX 8Nm DD Wheel Base + 11.8" 300 GT Racing Wheel + CDR Quick Release + CPP APEX 2-Pedal Set

CONSPIT ARES APEX 8Nm DD Wheel Base + 11.8" 300 GT Racing Wheel + CDR Quick Release + CPP APEX 2-Pedal Set

ARES APEX 8NM Wheel Base:
1. Description:
As the latest addition to the CONSPIT ARES series, the ARES APEX is not simply about lowering the entry barrier; it encapsulates the core technologies and performance pursuits of the series into a more compact design. With its refined form and a closer alignment to players' needs, it brings professional-grade direct drive feel within reach.

The ARES APEX is equipped with a direct drive motor custom-made for sim racing, and a force feedback system fine-tuned with the deep involvement of professional drivers, aiming to restore the most authentic driving immersion in every detail.

2. Features:
Precision Performance
* Asymmetric Dual Processor: 170MHz + 168MHz dual-core architecture ensures high-speed computation and stable response.
* 21-bit High-Precision Magnetic Encoder: Accurately detects every subtle input from the steering wheel.
* High-Durability Industrial-Grade Communication Slip Ring: Long-lasting and durable. It ensures stable and interference-free signal transmission. Paired with a USB-A adapter ring, it allows for direct USB connection with any third-party steering wheel, effectively eliminating common wireless communication delays and interference.

Optional USB-A Adapter Spacer · Breaking Barriers, Open Compatibility
* The ARES series offers an optional USB-A Adapter Spacer, providing the sim racing community with an open and efficient connection method.
* With it, any USB steering wheel can be directly connected to the ARES base front, utilizing the high-durability slip ring for lossless USB passthrough, without needing to route cables back to the computer.
* The steering wheel cable rotates synchronously with the base, eliminating pulling and tangling.
* Shortest connection path ensures more stable power supply and data transmission.
* Built-in USB Refresher allows steering wheels with SimHub displays to operate stably.

Driving Control Essence
* Professional-grade FFB: Developed by professional drivers and experienced vehicle dynamics engineers, ensuring the feedback closely resembles real-world racing characteristics.
* Enhanced Response Technology: After repeated tuning of torque response characteristics, the maximum torque change rate of 4Nm/ms ensures both speed and accurate reproduction of real vehicle dynamics.
* Custom Motor Development: The ARES APEX motor was designed from the ground up specifically for sim racing scenarios, optimizing for cogging effects and torque ripple, providing smoother, more natural control feel.

Realistic Control Philosophy
* The core of the ARES series' force feedback tuning is realism and reliability. We don't simply pursue high torque output; instead, we start from the actual components of the racing steering system, considering factors like dynamic characteristics, friction damping, and assistance systems. In collaboration with professional drivers and vehicle dynamics engineers, the APEX's force feedback has been repeatedly optimized to maintain stable, high-quality output across different loads and road conditions. It presents true vehicle dynamics while avoiding chaotic or distorted feedback. Therefore, APEX's feel is clean, balanced, and natural. And players can clearly feel track details and vehicle dynamics while focusing on cornering, braking points, and throttle control, offering an immersive experience close to real racing.

Exclusive Motor Development
* Oblique Pole Design: The stator features an oblique pole structure, fundamentally optimizing electromagnetic characteristics, effectively reducing cogging torque and noise, while minimizing electromagnetic vibration for a finer, quieter control feel.
* Ultra-Low Torque Ripple: Through multiple rounds of electromagnetic simulations and sample iterations, ARES has achieved an optimal electromagnetic solution. With precise magnetic circuit design and reasonable air-gap ratios, it significantly reduces torque ripple, ensuring smooth and stable steering feel.
* Ultra-High Torque Density: Utilizing a block-type high-permeability stator core and strong neodymium magnets, combined with a high-slot fill ratio design, ARES achieves ultra-high torque density within a compact frame, delivering powerful performance in a small package.
* Intelligent Thermal Control System: Continuously monitors the system's temperature, maintaining thermal balance even under high-frequency response, ensuring stable performance during long training sessions or endurance races.

Form of Performance
* Lightweight Design: The compact body with sharp lines makes speed and control feel visually evident.
* High-Grade Materials: The motor casing is made from aerospace-grade aluminum alloy, molded into one piece, providing durability while delivering a premium tactile and visual feel.
* Form-Driven Cooling Optimization: The exterior design accounts for passive cooling requirements, ensuring the base remains cool and stable even under prolonged high loads.

Safety and Reliability
* Unique Functional Safety: While ensuring high-performance output, the system also takes into account safety in various usage scenarios, such as offline experience centers or home entertainment environments.
* Comprehensive Protection: Multiple electrical and mechanical protection mechanisms provide stable security for players, ensuring safe operation under all circumstances.

Conspit Link 2.0 Software Support
* Intuitive Setup: Quickly configure base parameters and monitor status through the software.
* Official Presets: Force feedback presets tuned by professional drivers, easily switchable based on game and vehicle models.
* Continuous Updates: Future releases will include Pro-level special presets for advanced players.

CDR Quick Release System
* Automatic Locking Function: After pulling up the locking ring, the wheel can be mounted without manual operation, plug-and-play; when removing the steering wheel, pulling the ring will automatically release it.
* Stable Signal Transmission: Integrated spring contacts ensure high-speed and reliable data transmission, even in electromagnetic interference environments, making it more trustworthy than wireless solutions.

Optional Desktop Stand and Side Mounting Brackets - Adapting to Various Scenarios
* Free your workspace with true flexibility. The desktop stand and side mounting brackets securely position the equipment exactly where you need it. Simplifying installation and easily conquering any space!

3. Specifications:
* Model: ARES APEX
* Dimensions: 134 x 150 x 196 mm
* Net Weight: 5.9 kg
* Max Torque: 8 Nm
* Encoder: 21-bit High-Resolution Magnetic Encoder
* Motor Type: Custom Oblique-Pole Direct Drive Servo Motor
* Quick Release: CONSPIT CDR Quick Release System, Steering Wheel End Optional
* Mounting Holes: M6 x 4 (Bottom), M8 x 4 (Both Sides)
* Platform: PC: Windows
* Emergency Stop Switch: CES Emergency Stop Switch, Optional
* Connection: USB Direct Connection
* Data Cable: USB 3.0 Data Cable
* Driver Software: CONSPIT LINK 2.0

11.8" 300 GT Racing Wheel:
1. Description:
The 300 GT is a groundbreaking product equipped with multiple proprietary technologies developed by CONSPIT. Built upon a lightweight racing-grade carbon fiber structure, it integrates advanced ergonomic design, an optimized interaction layout, and unique interconnected control features—redefining the practical aesthetics of sim racing with a new paradigm.

2. Advantages:
* Visual Screen Connectivity
* Racing-Grade Carbon Fiber Construction
* Competition-Style Paddle Shifter Set
* 110 Independent Button Outputs
* EnduroGrips Ergonomic Durable Grips
* Full Ecosystem Compatibility

3. Features:
300 GT Sim Racing Wheel
* When carbon fiber defies gravity, when buttons become extensions of your nerves, when the screen reflects your future racing line—this is the birth of a new standard.

Racing-Grade Carbon Fiber Construction Redefines the Standard
* The 300 GT adopts a hybrid structure consisting of a 3D real carbon fiber front panel and a high-strength aluminum alloy body.
* With a total weight of only 1150g, it delivers extreme lightness and rigidity, resulting in ultra-low rotational inertia and high torsional stiffness, minimizing interference with force feedback detail.

3D Real Carbon Fiber
* The front panel is crafted using T-300 carbon fiber prepreg, weighing just 43g, yet offering 16 times the tensile strength of carbon fiber composite injection molding.
* It uses a 12-layer ultra-high-strength asymmetric layup structure and Le Mans-grade hot-pressing carbon fiber technology.

High-Strength Aluminum Alloy Body
* The rear housing is made from high-strength aluminum alloy through integrated die-casting, followed by precision CNC machining.
* It combines rigidity, strength, and lightweight performance in one.

Professional Control: 110 Independent Button Outputs
* Thanks to CONSPIT's proprietary encoder remapping technology (patent pending), the 300 GT supports up to 110 independent button outputs. It meets the needs of the most demanding simulation and vehicle control applications. Competitive features such as knob macro remapping (also patent pending) will be added in future updates.

8 Customizable RGB Buttons
* With 500g actuation force and built-in silicone damping pads, the buttons provide crisp feedback and snappy rebound.
* Full-color customization: Lighting effects and telemetry feedback can be adjusted in CONSPIT Link 2.0 and SimHub.

2 ThumbClick™ Thumb Rotary Encoders
* CONSPIT's self-developed "ThumbClick™" rotary encoders are ergonomically designed for natural thumb operation while gripping the wheel.
* Optimized diameter, actuation force, and resistance ensure precise control and prevent accidental touches.

More Details
* 3 dual-mode knobs for addition/subtraction/absolute value
* 2 encoder wheels with remappable buttons
* Thumb shortcut buttons on the back: Equipped with two quick-access index finger buttons for easy control while holding during corners, such as adjusting brake bias, ERS and differential preload

Encoder Remapping
* By switching the central knob to different positions, users can adjust the button mappings of Encoder 2 and Encoder 3 to bind different in-game control functions. For example:
In Position 3, Encoder 2 can be bound to TC1, and Encoder 3 to TC2.
In Position 4, Encoder 2 can be bound to Bias, and Encoder 3 to ABC.

Control Linkage with Encoder Remapping
* The screen interconnects with encoder remapping, displaying real-time vehicle adjustments for optimal competitive driving control visualization. When switching encoder button mappings, the dashboard will show corresponding changes, with customizable display content—keeping all critical race controls at your fingertips.

Visual Screen Connectivity
* The 300 GT is equipped with a self-developed 2.99-inch display from CONSPIT, offering four dashboard pages that show key telemetry data. Future updates will continue to enhance functionality.

Professional Lighting Effects: 56 Fully Customizable LEDs
* 8 button backlights, 12 RPM LEDs, and 36 knob position indicator lights—all support customizable colors and feedback effects.
* All lights are compatible with SimHub, allowing users to configure comprehensive race and vehicle telemetry indicators.

Magnetic Hall-Effect Shift Paddles
* Optimally positioned for natural hand placement and crisp feedback
* Tested for over 500,000 actuations, with force deviation no greater than 4% from the original state
* Three selectable actuation forces—550gf, 660gf, and 900gf—cater to customized driving preferences.

Dual-Clutch Paddles
* The actuation force and travel distance have been thoroughly tested to deliver an optimal handling experience.
* Users can configure dual-clutch launch, independent axis, and dual-axis modes in CONSPIT Link 2.0, making race starts easy to master.

EnduroGrips Ergonomic Durable Grips
* Comfortable and Long-Lasting: The 300 GT continues the ergonomic grip design and material craftsmanship of the 290 GP's EnduroGrips. Made from high-grade TPU material, it is three times more durable than standard TPE grips—leaving no marks, residue, or crumbling.
* Anti-Fatigue Grip Geometry: The full, contoured shape effectively reduces hand fatigue, ensuring precise tactile feedback during extended driving sessions. It supports both two-finger and three-finger grip styles, with an optimized core holding area shaped to match the natural curvature of the hand.
* The specially designed lower grip curve improves force transmission efficiency and enhances the steering feel when "pushing the wheel."

Full Ecosystem Compatibility (Quick-Con System)
* It includes Quick-Con adapter kit with independent USB connection.
* Standard 70mm PCD mounting holes ensure simple compatibility.
* The military-grade quick-connect plug ensures reliable performance even under intense driving conditions.
* It comes with a spring cable that is easy to store and convenient to detach.
* Quick-Con supports 70mm bolt pattern adapters from all major steering wheel brands on the market, ensuring seamless compatibility—so you never have to worry about fitment issues.

4. Specifications:
* Diameter: 300 mm
* Main Structure: 3D molded T-300 carbon fiber front plate (12-layer Le Mans-grade), high-strength CNC aluminum alloy back
* Weight: 1150g (excluding QR), ultra-light for reduced rotational inertia
* Handgrip: Aluminum CNC frame + EnduroGrips (TPU, 3x more durable than TPE)
* Display: 2.99" color screen, 800x268 px, 5 dash pages, live encoder mapping
* Buttons & Controls: 8 modular RGB buttons (fully customizable), 2 ThumbClick™ dials (ergonomic, triple-tuned), 3 dual-mode rotary knobs (absolute/+/-), 2 encoder dials with on-wheel remapping, 2 joysticks, 110-key customizable layout
* Paddles: Magnetic Hall effect shifters (3 adjustable pressures: 550gf, 660gf, 900gf), dual Hall sensor clutch paddles (multiple settings via CONSPIT Link 2.0)
* LEDs: 56 customizable (button lights, RPM, knob indicators), SimHub compatible
* Rear Controls: Finger shortcut buttons for fast in-race adjustments
* Connection: USB (Quick-Con adapter system, military-grade spring cable), PC only
* Mounting: 70mm PCD bolt pattern – for Asetek, Simucube, Fanatec, Simagic, VRS, MOZA, and more
* Software: CONSPIT Link 2.0 & SimHub support

CDR Quick Release:
1. Features:
* CDR Quick Release: Quick release for your steering wheel
* Universal Specification Design: The CDR Quick Release is designed with a specification commonly used in the simulation racing industry, ensuring mechanical compatibility between various bases and steering wheels. It is versatile for multiple use cases and allows for quick, hassle-free wheel changes.
* Auto-Locking Feature: The CDR Quick Release is equipped with an auto-locking mechanism. After pulling up the locking ring, there's no need to manually disengage the ring when mounting the wheel—simply plug and play. When removing the steering wheel, just pull the ring, and it will automatically release.
* Stable Signal & Reliable Performance: The integrated spring contact points inside the CDR ensure stable connections, maintaining efficient data transmission even in environments with electromagnetic interference (EMI). This makes it more reliable than wireless communication solutions.
* Zero Gap Durability: The optimized contact geometry design effectively eliminates ball-lock wear, ensuring exceptional durability with zero gap, even under long-term extreme load conditions.

2. Specifications:
* Product Name: CDR Quick Release
* Product Dimensions: 81mm x 83mm x 83mm
* Net Weight: 0.315kg
* Main Material: Aluminum Alloy
* Connection Type: CONSPIT Base (Pogopin)
* Mounting Holes: 3 x Ф5mm, P.C.D Ф50 mm
* Optional Accessories: 50-70mm Adapter, Quick-Con Adapter, USB-A Adapter Pad, CDR Quick Release Base End

CPP APEX 2-Pedal Set:
1. Features:

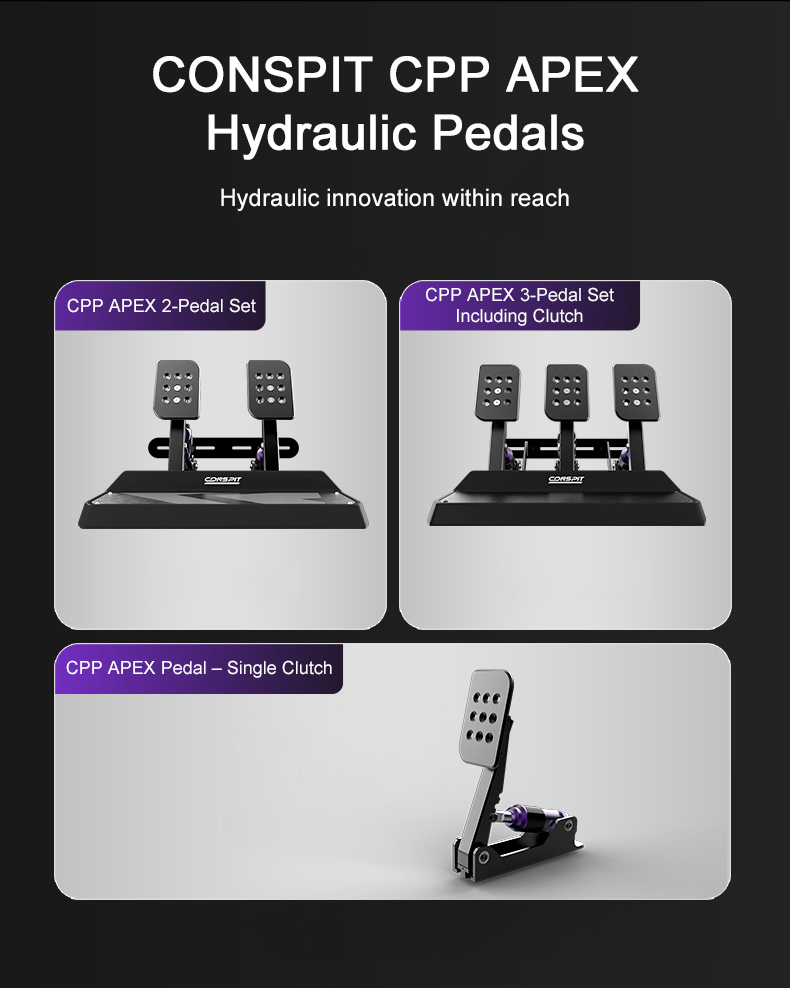

CONSPIT CPP APEX Hydraulic Pedals
* Hydraulic innovation within reach

N+1 Product Concept
* The CPP APEX hydraulic brake pedal set integrates CONSPIT's patented sensing technology with a hydraulic system to achieve precise control and deliver a realistic pedal feel.

Hydraulic System Innovation
* It adopts a longitudinal dual-cylinder integrated design.
* The compact layout places the hydraulic cylinder and elastomer cylinder side by side in a longitudinal arrangement.
* Made with one-piece die-cast aluminum alloy and CNC precision machining, it ensures smooth pedal feel and long-lasting durability.

10MPa Automotive-Grade Hydraulic Sensor
* The 10MPa hydraulic sensor accurately detects brake pressure, combining linear braking with clear feedback, supporting both threshold braking and trail braking.

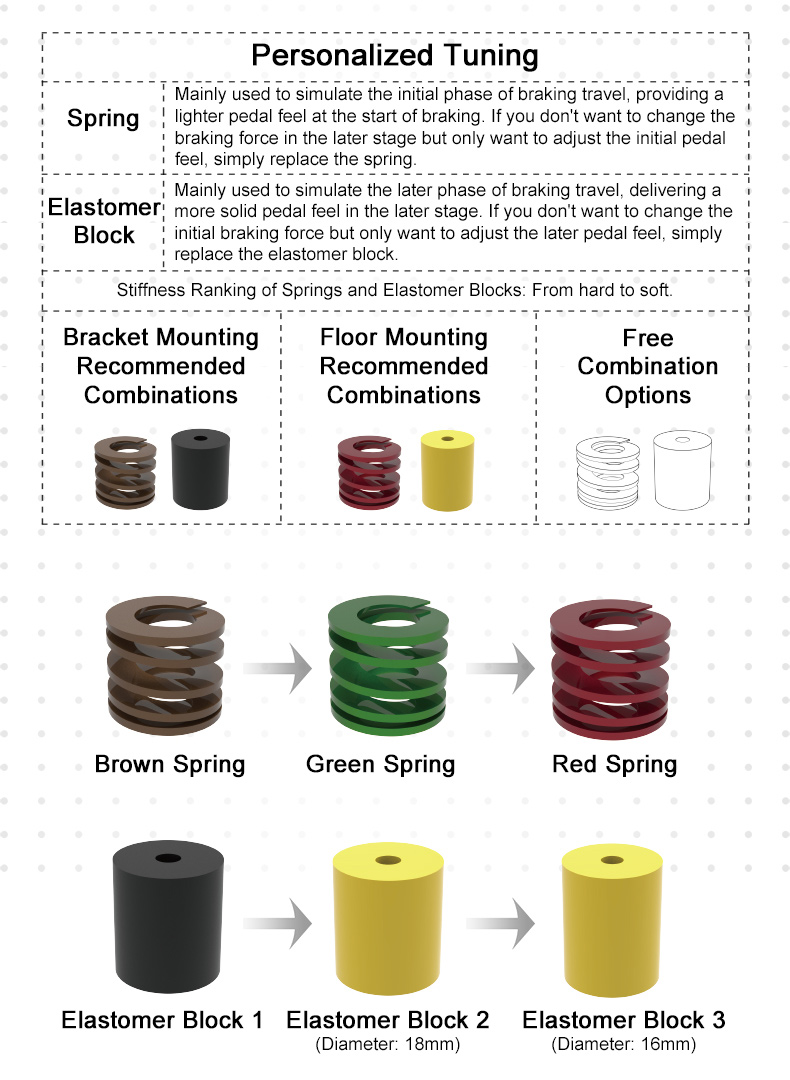

Two-Stage Brake Pedal Feel
* The spring simulates the initial brake contact, while the elastomer provides solid feedback in the later stage. It supports swapping different hardness combinations for personalized tuning.

Enveloped Throttle Design
* The throttle adopts an enveloping structure with internal motion components, providing dust protection while maintaining precise control. Combined with a market-proven Hall sensor, it ensures accurate throttle response.

Precision Manufacturing – Durability and Premium Feel
* The main pedal material is high-grade aluminum alloy, treated with T6 heat treatment and high-precision CNC machining to guarantee structural strength and long service life. The surface undergoes sandblasting and anodizing, offering a refined touch, outstanding appearance, and a balance of durability and premium quality.

Precision Machining and Bearing Design
* Key load-bearing and moving parts are precisely machined and equipped with bearings, ensuring stability and durability under heavy loads and extended use.

Multi-Scenario Deployment
* Competition-grade mounting and ready-to-use solutions.
* Compatible with all mainstream aluminum profile brackets and integrated stands.
* Includes a wall-mount bracket by default to support floor installation (with anti-slip silicone pads).

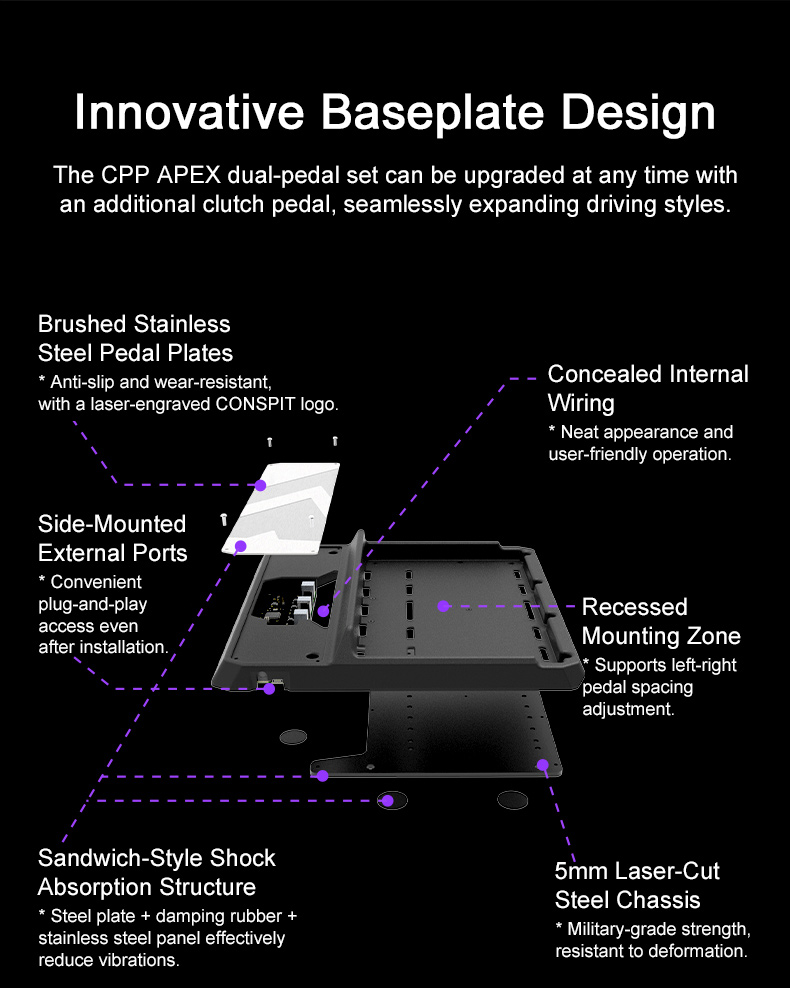

Expandable Clutch Pedal (Optional)
* The CPP APEX dual-pedal set can be upgraded at any time with an additional clutch pedal, seamlessly expanding driving styles.

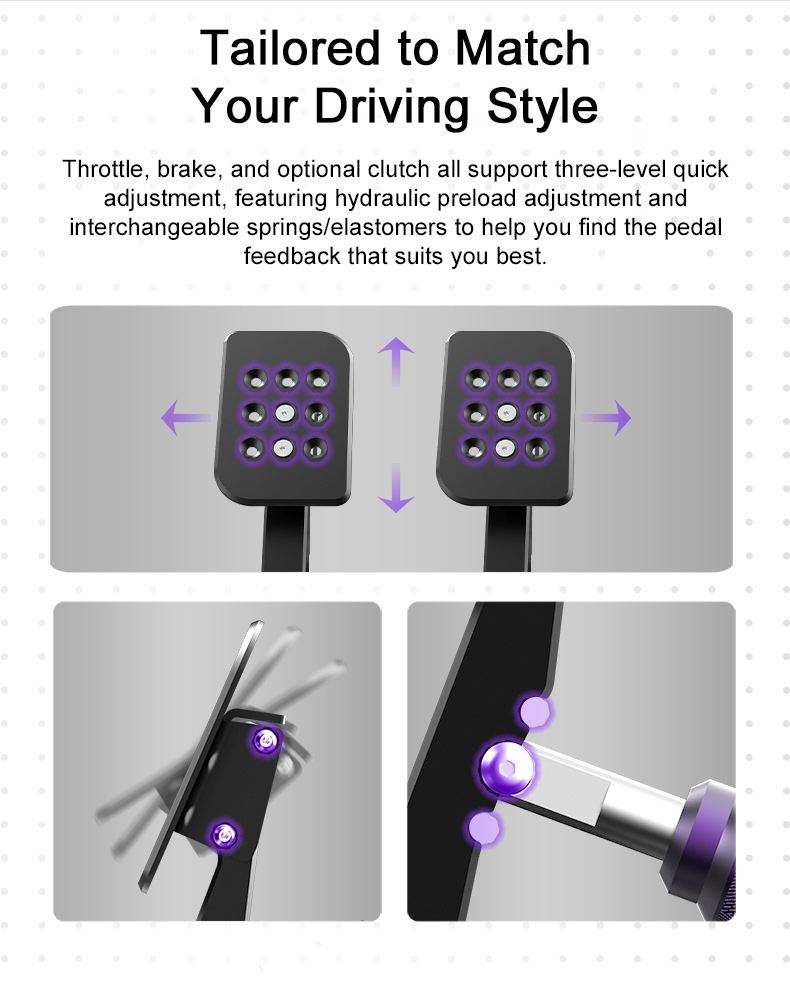

Tailored to Match Your Driving Style
* Throttle, brake, and optional clutch all support three-level quick adjustment, featuring hydraulic preload adjustment and interchangeable springs/elastomers to help you find the pedal feedback that suits you best.

Conspit Link 2.0 Software
* It enables users to quickly configure settings. The software supports custom mapping curves, brake input limits, and other functions, making personalized tuning easier and optimizing the driving experience.

Flexible Connectivity
* The CPP APEX can be directly connected to a PC via USB data cable, or integrated into the system through the rear port of the Ares series wheel base, providing a more convenient and seamless sim racing ecosystem experience.

2. Specifications:
* Product Name: CPP APEX Hydraulic Brake Pedal
* Sensor Type: Hydraulic Sensor
* Sensor Range: 0-100 Bar
* Adjustable Travel: Supported
* Adjustable Force: Three-level adjustment for each pedal
* Hydraulic Cylinder: Standard configuration with adjustable preload
* Clutch Pedal: Optional
* Vibrator: Optional
* Position Adjustment: Adjustable pedal spacing and pedal surface angle
* Product Material: Aluminum alloy, carbon steel
* Included Accessories: Warranty card, user manual, tool kit, screw pack, stickers, adjustment wrench, maintenance consumables, wall-mount bracket, anti-slip silicone pads

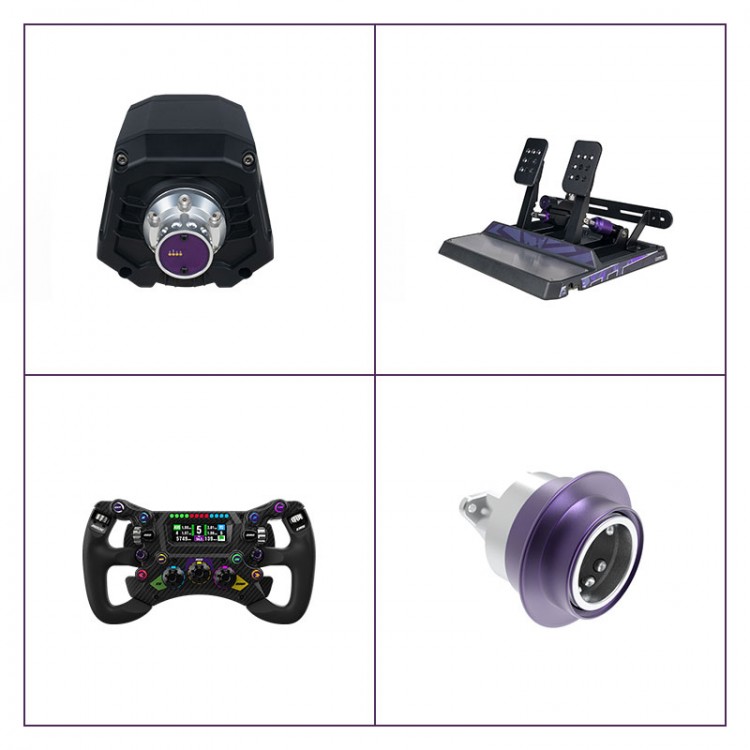

Packing List:
* 1 × ARES APEX 8Nm Wheel Base
* 1 × 300 GT Racing Wheel
* 1 × CDR Quick Release
* 1 × CPP APEX 2-Pedal Set

Packaging Details:
* Weight: 22.9kg
