CONSPIT ARES APEX 8Nm DD Wheel Base + 12.2" 310 Apex Steering Wheel + CDR Quick Release + CPP APEX 2-Pedal Set

CONSPIT ARES APEX 8Nm DD Wheel Base + 12.2" 310 Apex Steering Wheel + CDR Quick Release + CPP APEX 2-Pedal Set

ARES APEX 8NM Wheel Base:
1. Description:
As the latest addition to the CONSPIT ARES series, the ARES APEX is not simply about lowering the entry barrier; it encapsulates the core technologies and performance pursuits of the series into a more compact design. With its refined form and a closer alignment to players' needs, it brings professional-grade direct drive feel within reach.

The ARES APEX is equipped with a direct drive motor custom-made for sim racing, and a force feedback system fine-tuned with the deep involvement of professional drivers, aiming to restore the most authentic driving immersion in every detail.

2. Features:
Precision Performance
* Asymmetric Dual Processor: 170MHz + 168MHz dual-core architecture ensures high-speed computation and stable response.
* 21-bit High-Precision Magnetic Encoder: Accurately detects every subtle input from the steering wheel.
* High-Durability Industrial-Grade Communication Slip Ring: Long-lasting and durable. It ensures stable and interference-free signal transmission. Paired with a USB-A adapter ring, it allows for direct USB connection with any third-party steering wheel, effectively eliminating common wireless communication delays and interference.

Optional USB-A Adapter Spacer · Breaking Barriers, Open Compatibility
* The ARES series offers an optional USB-A Adapter Spacer, providing the sim racing community with an open and efficient connection method.
* With it, any USB steering wheel can be directly connected to the ARES base front, utilizing the high-durability slip ring for lossless USB passthrough, without needing to route cables back to the computer.
* The steering wheel cable rotates synchronously with the base, eliminating pulling and tangling.
* Shortest connection path ensures more stable power supply and data transmission.
* Built-in USB Refresher allows steering wheels with SimHub displays to operate stably.

Driving Control Essence
* Professional-grade FFB: Developed by professional drivers and experienced vehicle dynamics engineers, ensuring the feedback closely resembles real-world racing characteristics.
* Enhanced Response Technology: After repeated tuning of torque response characteristics, the maximum torque change rate of 4Nm/ms ensures both speed and accurate reproduction of real vehicle dynamics.
* Custom Motor Development: The ARES APEX motor was designed from the ground up specifically for sim racing scenarios, optimizing for cogging effects and torque ripple, providing smoother, more natural control feel.

Realistic Control Philosophy
* The core of the ARES series' force feedback tuning is realism and reliability. We don't simply pursue high torque output; instead, we start from the actual components of the racing steering system, considering factors like dynamic characteristics, friction damping, and assistance systems. In collaboration with professional drivers and vehicle dynamics engineers, the APEX's force feedback has been repeatedly optimized to maintain stable, high-quality output across different loads and road conditions. It presents true vehicle dynamics while avoiding chaotic or distorted feedback. Therefore, APEX's feel is clean, balanced, and natural. And players can clearly feel track details and vehicle dynamics while focusing on cornering, braking points, and throttle control, offering an immersive experience close to real racing.

Exclusive Motor Development
* Oblique Pole Design: The stator features an oblique pole structure, fundamentally optimizing electromagnetic characteristics, effectively reducing cogging torque and noise, while minimizing electromagnetic vibration for a finer, quieter control feel.
* Ultra-Low Torque Ripple: Through multiple rounds of electromagnetic simulations and sample iterations, ARES has achieved an optimal electromagnetic solution. With precise magnetic circuit design and reasonable air-gap ratios, it significantly reduces torque ripple, ensuring smooth and stable steering feel.
* Ultra-High Torque Density: Utilizing a block-type high-permeability stator core and strong neodymium magnets, combined with a high-slot fill ratio design, ARES achieves ultra-high torque density within a compact frame, delivering powerful performance in a small package.
* Intelligent Thermal Control System: Continuously monitors the system's temperature, maintaining thermal balance even under high-frequency response, ensuring stable performance during long training sessions or endurance races.

Form of Performance
* Lightweight Design: The compact body with sharp lines makes speed and control feel visually evident.
* High-Grade Materials: The motor casing is made from aerospace-grade aluminum alloy, molded into one piece, providing durability while delivering a premium tactile and visual feel.
* Form-Driven Cooling Optimization: The exterior design accounts for passive cooling requirements, ensuring the base remains cool and stable even under prolonged high loads.

Safety and Reliability
* Unique Functional Safety: While ensuring high-performance output, the system also takes into account safety in various usage scenarios, such as offline experience centers or home entertainment environments.
* Comprehensive Protection: Multiple electrical and mechanical protection mechanisms provide stable security for players, ensuring safe operation under all circumstances.

Conspit Link 2.0 Software Support
* Intuitive Setup: Quickly configure base parameters and monitor status through the software.
* Official Presets: Force feedback presets tuned by professional drivers, easily switchable based on game and vehicle models.
* Continuous Updates: Future releases will include Pro-level special presets for advanced players.

CDR Quick Release System
* Automatic Locking Function: After pulling up the locking ring, the wheel can be mounted without manual operation, plug-and-play; when removing the steering wheel, pulling the ring will automatically release it.
* Stable Signal Transmission: Integrated spring contacts ensure high-speed and reliable data transmission, even in electromagnetic interference environments, making it more trustworthy than wireless solutions.

Optional Desktop Stand and Side Mounting Brackets - Adapting to Various Scenarios
* Free your workspace with true flexibility. The desktop stand and side mounting brackets securely position the equipment exactly where you need it. Simplifying installation and easily conquering any space!

3. Specifications:
* Model: ARES APEX
* Dimensions: 134 x 150 x 196 mm
* Net Weight: 5.9 kg
* Max Torque: 8 Nm
* Encoder: 21-bit High-Resolution Magnetic Encoder
* Motor Type: Custom Oblique-Pole Direct Drive Servo Motor
* Quick Release: CONSPIT CDR Quick Release System, Steering Wheel End Optional
* Mounting Holes: M6 x 4 (Bottom), M8 x 4 (Both Sides)
* Platform: PC: Windows
* Emergency Stop Switch: CES Emergency Stop Switch, Optional
* Connection: USB Direct Connection
* Data Cable: USB 3.0 Data Cable
* Driver Software: CONSPIT LINK 2.0

310 APEX Steering Wheel:
1. Description:
The 310 APEX is a brand-new open-style steering wheel, innovatively equipped with CONSPIT's exclusive 2.99-inch built-in LCD display and compatible with multiple wheel rim designs. With its full-metal body delivering exceptional texture and paired with innovative control functions, it brings a qualitative leap to the entry-level sim racing experience.

2. Features:
Full Aluminum Alloy Structure: Solid Yet Lightweight, Exceptional Texture
* The front and rear shells adopt high-precision die-cast aluminum alloy one-piece molding technology, balancing lightweight design with structural strength. Optimized modal characteristics and acoustic performance inject an extraordinary tactile feel into every operation.

3D Front Panel: A Fine Balance of Aesthetics and Functionality
* Thanks to the flexibility of aluminum alloy die-casting, the 310 APEX features an ergonomically contoured 3D front panel. Continuing the CONSPIT hardware ecosystem design language, the functional zones are arranged in a scientifically rational way, delivering an outstanding control experience.

Microfier Leather Wheel Rim: Craftsmanship, Comfort, and Durability
* It is made of selected wear-resistant, eco-friendly microfiber leather, with seamless stitching at the palm grip area. Paired with CONSPIT's signature purple stitching and central alignment marker, it ensures comfort and precision during long driving sessions.

Professional Controls: 104 Independent Buttons
* Equipped with encoder remapping functionality, it supports up to 104 independent button outputs to meet professional-grade sim racing demands.

8 Customizable RGB Buttons: Precise Feel and Dynamic Interaction
* 500g actuation force with short-travel triggering ensures crisp and responsive feedback. Full-color lighting effects are fully compatible with CONSPIT Link 2.0 and SimHub, enabling easy visualization of telemetry data.

2 Programmable Encoder Wheels: Multi-Dimensional Input, Intelligent Control
* Carefully positioned within thumb reach, each wheel can be remapped to achieve up to 24 input combinations, greatly expanding in-car adjustment options.

Two 7-Way Switches: One-Key Multi-Control for Maximum Efficiency
* Sim racing professional configuration. A single physical button can be bound to 7 different operational commands, significantly enhancing control efficiency.

Dual-Mode Rotary Knobs: One-Touch Switching, Upgraded Operation
* It is equipped with two professional 12-position rotary knobs, supporting software-based one-touch switching between incremental (+/-) and absolute position modes. Each position features RGB backlight indicators, making the operation status instantly clear.

Encoder Remapping: Flexible Switching and Precise Control
* By changing the position of the function knob, the button mapping of the two encoders can be altered, allowing for diverse in-game control combinations.

2.99-Inch Built-In LCD Display: Real-Time Telemetry at Your Fingertips
* It is equipped with CONSPIT's self-developed display, preset with 7 professional dashboard pages showing key telemetry data, with more functional pages to be added in future updates.

Professional Lighting System: 41 Fully Customizable LEDs
* It includes 8 button backlights, 9 RPM indicator lights, and 24 rotary knob position lights. It supports customizable colors and feedback modes. It is fully compatible with SimHub, meeting the indication needs of various racing scenarios.

Magnetic Hall Effect Paddle Shifters: Adjustable Force and Precise Feedback
* The shifters are positioned for natural hand placement, with two adjustable actuation forces (660gf and 900gf) to suit personalized preferences.

Dual Clutch Paddles: Effortless Control
* Professionally tuned actuation force and travel provide an outstanding control experience. The steering wheel supports dual-clutch launch and multiple mode settings, helping you maintain complete control of race pace.

3. Specifications:
* Product Name: 310 APEX
* Main Material: Aluminum Alloy and Steel
* Product Dimensions: 310mm × 310mm × 89mm
* Net Weight: 1520g (excluding quick-release/QR/adapter)
* Screen: 2.99" 800 × 268 Color Display
* Indicator Light: 33 × RGB LED (9 × RPM lights, 24 × rotary knob lights)
* RGB Buttons: 8 ×
* Encoder Knobs: 2 ×
* Rotary Knobs: 2 × 12-position
* Seven-way Switch: 2 ×
* Clutch Paddles: 2 × Modular Hall Sensor Clutch Paddles
* Shift Paddles: Silent Hall-effect Magnetic Sensor Shift Paddles
* Platform: For Windows PC
* Connection Method: USB Direct/Quick-release Contact Connection
* Driver Software: SimHub (RGB) + Conspit Link 2.0

CDR Quick Release:
1. Features:
* CDR Quick Release: Quick release for your steering wheel
* Universal Specification Design: The CDR Quick Release is designed with a specification commonly used in the simulation racing industry, ensuring mechanical compatibility between various bases and steering wheels. It is versatile for multiple use cases and allows for quick, hassle-free wheel changes.
* Auto-Locking Feature: The CDR Quick Release is equipped with an auto-locking mechanism. After pulling up the locking ring, there's no need to manually disengage the ring when mounting the wheel—simply plug and play. When removing the steering wheel, just pull the ring, and it will automatically release.
* Stable Signal & Reliable Performance: The integrated spring contact points inside the CDR ensure stable connections, maintaining efficient data transmission even in environments with electromagnetic interference (EMI). This makes it more reliable than wireless communication solutions.
* Zero Gap Durability: The optimized contact geometry design effectively eliminates ball-lock wear, ensuring exceptional durability with zero gap, even under long-term extreme load conditions.

2. Specifications:
* Product Name: CDR Quick Release
* Product Dimensions: 81mm x 83mm x 83mm
* Net Weight: 0.315kg
* Main Material: Aluminum Alloy
* Connection Type: CONSPIT Base (Pogopin)
* Mounting Holes: 3 x Ф5mm, P.C.D Ф50 mm
* Optional Accessories: 50-70mm Adapter, Quick-Con Adapter, USB-A Adapter Pad, CDR Quick Release Base End

CPP APEX 2-Pedal Set:
1. Features:

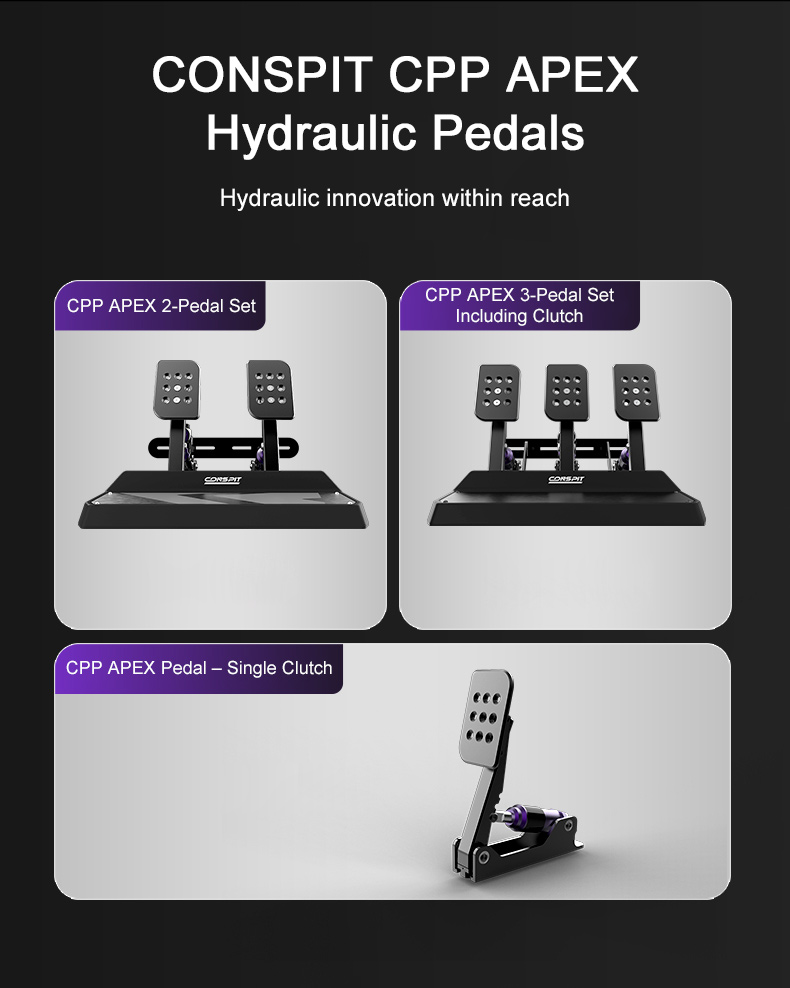

CONSPIT CPP APEX Hydraulic Pedals
* Hydraulic innovation within reach

N+1 Product Concept
* The CPP APEX hydraulic brake pedal set integrates CONSPIT's patented sensing technology with a hydraulic system to achieve precise control and deliver a realistic pedal feel.

Hydraulic System Innovation
* It adopts a longitudinal dual-cylinder integrated design.
* The compact layout places the hydraulic cylinder and elastomer cylinder side by side in a longitudinal arrangement.
* Made with one-piece die-cast aluminum alloy and CNC precision machining, it ensures smooth pedal feel and long-lasting durability.

10MPa Automotive-Grade Hydraulic Sensor
* The 10MPa hydraulic sensor accurately detects brake pressure, combining linear braking with clear feedback, supporting both threshold braking and trail braking.

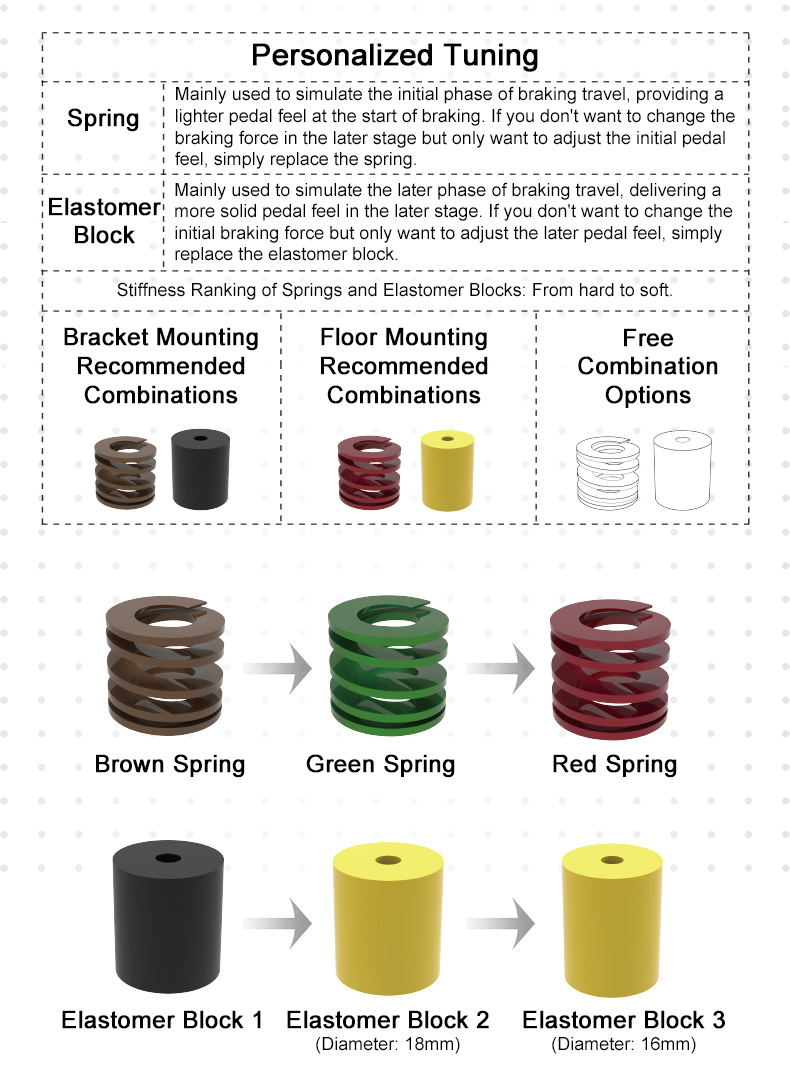

Two-Stage Brake Pedal Feel
* The spring simulates the initial brake contact, while the elastomer provides solid feedback in the later stage. It supports swapping different hardness combinations for personalized tuning.

Enveloped Throttle Design
* The throttle adopts an enveloping structure with internal motion components, providing dust protection while maintaining precise control. Combined with a market-proven Hall sensor, it ensures accurate throttle response.

Precision Manufacturing – Durability and Premium Feel
* The main pedal material is high-grade aluminum alloy, treated with T6 heat treatment and high-precision CNC machining to guarantee structural strength and long service life. The surface undergoes sandblasting and anodizing, offering a refined touch, outstanding appearance, and a balance of durability and premium quality.

Precision Machining and Bearing Design
* Key load-bearing and moving parts are precisely machined and equipped with bearings, ensuring stability and durability under heavy loads and extended use.

Multi-Scenario Deployment
* Competition-grade mounting and ready-to-use solutions.
* Compatible with all mainstream aluminum profile brackets and integrated stands.
* Includes a wall-mount bracket by default to support floor installation (with anti-slip silicone pads).

Expandable Clutch Pedal (Optional)
* The CPP APEX dual-pedal set can be upgraded at any time with an additional clutch pedal, seamlessly expanding driving styles.

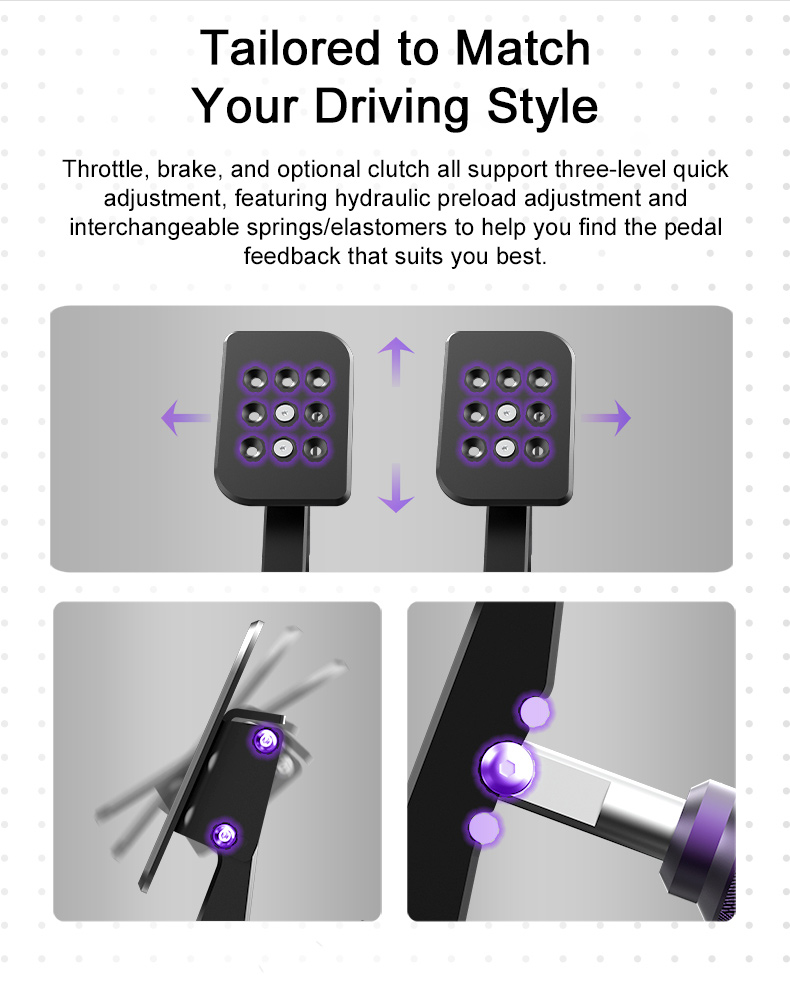

Tailored to Match Your Driving Style
* Throttle, brake, and optional clutch all support three-level quick adjustment, featuring hydraulic preload adjustment and interchangeable springs/elastomers to help you find the pedal feedback that suits you best.

Conspit Link 2.0 Software
* It enables users to quickly configure settings. The software supports custom mapping curves, brake input limits, and other functions, making personalized tuning easier and optimizing the driving experience.

Flexible Connectivity
* The CPP APEX can be directly connected to a PC via USB data cable, or integrated into the system through the rear port of the Ares series wheel base, providing a more convenient and seamless sim racing ecosystem experience.

2. Specifications:
* Product Name: CPP APEX Hydraulic Brake Pedal
* Sensor Type: Hydraulic Sensor
* Sensor Range: 0-100 Bar
* Adjustable Travel: Supported
* Adjustable Force: Three-level adjustment for each pedal
* Hydraulic Cylinder: Standard configuration with adjustable preload
* Clutch Pedal: Optional
* Vibrator: Optional
* Position Adjustment: Adjustable pedal spacing and pedal surface angle
* Product Material: Aluminum alloy, carbon steel
* Included Accessories: Warranty card, user manual, tool kit, screw pack, stickers, adjustment wrench, maintenance consumables, wall-mount bracket, anti-slip silicone pads

Packing List:
* 1 × ARES APEX 8Nm Wheel Base
* 1 × 310 Apex Steering Wheel
* 1 × CDR Quick Release
* 1 × CPP APEX 2-Pedal Set

Packaging Details:
* Weight: 23.9kg
