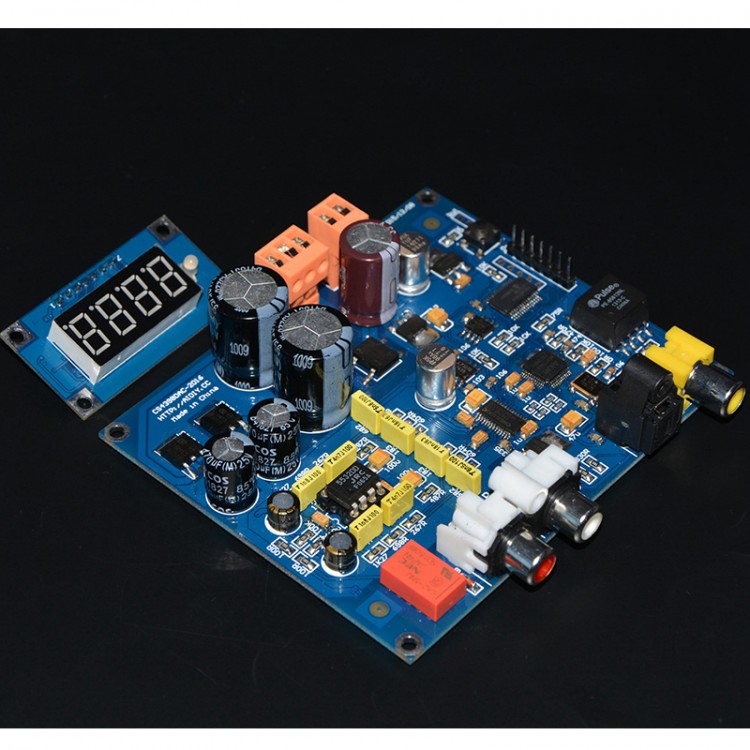

CS4398 DAC Decoder AK4118 Digital Receiver Board with Sampling Rate Display Analog Circuit 5532 for DIY
Specification:
- PCB: 10x8.5cm
- AK4118+CS4398+5532

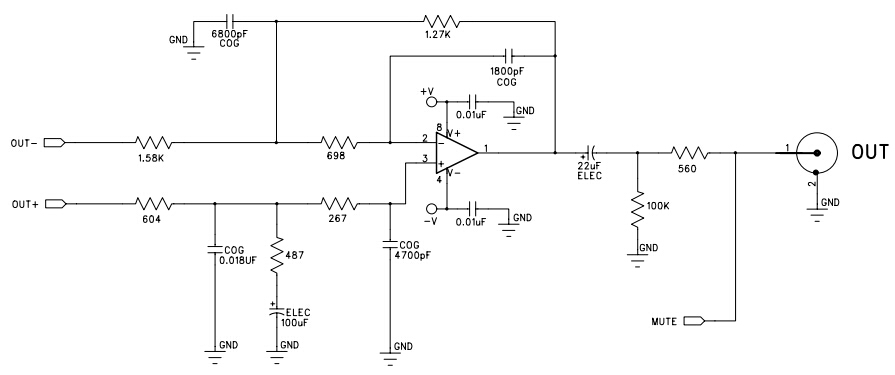

- Anglog part adopts 5532
- A channel optical fiber and a channel coaxial input
- With a key to switch signal source onboard
- Support 16-24bit smapling rate 32-192K SPDIF signal
- DS interface for display board
- Board needs transformer for each channel: AC9V; double AC15V
- DAC chip: CS4398
- Cirrus logic up to 120DB
- Distortion and noise: -107db
Note:
This product is finished product suite
Package included:
- 1 x Board
