CUAV Flight Controller GPS for PX4 PIX Helicopter Multi-rotors VTOL UAV Fixed Wing V5 nano + NEO GPS

Availability: Out Of Stock

  • Price:$298.00
  • Price in reward points: 2980 Reward Points: 30
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $292.04 $286.08 $277.14 $265.22 Contact US
Quantity:

CUAV Flight Controller GPS for PX4 PIX Helicopter Multi-rotors VTOL UAV Fixed Wing V5 nano + NEO GPS

Features:

- Compact but powerful V5 nano flight controller + NEO GPS
- Support for hardware on open source platform PX4 and Autopilot
- Suitable for fixed-wing drones, helicopters, multicopters, FPVs, VTOL, Unmanned Boats, UAVs
- High Performance: Equipped with STM32F765 microprocessor, features 216MHz main frequency, 2M flash and 512K SDRAM. There are four groups of isolation chips and a MS5611 high-precision air gauge.
- Easy to install and dismantle with 2.6mm spacing between IO pins.
- Real-time Data Monitor: Five groups of built-in sensors enhance its safety and stable performance. There are ICM-20689 accelerometer and gyroscope, ICM-20602 accelerometer and gyroscope, BMI055 accelerometer and gyroscope, IST8310 magnetic compass and MS5611 air gauge.

Specifications:

Hardware Parameters:
- Main FMU Processor: STM32F765(32-bit, 216MHz, 2MB flash, 512KB RAM)

Sensors:
- Accelerometer: ICM-20602/ICM-20689/BMI055
- Gyroscope: ICM-20602/ICM-20689/BMI055
- Magnetometer: IST8310
- Air Gauge: MS5611

Interfaces:

- UART Ports: 5
- I2C Ports: 4
- PWM Output: Up to 11
- PWM Input: 4
- Signal Input Protocol for Remote Control: PPM/SBUS/DSM
- RC IN: 1
- PPM IN:1
- RSSI Input: PWM or 3.3V analog voltage
- CAN Standard Bus: 2
- Current & Voltage Input: 1
- Safety Switch: 1
- GPS Port: 1
- Debug Port: 1
- JATG Port: 1
- USB Port: 1 (Type-C)

Supported Models:
- For PX4 Hardware: Fixed-wing Aircrafts, 3-8 Multicopters, Helicopters, VTOL, UAVs, Unmanned Boats

Working Conditions & Physical Parameters:
- PM Working Voltage: 4.5 to 5.5V
- USB Voltage: 5V±0.25V
- Servo Input: 0 to 36V
- Working Temperature: -40 to 85℃

Weight & Dimensions:
- Dimensions: 40 x 60 x 17.5mm
- Weight: 40g

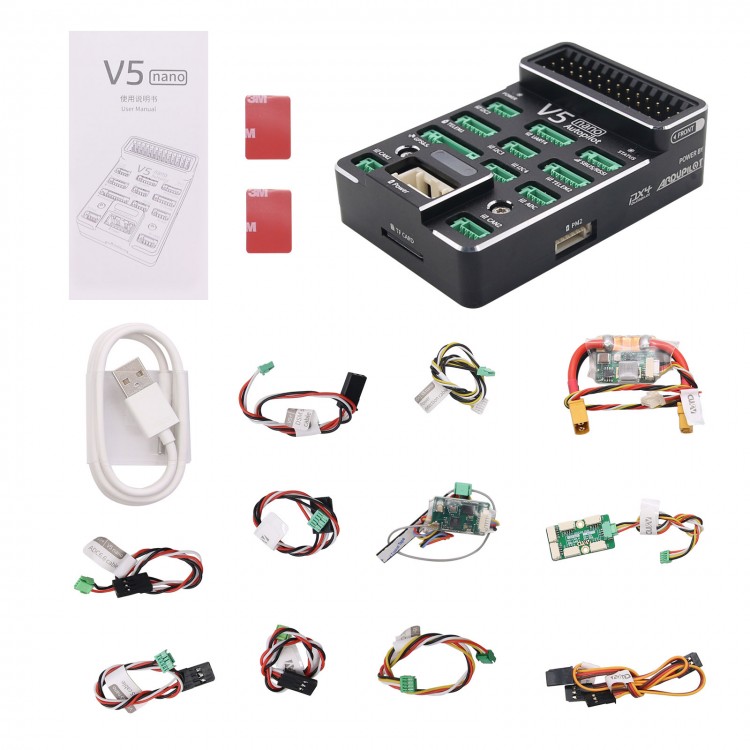

Package Included:
- 1 x V5 nano Flight Controller
- 2 x Dupont Cables
- 1 x ADC6.6 Cable
- 2 x I2C/CAN Cables
- 1 x SBUS Signal Cable
- 1 x RSSI Cable
- 1 x DSM Signal Cable
- 1 x ADC3.3 Cable
- 1 x Debug Cable
- 1 x Safety Switch + Cable
- 1 x Voltage Current Cable
- 1 x PW-Link Module + Cable
- 1 x Power Suppl Module
- 1 x 16GB Memory Card
- 1 x I2C Expansion Board
- 1 x TTL Board
- 1 x NEO GPS
- 1 x GPS Bracket
