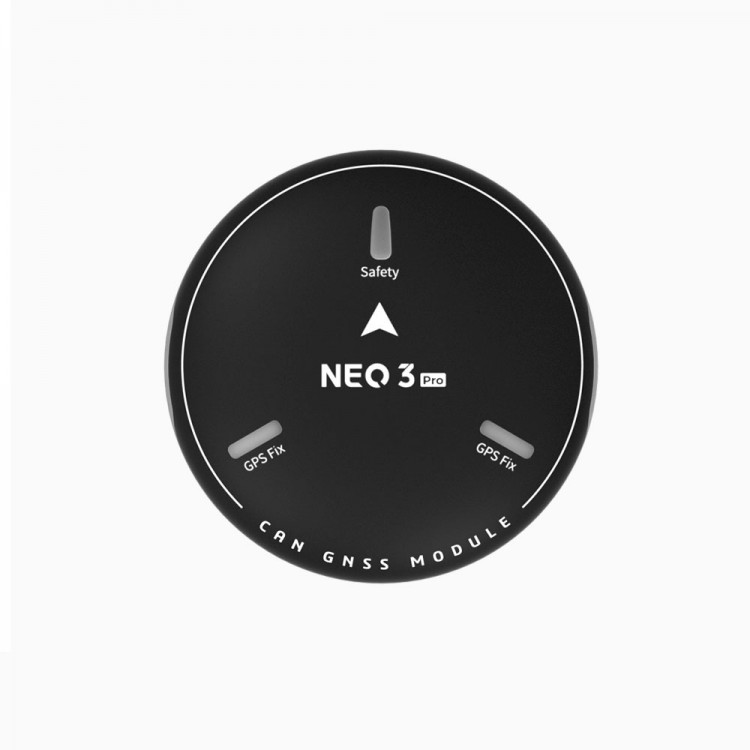

CUAV NEO 3 Pro CAN GNSS Module For U-Blox M9N CAN BUS GPS Module Open Source Pixhawk Flight Control
Advantages:
- NEO 3 Pro GNSS satellite navigation module
- New generation satellite receiver for Ublox M9N
- Positioning accuracy up to 0.7M
- Supports simultaneous reception of signals from four major satellite systems
- UAVCAN bus communication
Description:
NEO 3 Pro has a built-in STM32F4 processor, a UAVCAN protocol communication interface, a brand-new positioning module for Ublox NEO M9N and an industrial-grade RM3100 electronic compass, and supports simultaneous reception by Beidou, Galileo, GLONASS, and GPS satellite systems, with a horizontal positioning accuracy of up to 0.7M. It also integrates safety switches, buzzers, RGB surround lights, altimeters, etc.
Features:
- Buzzer prompt
- Safety switch
- CAN bus
- Barometer
- RGB status light
- Industrial grade electronic compass
More Details:
- Satellite receiver for Ublox M9N: The actual measurement can reach a maximum accuracy of 0.7m
- Industrial grade sensor RM3100, better anti-interference performance
- Beidou and Galileo satellite systems: Concurrent reception of GPS, GLONASS, Beidou and Galileo satellite systems
- For CROCOMM custom antenna: Special four-star high gain antenna
- Built-in high-precision barometer: Built-in MS5611 high-precision barometer to meet the needs of different application scenarios
- Triple filtering design: NEO 3 Pro adopts SAW+LNA+SAW triple filtering design, which effectively
avoids the influence of remote control, digital transmission, and 4G signals on GPS positioning reception
Package Included:
- 1 x NEO 3 Pro Module
- 1 x GPS Stand
- 1 x CAN Connection Cable
