CW2017 Automatic Key Hand Button CW Interface Box for UV Handpiece Audio

CW2017 Automatic Key Hand Button CW Interface Box for UV Handpiece Audio

Functions:
- Support automatic key (support point row exchange, left and right line order exchange)
- Support hand button (support left and right line order exchange)
- Double monitor (CW side tone monitor + hand SP monitor)
- Tone 400-1300HZ adjustable, WPM 5-35 adjustable
- CW sync key signal output
- Support for audio, support PTT automatic trigger functio
- Built-in passive buzzer, support mute
- Rechargeable type (charging cable is not included)
- Built-in USB charging, power management circuit
- No need to start PTT and power switch automatically sleep
- Standby current 26uA, theoretical standby up to 8 years
- Support ISP firmware upgrade
- Panel reserved label writing area, writeable name and so on

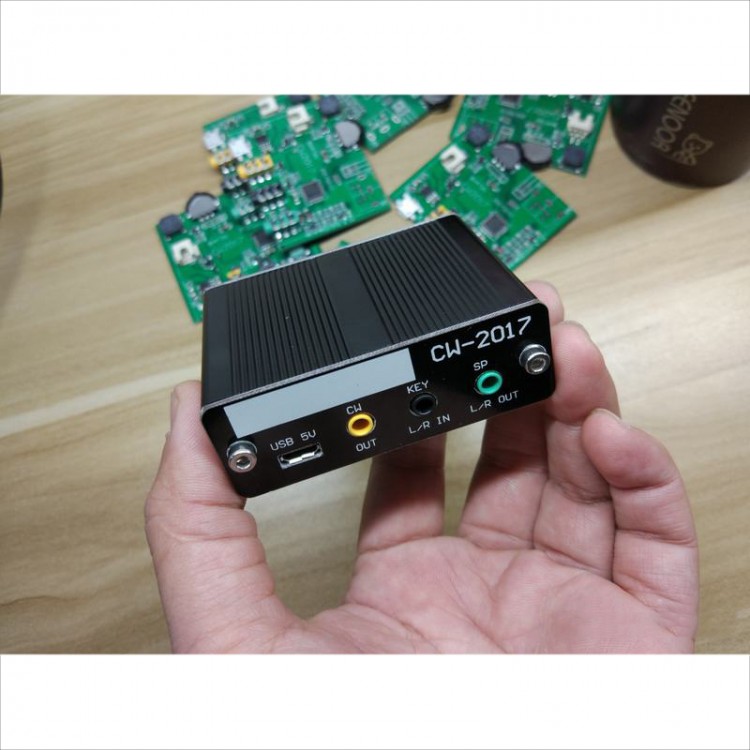

Interfaces:
- SP OUT monitor headphone port (dual channel: CW side tone monitor + hand station SP monitor)
- KEY IN key port (two channels: automatic keys, hand keys)
- CW OUT sync key signal output
- MIRO USB universal socket for charging
- DATA radio interface, support IC2720, FT7800, 7900, 8800, 8900, 817, 857, 897, etc. Support domestic K-hands.
- LED indicator
- STU: Work instructions
- CW: Touch key synchronization indication
- CHG: Charging instructions

Trackwheel Functions:
Function 1:
A left dial, speed control +, report S (5-35)
C right dial, speed control -, report S (5-35)

Function 2:
Press and hold the A button, do not loosen. Touch any left and right button once, cycle switch button model

Hold down the B button and do not loosen it. Touch any left and right button once to cycle the tone.
Press and hold the C button, do not loosen it. Touch any left and right button once, cycle to switch the buzzer switch

Package Included:
- 1 x CW2017 Automatic Key Hand Button CW Interface Box for UV Handpiece Audio
- 1 x CW Cable (2-head, 3.5Plugs)
