D157B AT8236 2-Channel DC Motor Driver Module with Voltage Regulator and Pre-soldered Pin Headers

D157B AT8236 2-Channel DC Motor Driver Module with Voltage Regulator and Pre-soldered Pin Headers

Product Advantages:
The TB6612/AT8236 driver module supports the simultaneous control of dual-channel or quad-channel brushed DC motors with encoders. One board can meet the control needs of most vehicle models. It uses original chips, is equipped with multiple protections, provides a variety of protected regulated power supply outputs, reserves common encoder motor interfaces. And the module can be used high-current switches, making it very suitable for use in scientific research scenarios.

The module can be used with most encoder reduction motors from WHEELTEC.

Features of the Driver Module:
* Supports multiple protections
* Optional voltage regulator
* Source code schematics provided

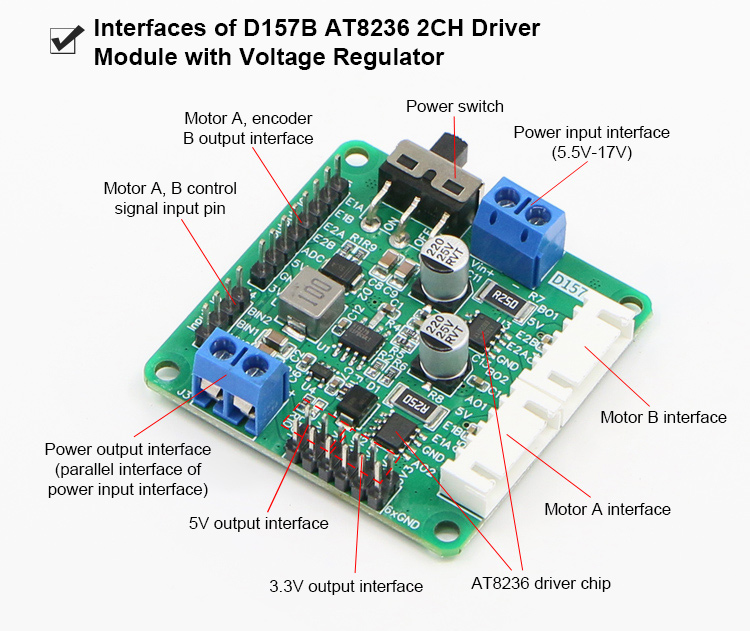

Features of the Voltage Regulator Version:
* It comes with a voltage regulator circuit, eliminating the need for an external logic power supply.
* Built-in power supply interface voltage detection circuit is capable of collecting supply voltage through the MCU ADC.
* Provides multiple 5V 5A power output interfaces with protection
* Provides multiple 3.3V 0.5A power output interfaces with protection
* Compatible with common encoder motors using the XH2.54 6P connector

Supported Motors:
* For TT motors
* MG370 Motor
* MG310 Motor
* MG513 Motor
* Other motors not listed above can also be driven if confirmed by customer service or with similar power

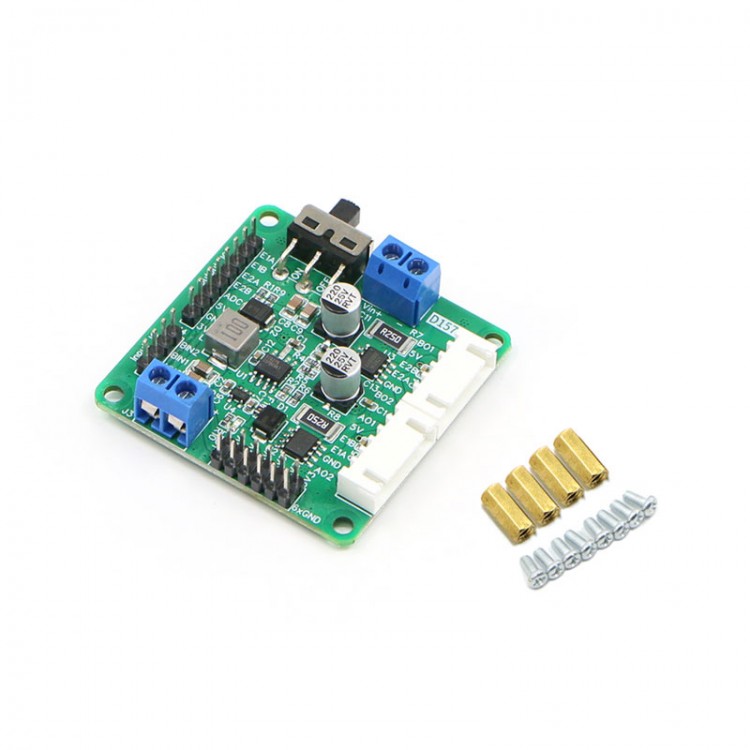

Packing List (D157B):
* D157B AT8236 2CH Driver Module with Voltage Regulator ×1
* M3×10 Double-Pass Copper Standoff ×4
* M3×6 Screw ×8

Packaging Details:
* G.W.: 0.15kg
