DAC-Q5 PRO Bluetooth 5.0 DAC HiFi Lossless Digital USB Turntable Headphone Amplifier DAC Silver

DAC-Q5 PRO Bluetooth 5.0 DAC HiFi Lossless Digital USB Turntable Headphone Amplifier DAC Silver

Advantages:
- Bluetooth 5.0
- Optic fiber input
- Coaxial input
- AUX input
- PC-USB
- CS4398 decoding chip
- QCC3008 Bluetooth chip
- CM6642 USB chip
- TPA6120 headphone amp chip
- Op amp chips (2134 + 275)

Features:
- HiFi level Bluetooth DAC decoder
- Easy connection to various cellphones, computers, tablet PC
- Enabling lossless transmission, CD level sound quality
- Bluetooth 5.0 chip for faster transmission speed and more stable signals, less power consumption, reducing call delay problems happened in 4.2 and bellow versions. It takes 3 seconds to connect
- Independent headphone amp drives headphones up to 600Ω. Can be applied to mainstream headphones on the market
- TPA6120 integrated circuit boasts low distortion, low noise, fine and soft sound.
- The core of DAC is CS4398, which has a dynamic range of 120DB and extremely low distortion. Chip effect is delicate and soft, and resolution is very high. In terms of parameters, all parameters of CS4398 surpass those of WM8740 DAC at the same price.
- Bluetooth 5.0 for APT-X wireless playing. Imported chip with super low delay. Enjoy HiFi music everywhen at any time.
- High-end QCC3008 Bluetooth 5.0 module for dual channels. For APT-X, HFP, A2DP, I2S and TWS.
- Exquisite appearance, all aluminum body. Using CNC and anodic oxidation process to make every corner delicate and beautiful

Specifications:
- Model: DAC-Q5 PRO
- Distortion: 0.01%
- Signal to noise ratio: ≥115dB
- Chipset: CM6642+CS4398+TPA6120+OPA2134+OPA275+QCC3008
- Headphone output power: 1000mW
- Headphone matching impedance: 16-600Ω
- Support sampling rate: USB-24bit/192kHz, optical/coaxial-24bit/192kHz
- Bluetooth transmission distance: 10 meters barrier-free transmission (related to the power of the transmitting device)
- Bluetooth specification: BT5.0 supports APT-X, SBC, AAC
- Product power supply: DC12V
- Frequency response range: 20Hz-40kHz (±0.5dB)
- Input interface: Bluetooth, optical fiber, coaxial, PC-USB, AUX
- Output interface: gold-plated RCA, 3.5mm headphone amplifier
- Machine size: 148.5*98*33mm (not including the sizes of protruding parts)

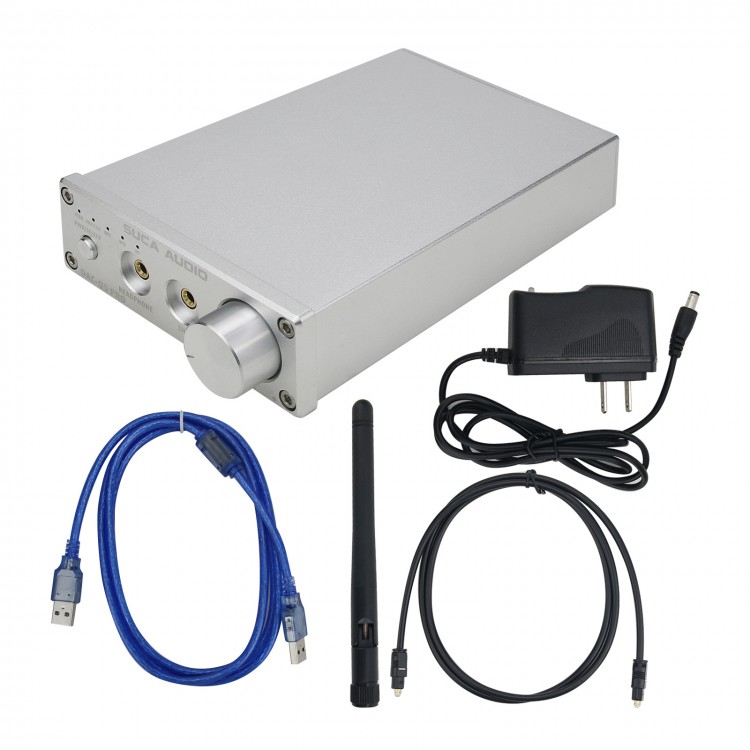

Package Included:
- 1 x Set of DAC




1. PWR: Power supply indicator
2. AUX/COA: AUX/Coaxial indicator (AUX signal is output first after access, the indicator is red/coaxial is blue)
3. OPT: Optic fiber indicator
4. USB: PC-USB indicator
5. BT: Bluetooth indicator
6. Bluetooth antenna
7. Switch/mode input switching button (When power off, short press to power on. When powered on, short press to switch input modes, long press to turn off)
8. HEADPHONE: 3.5mm headphone output (1000mW)
9. IN: AUX analog input
10. VOL: Volume knob (turn clockwise to turn up, turn counterclockwise to turn down)

Attention:
- Bluetooth indicator flashes before Bluetooth paring and connection. It is always on after successful pairing.
- Turn volume knob clockwise to the maximum value, you will hear DiDi sound. Turn volume knob counterclockwise to the minimum, you will hear DuDu sound.


1. RF: Bluetooth antenna port
2. PC-USB: PC-USB input port (To tablet PC/PC/OTG output devices)
3. OPTICAL: Optic fiber input port (To TV/DVD/PC/For PS4)
4. COAXIAL: Coaxial input port (To TV/DVD/PC)
5. R, L: RCA analog output port (Amplifier/active speaker/headphone amp)
6. DC 12V: DC power supply input port (Not exceed 12V)
