DAC8562 DAC8563 Dual Channel 16 Bits DAC Module Output +-10V

DAC8562 DAC8563 Dual Channel 16 Bits DAC Module Output +-10V

Description:

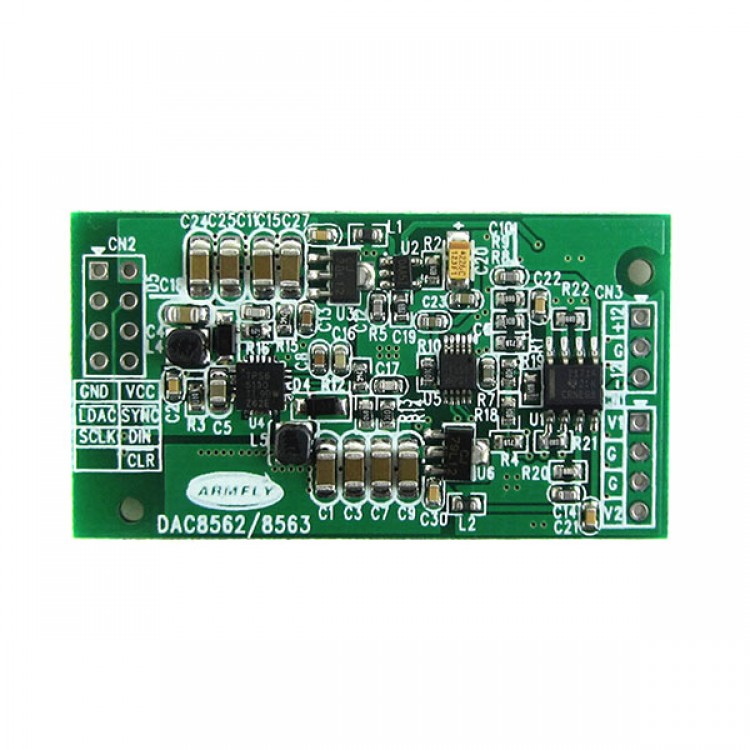

(1) picture of the pin is a distribution, but not welding. Customers can choose their own welding direction.
(2) the two output voltages default configuration is -10V ~ + 10V. If you need to switch to 0-10V, please leave a message when ordering.
Product Name: DAC8563 16-bit DAC module
Model: DAC8563
Product Specifications:
Supply Voltage: 2.7 - 5.5V 3.3V supply [The output voltage can be 10V to plus or minus]
Number of channels: 2-way (through a DAC8563 realize)
Output voltage range: -10V ~ + 10V [Customers can change their output range of 0-10V. Use a soldering iron to switch two joints without the need to replace parts]
Resolution: 16
Power consumption: less than 20mA
MCU Interface: High Speed SPI (50M) support 3.3V and 5V microcontrollers
DAC output analog bandwidth: 350KHz
DAC output response: 10uS to 0.003% FSR

Tips:
(1) DAC8562 and DAC8563 are fully compatible, the only difference is that when the CLR pin is active, DAC8562 data is set to 0, DAC8563 data is set to 32767. Note that this is the DAC's internal data, does not mean that the output voltage. For -10 ~ + 10V output module, DAC8562 output -10V, DAC8563 output 0V.
(2) CLR pin is generally not vacant. Whether it is or DAC8563 DAC8562 chip, as long as the software does not start, the default state of the module output voltage is 0V.

Features:
1, the output and power supply voltage independent; in the module with positive and negative 12V boost circuit.
2 adaptive SCM level (2.7 - 5V can)
3, the output voltage can be reached plus or minus 10V
4, when the power is the default output 0V (when the software does not start)
5, leads to positive and negative 12V power supply pin, enabling customers to use.
