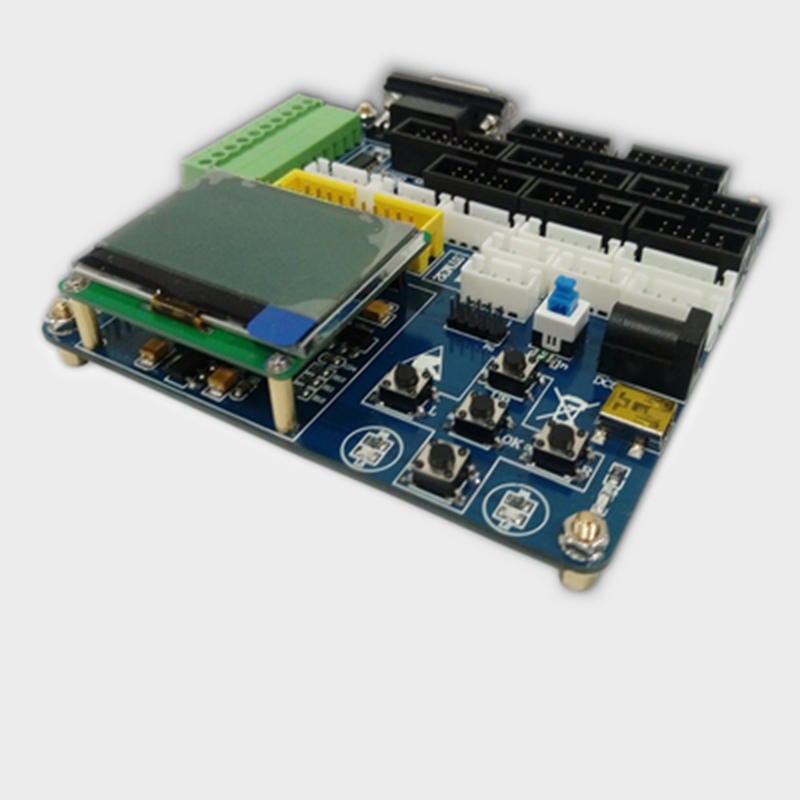

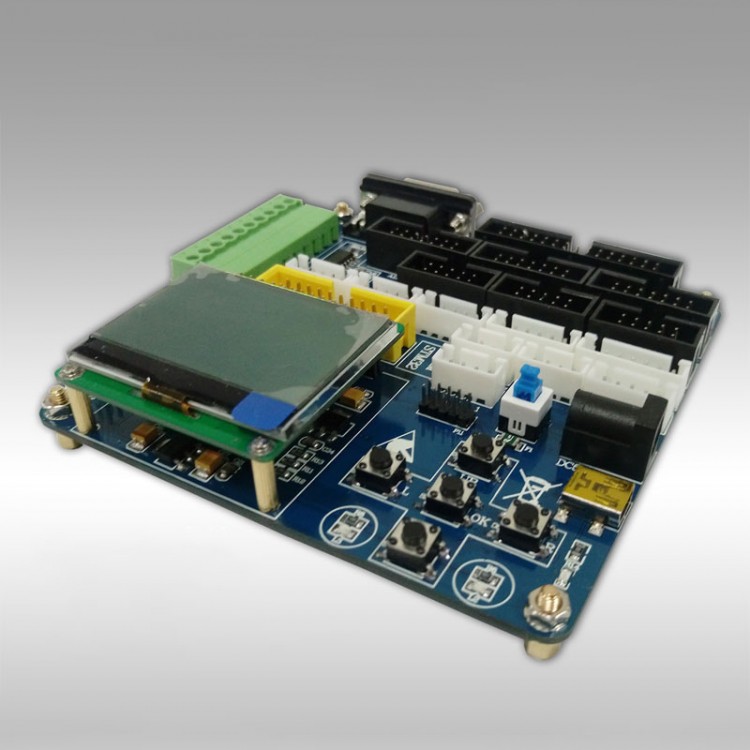

Main Control Board for Data Acquisition Module 16 Bits Four Fully Differential ADC 12864 LCD Display Support 232 Serial
Description:

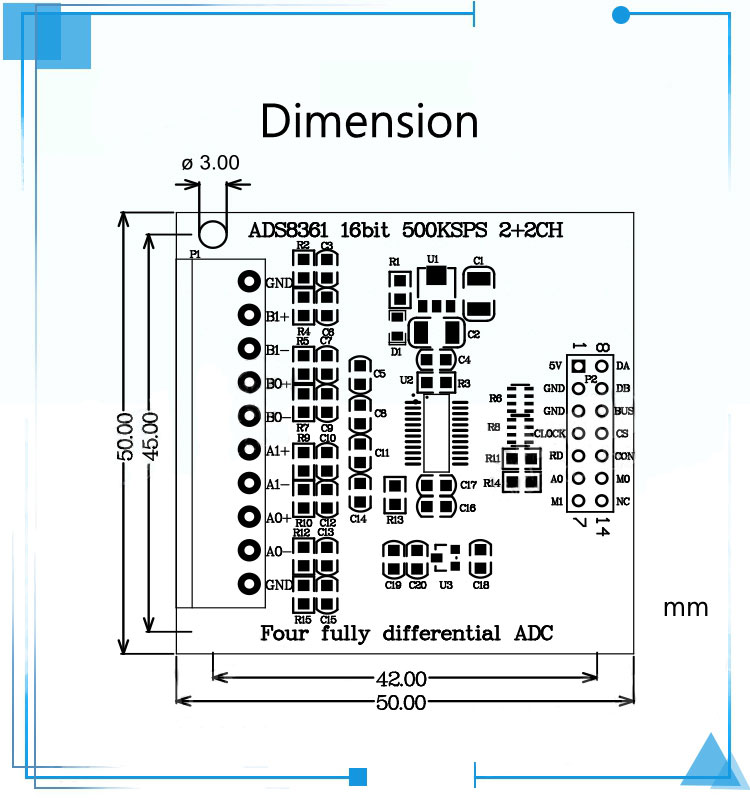

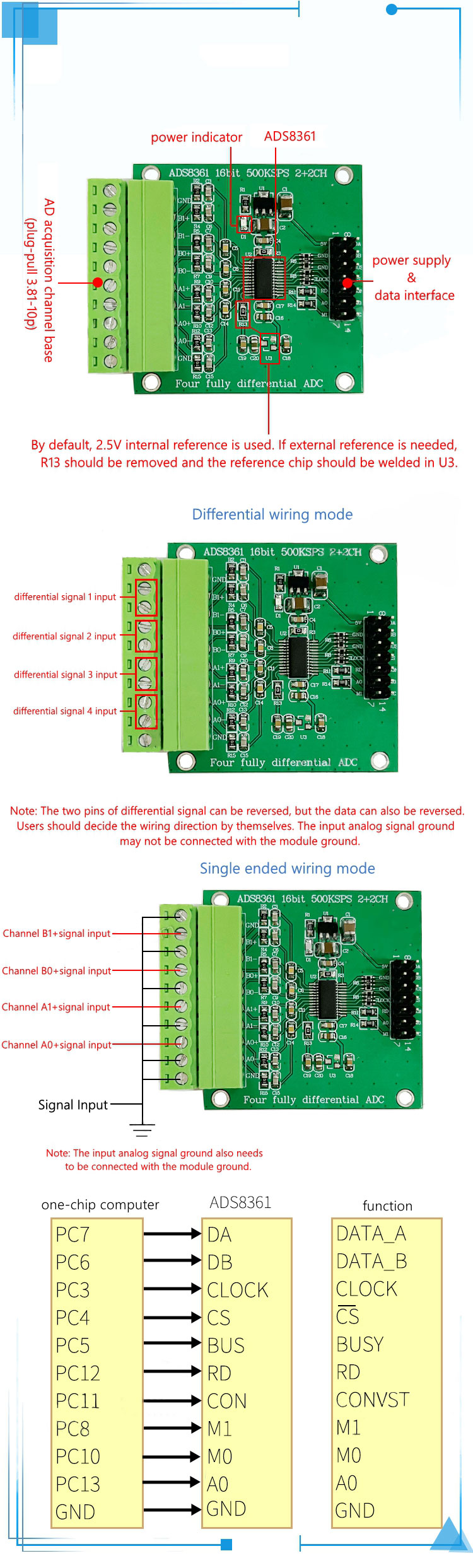

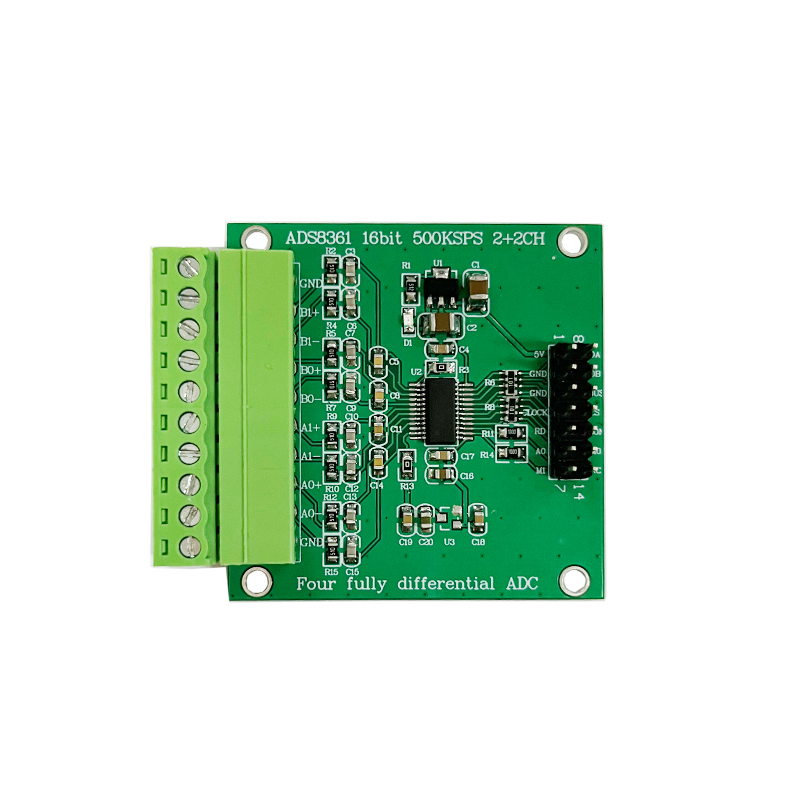

- The AD8361 is a dual channel, 16 bits, 500kSPS, analog to digital (A/D) converter with four fully differential input channels, divided into two pairs, for high-speed synchronous signal acquisition. The input of the sample and hold amplifier is fully differential, and it is differential with the input of the A/D converter. This provides 80 dB excellent common mode rejection at 50 kHz, which is important in high noise environments.
Features:
- STM main control
- 12864 LCD display
- Support 232 Serial port
- Control varied digital module
Package Included:
- 1 x Main control board
Note:
- The module is a low power consumption module, and it is recommended that the power supply should not exceed 5.25V
- Since the module is a high-precision device, it is recommended to use linear power supply to avoid unnecessary interference.
- It is recommended that the input and output signal lines be as short as possible. If they are too long, noise signals may be introduced. Poor contact or poor-quality wire may cause signal attenuation or excessive noise.
- The code delivered is only used by the main control board of our store. The program notes are complete, and the program is not explained. The functions other than the baby's detailed display need to be self-developed.
- If it is necessary to simply test the function of the module, it is recommended to use it with the control board of our shop. After correct wiring, power the control board to achieve signal acquisition and display.
