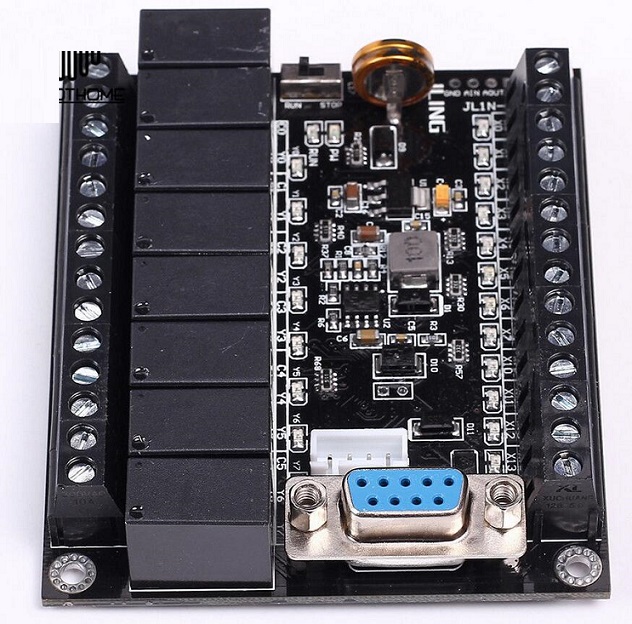

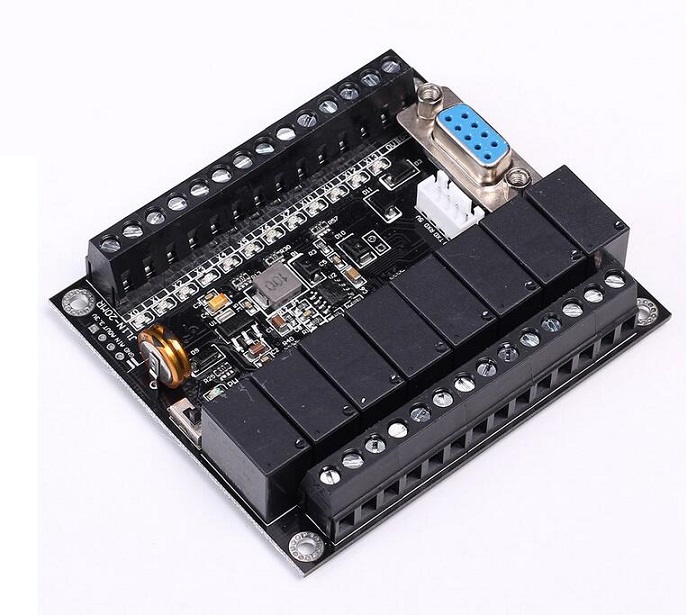

DC 10-28V 5A FX1N-20MR PLC Board Relay Delay Module RS232/TTL

DC 10-28V 5A FX1N-20MR PLC Board Relay Delay Module RS232/TTL

Product Introduction:
1.Power Supply Voltage:DC 10-28V
2.Appearance Size:86*73*20mm
3.Installation Hole Size:78*65mm
4.Input high speed pulse C235,C251 are compatible with FX1N
5.Output point is relay 1A output,and rated current is 5A;it can directly drive DC magnetic valve,AC magnetic valve,AC contactor,AC motor etc

Common Functions:
1.Connect with the power,and the relay 1 will operate for N seconds then power off;relay 2 will operate for N seconds then power off
2.Connect with the power,and the relay 1 will operate for N seconds then power off;relay 2 will operate for N seconds then power off;and cycle in order
3.Connect with the power,and the relay 1 and relay 2 both do not operate;when there is signal or button for triggering,relay 1 will operate for N seconds then power off;and relay 2 will operate for N seconds then power off;above operations will be repeated until next trigger
4.Programming for signal 1 and signal 2,it can achieve random control to relay 1 and relay 2
5.When signal 1 has signal,relay 1 will operate,and relay 2 will power off;when signal 2 has signal,relay 1 will power off and relay 2 will operate
6.It can connect with PNP/NPN sensor signal,and programming on sensor signals can achieve random control to relay
7.When signal 1 has trigger,relay 1 is controlled;when signal 2 has trigger,relay 2 is controlled
8.Connect with the power,control motor will rotate positively for N seconds then rotate negatively for N seconds;then cycle in order
9.When signal 1 has signal,it can control motor positive rotating;when signal 2 has signal,it can control motor negative rotating

Basic Sequential Control:
-Instructions:LD,LDI,OUT,AND,ANI,OR,ORI,LDP,LDF,ANDP,ANDF,ORP,ORF,ORB,ANB,MPS,P,MC,MCR,INV,PLS,PLF,SET,RST,OUT,RST,NOP,END,CALL,CJ,FENDSRET,STL,RET
- Data Process Instructions:ZRST,DECO,ENCO
- High-Speed Process Instructions:SPD,PLSY,PWM,PLSR,HSCS,HSCR
- Location Instructions:PLSV,DRVI,DRVA
- Convenience Instructions:ALT,INCD
- Contactor Comparison
- Instructions:LD+,LD>,LD<,LD<>,LD<=,LD>=,AND=,AND>,AND<,AND<>,AND<=,AND>=,OR=,OR>,OR<,OR<>.OR<=,OR>=
- All instructions support 32 bit instructions and trigger instructions

Notice:
1.This PLC with two program porta:one is 232 interface,and it can directly download program on the computer by USB-232 serial port wire;the other is TTL interface

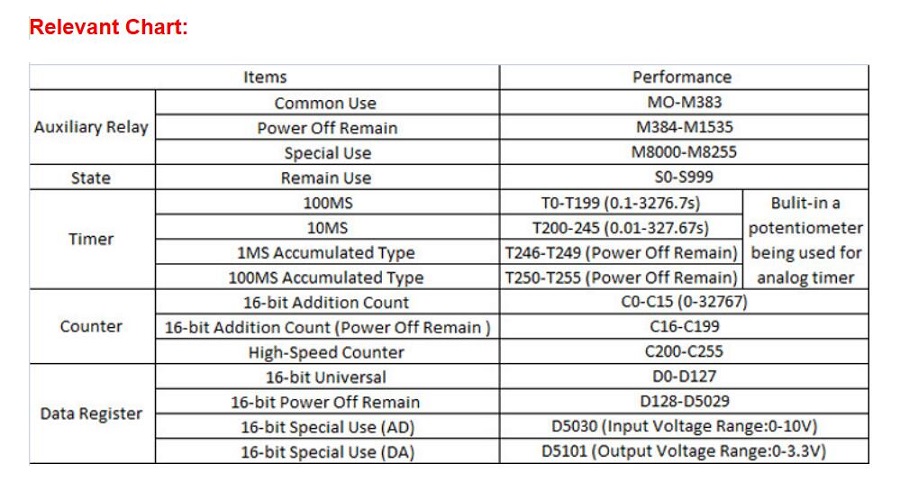

2.This PLC is built-in 1 analog value input AD,and it corresponds with internal data register D5030 (not D8030)
3.It needs external connections when this PLC connects with touch screen or texts,and it can be 232 program port connection
