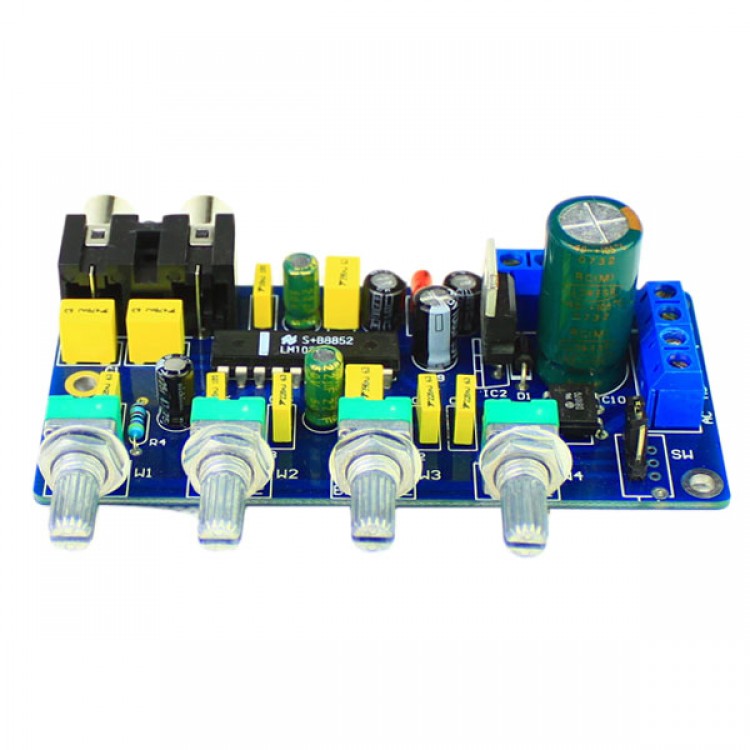

• DC 12V LM1036N AC/DC HIFI Tone Control Board Kit Stereo Audio Amplifier DIY Kit

DC 12V LM1036N AC/DC HIFI Tone Control Board Kit Stereo Audio Amplifier DIY Kit

Availability: In stock, usually dispatched in 1 business day

  • Price:$11.95
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $0.00 $0.00 $0.00 $0.00 Contact US
Quantity:

DC 12V LM1036N AC/DC HIFI Tone Control Board Kit Stereo Audio Amplifier DIY Kit

Description:

- Using the LM1036 DC tonal chip, referring to the official standard circuit design, control range, with a loudness function, the effect is very good. DC voltage controlpotentiometer only single joint can control both channels, and can extend to the plate with an ordinary wire install, without causing noise increases. AC and DC power inputBlock board has to adapt to different occasions, AC voltage range of 12V-15V, 10V-15V DC voltage. The components used in all genuine devices, reliable quality, long-term useis not a problem. Board blue double-sided fiberglass board, fewer components, reasonable alignment, noise, produced a higher success rate, it is suitable for beginners.
- Potentiometer from left to right: bass control, treble control, left-right balance control, volume control
- Supply voltage: 10V-12V AC or DC 12V-15V.
- Board size: about  93mm x 45mm x 30mm (width x deep x high)
- Potentiometer spacing:  about 19mm

Note: the item is only a DIY kit, you need solder them by yourself.


Package included:
1set x LM1036N DC Tone Preamplifier Kit
