Q50 STA350 Digital Power Amplifier Board Kit w/ Coaxial Optical USB Input Support 2.1 & 2.0 Modes

Availability: Out Of Stock

  • Price:$36.93
  • Price in reward points: 369 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $36.19 $35.45 $34.34 $32.87 Contact US
Quantity:

Q50 STA350 Digital Power Amplifier Board Kit w/ Coaxial Optical USB Input Support 2.1 & 2.0 Modes

Description:

Q50 power amplifier board adopts pure digital amplification technology. Supports audio modes, including optical fiber, coaxial and computer USB inputs. USB high-end modules are suitable for computers, LCD TVs, set-top boxes, digital boxes, Blu-ray and HD-DVD devices. Each channel outputs 50W (in 2-channel mode), which can meet the listening requirements of most people.

Q50 power amp board adopts digital power amplifier STA350BW which is specially designed for digital modulation technology products. Support any PWM modulation scheme of other brands (such as three-value incremental, phase-shift or two-value incremental modulation technology). BiCMOS-DMOS process technology manufactures this new amplifier chip. This technology allows the integration of DMOS power stages, bipolar transistors and CMOS structures on the same chip. Support all frequencies from 44.1K to 192K. There is no popping sound at special frequency points.

With treble and bass adjustment, support HIFI mode of pitch pass-through function.

Q50 amplifier board adopts FFX technology. FFX series products are characterized by high sound quality, low power consumption, and environmental protection. Simple start-up technology is used to make its circuit accurately control power supply sequence, which improves the reliability of sound system.

Features:
- Comes with a remote control
- 1602 LCD screen, the device status is clear at a glance
- Can be controlled by remote control and buttons
- Equipped with a tone adjustment system, which can adjust treble and bass according to your listening preferences and matching your speakers. With HIFI pass-through mode
- Computer USB decoding uses classic PCM2704
- With shutdown memory function, simple operation

Specifications:

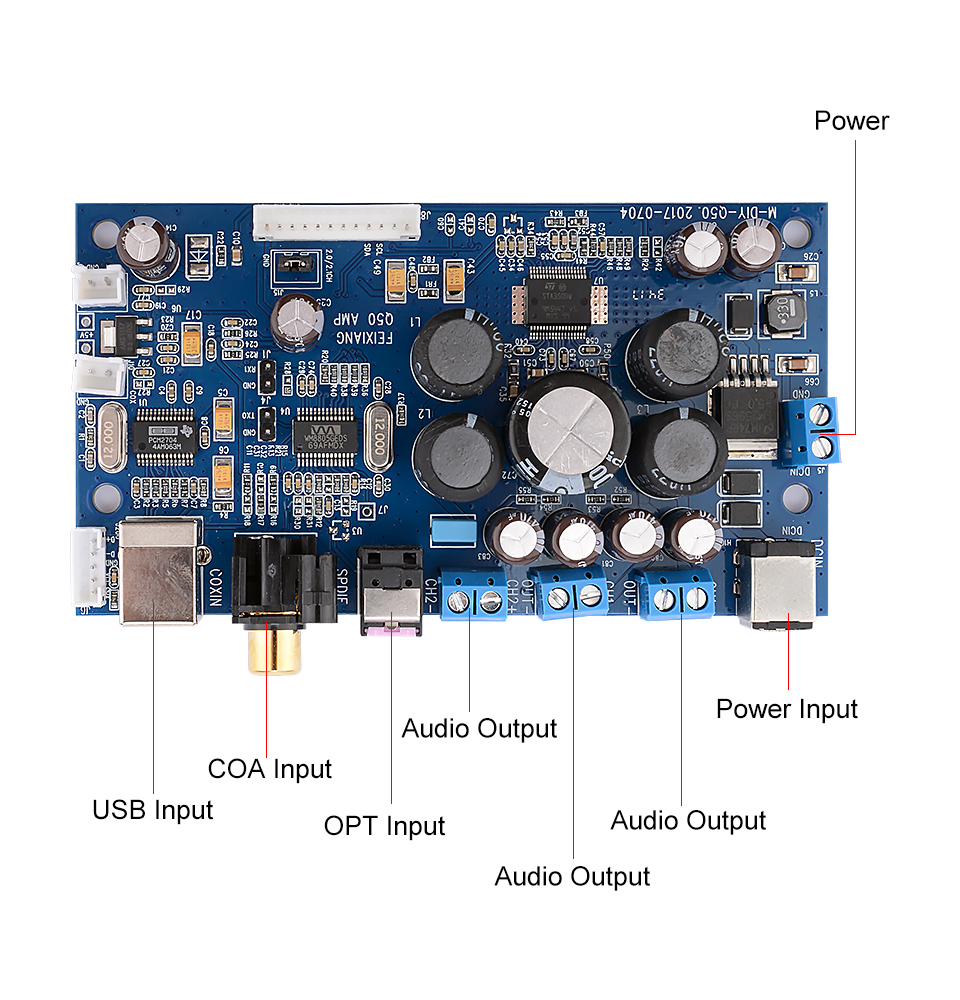

- 3 Input interfaces: USB input/coaxial input/optical input
- Output: 2 channels (stereo) or 2.1 channels
- Sampling Rate: 44.1-192kHz (coaxial and optical fiber); 44.1-48kHz (computer USB)
- Bit width: 16-24Bit
- Frequency response: 20Hz-22kHz
- Impedance adaptation: 4-8 ohm
- Maximum output power: 50W+50W in 2.0 mode; 50W+25W+25W in 2.1 mode
- Dynamic range: 102dB
- Signal to noise ratio: 90dB
- Power consumption: 102W (maximum)
- Power supply: DC 12V-24V, recommended 1A or more

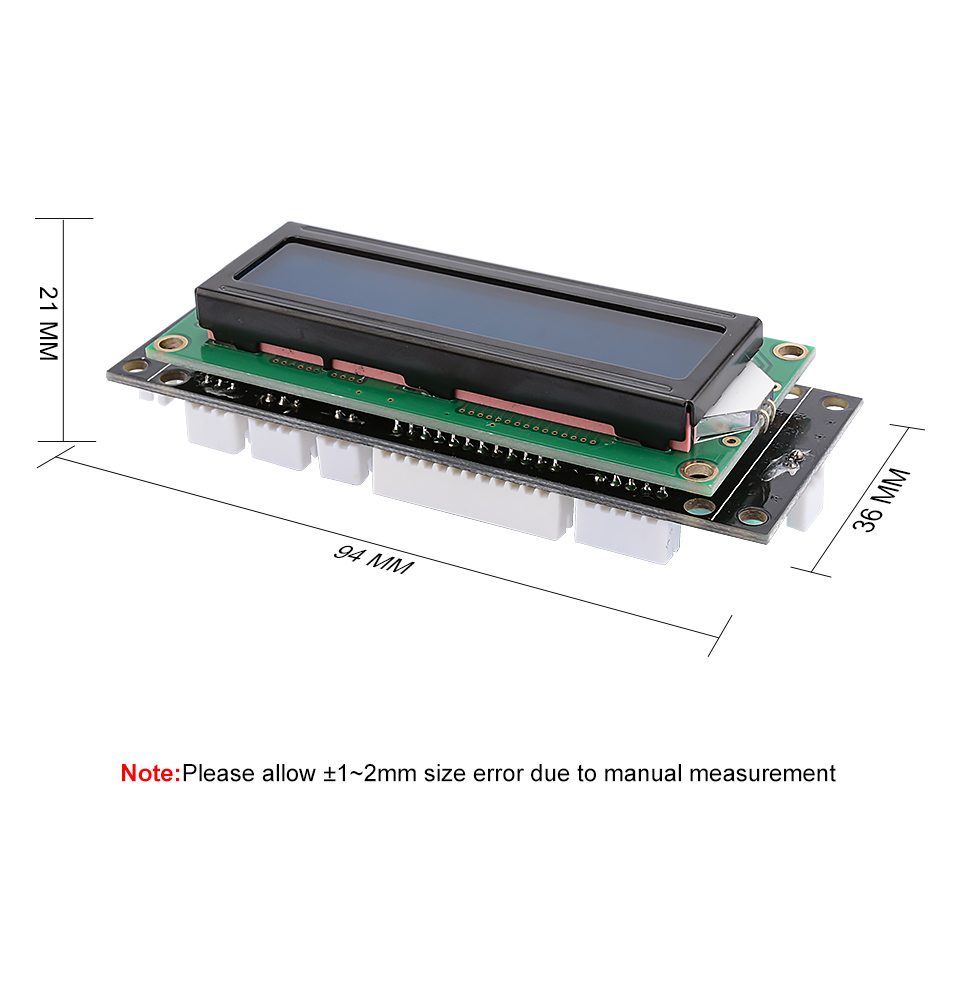

- MCU control board: 94 x 36mm/3.7 x 1.4"

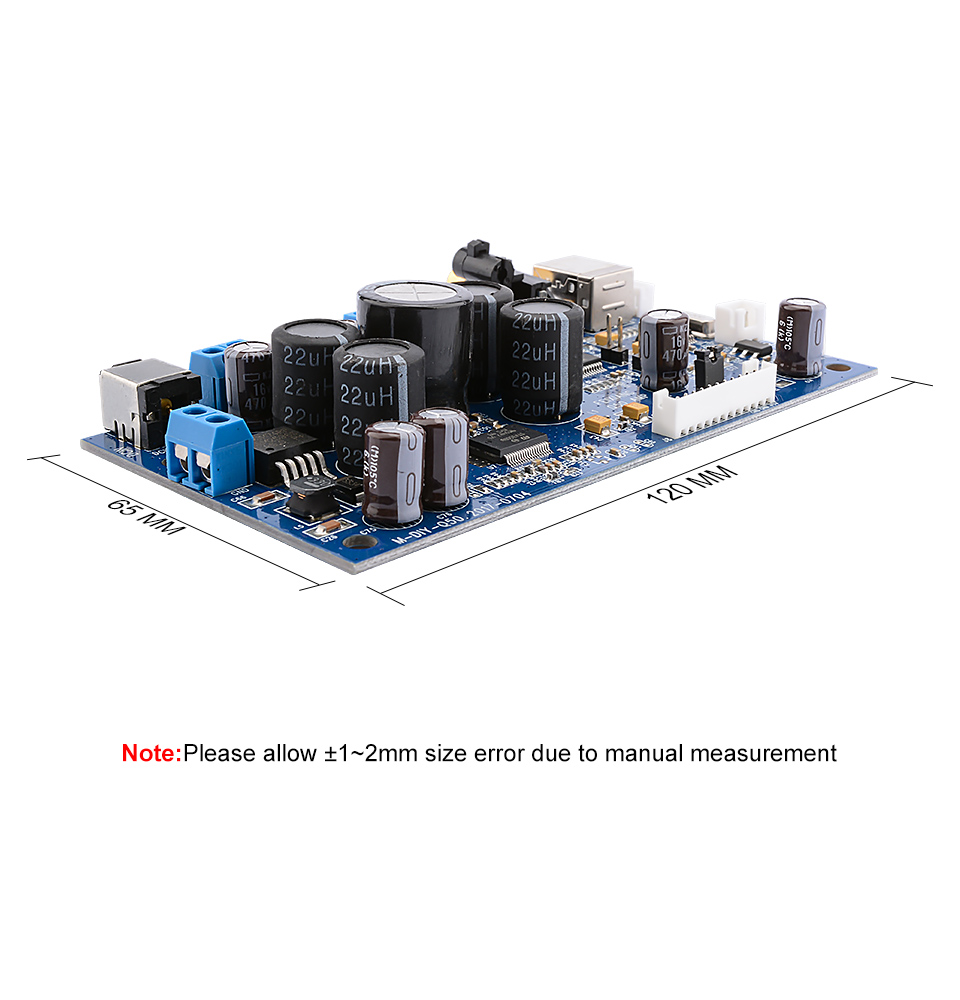

- Power amplifier board: 120 x 65mm/4.7 x 2.6"

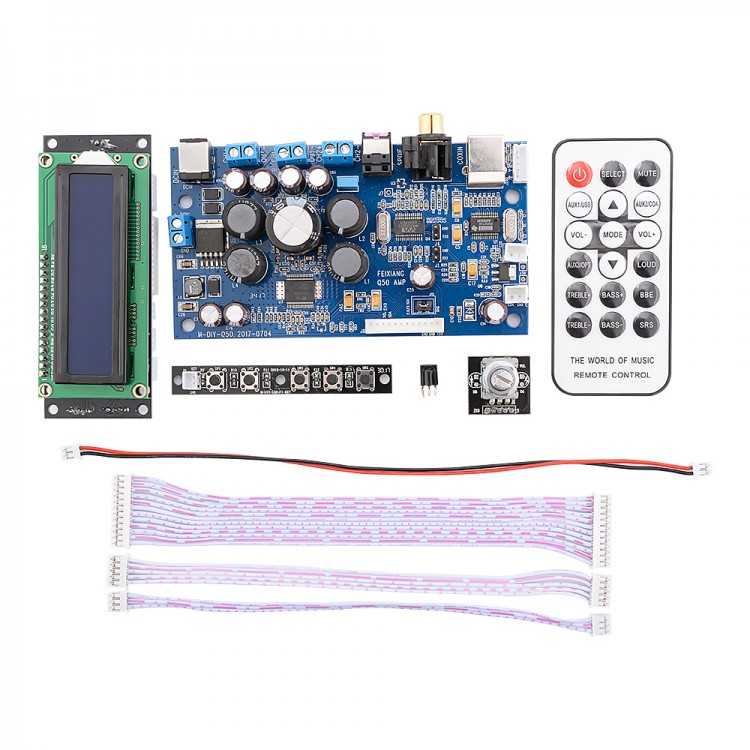

Package Included:

- 1 x Digital Amplifier Board
- 1 x MCU Board with LCD Display
- 1 x Keyboard
- 1 x Encoder
- 1 x Remote Control

Note:
- Power adapter is not included.
- Encoder Functions: It turns clockwise to turn up, turns counterclockwise to turn down. Lightly press the encoder to switch among bass, treble, volume adjustment states. Long press the encoder to be in mute.
- BBE, SRS, MODE, up and down buttons on the remote control are disabled, without practical function.
