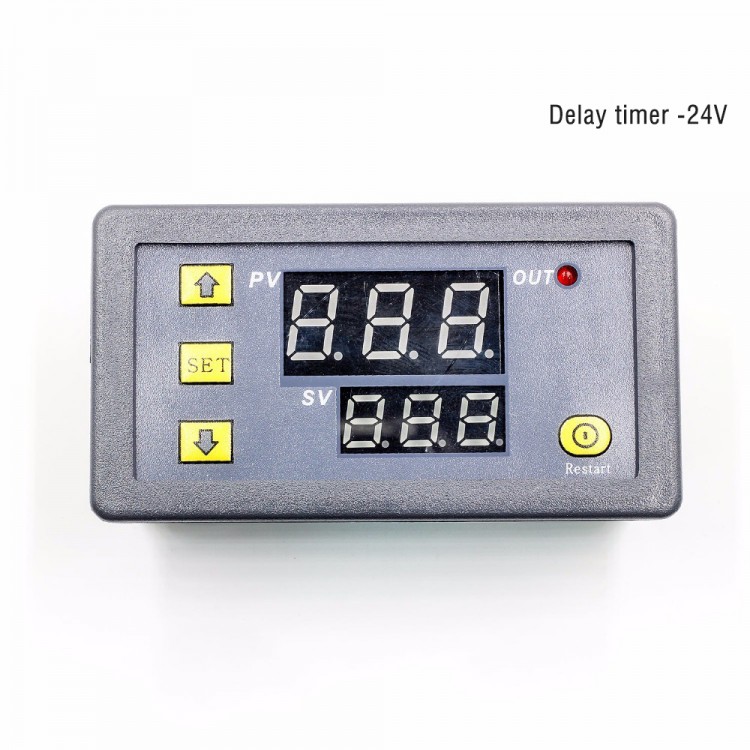

DC 24V Multifunctional Delay Timer Infinite Loop Delay Dual Digital Display Time Relay Module

Specifications:

- Product name: digital display time relay
- Product specifications: Display panel: 79mm*43; Installation size: 71mm*40mm*24mm
- Product power supply: DC 12V or 24V
- Timing range: 0-999 seconds/0-999 minutes/0-999 hours
- Product function: timing/delay/cycle/cover 18 functions
- Maximum working current: 10A; Maximum power: 1500W

Package Included:
- 1 x Module

How To Use:
After setting data, you must wait for 6s. After 6s, the module will automatically save the setting data.

Short press SET button once to enter time setting mode, and red LED will flash. Adjust timing time T1 by pressing ↑ button or ↓ button. After setting T1, short press the SET key again, and green digital tube flashes. Set timing time T2 by pressing ↑ button or ↓ button. After the T2 time is set, short press the SET button again, the system will automatically save the setting time or wait for 6s, and the module will automatically save the data after 6s.

Long press SET to enter parameter setting mode. There are two sets of parameters for users to choose, namely P0 and P1. In the current mode, short press SET to switch between P0 and P1. Under the P0 parameter, you can set the timing mode that suits you by pressing ↑ button or ↓ button. Under the P1 parameter, the working mode can be set by pressing ↑ button or ↓ button.

P0--0: T1 timing time mode is seconds.
P0--1: T1 timing time mode is minute.
P0--2: T1 timing time mode is hour.
P1--0: The relay is closed after delaying T1 time (T1 timing).
P1--1: The relay is released after a delay of T1 time (T1 timing).
P1--2: The relay is closed after a delay of T1 (T1 timing), and after a delay of T2, the relay is released (T2 timing), and it ends.
P1--3: After the delay of T1 time, the relay is released (T1 timing), and after the delay of T2 time, the relay is closed (T2 timing), and it ends.
P1--4: The relay is closed after the delay of T1 time (T1 timing), and then the relay is released after the delay of T2 time (T2 timing), and the cycle is repeated.
P1--5: The relay is released after a delay of T1 (T1 timing), and after a delay of T2, the relay is closed (T2 timing), and the cycle is repeated.

Example:
For example, a customer needs to turn on for 10 seconds and turn off for 20 seconds, and the cycle will continue. The setting method is as follows:
T1 set time 10, T2 set time 20
P0-0 (T1 timing range is seconds)
P1-5 (The timer working mode is to work first and then stop and keep circulating)

Restore Factory Settings:
Data is messed up due to the wrong setting. When you cannot set it, you can choose to restore the factory settings. Press and hold SET and then power on.

Product Functions:
- Function 1: This product can be used in timing, delaying, cycle timing, intermittent timing, etc.
- Function 2: This product can be used in raft fishing machine, slow-down machine DIY.
- Function 3: This product can be used in timing switch machine, timing alarm control board.
