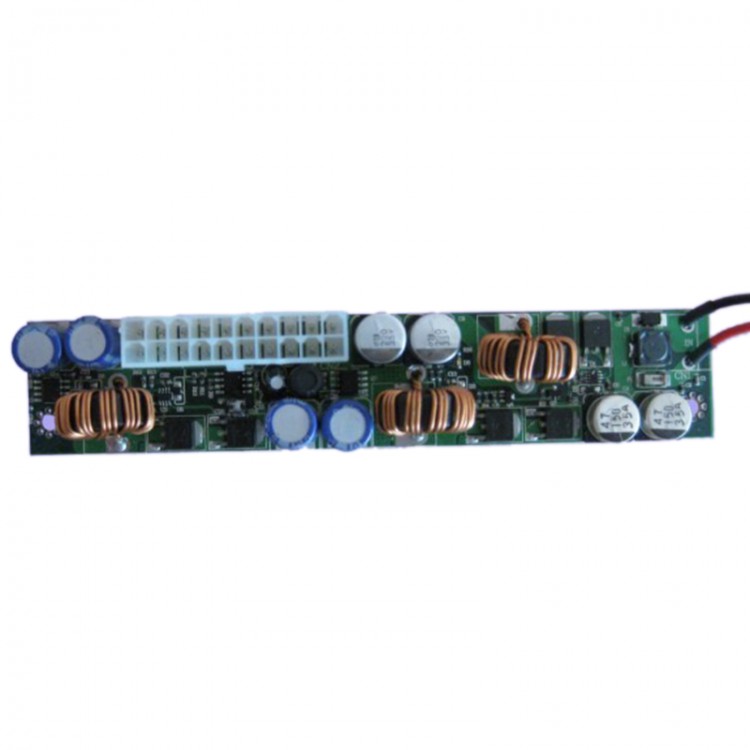

• DC-ATX DC16-28V 120W Power Supply Module PPE-120W 20P for Automobile Application

DC-ATX DC16-28V 120W Power Supply Module PPE-120W 20P for Automobile Application

Availability: In stock, usually dispatched in 1 business day

  • Price:$27.50
  • Price in reward points: 275 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $26.95 $26.40 $25.58 $24.48 Contact US
Quantity:

DC-ATX DC16-28V 120W Power Supply Module PPE-120W 20P for Automobile Application

Description:
PPD-120W-ITPS, DC/DC ATX power supply for automobile application,16-28VDC input.
 +5V,+12V,+3.3V,-12V,+5VSB and PG (power good signal) outputs.

Specification:
1.The smallest 16-28V DC to DC power supply
2.Convertor in the world.
3.Adopt industrial solid capacitor, ideal for being used in harsh evironment
4.High performance with high heat-stand feature, more realiable
5.Fanless DC-DC solution for 100% mute operating .
6.Compact design, special for mini-itx and 1U case.

Output Min Load(A) MAX Load(A) Regulation:
 +12V 0 5 ±5%
 +5V 0 5 ±5%
 +3.3V 0 5 ±5%
 -12V 0 0.1 ±15%
 +5VSB 0 2 ±5%

Parameters:
1.Dimensions(mm): L54x W40xH16
2.DC Input: 16-28V
3.DC Output : 120W
4.Input Current: Max. 15A
5.Efficiency: above 92%
6.MTPF: 90,000H
7.Operating Temperature: 0~ 75deg C
8.Storage Temperature: -40~ 70deg C
9. When working qith maximum loading for long time, the fan is necessary. If mo fan, only work for 30s, and the load will reduce to 80% when working for long time

Package included:
- 1 x Power Supply Module
