DC-DC 15A Buck Adjustable 4-32V 12V to 1.2-32V 5V Converter Step Down Module DMI

Availability: In stock, usually dispatched in 1 business day

  • Price:$17.16
  • Price in reward points: 172 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $16.82 $16.47 $15.96 $15.27 Contact US
Quantity:

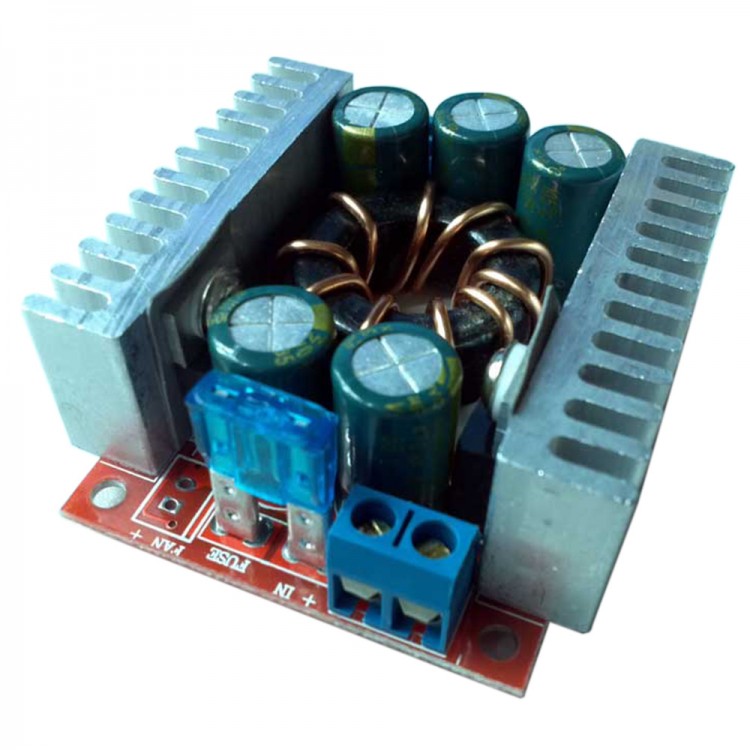

DC-DC 15A Buck Adjustable 4-32V 12V to 1.2-32V 5V Converter Step Down Module DMI

Description:

- Module : 15A synchronous-rectified buck
- Module Properties: non-isolated step-down module (BUCK)
- Input voltage: DC4-32V (Limit 36V)
- Output voltage: DC1.2-32V continuously adjustable
- Minimum differential pressure input and output: 1V
- Output current :0-15A 10A long natural cooling, the temperature does not exceed 60 degrees, the peak of up to 20A. Decrease the amount of higher ambient temperatures use.
- Operating temperature: -40 to +85 ℃
- Operating Frequency: 150KHz
- Conversion efficiency: Up to 98% (efficiency and input and output voltage, current, pressure related)
- Short circuit protection: Yes (limit current 25A) input fuse is 15A
- Over-temperature protection: Yes (over-temperature automatically reduce the output current)
- Input Reverse Polarity Protection: None (if required in the input string into the diode)
- Installation: four 3mm screws
- Connection: terminals, solderless, V-IN as an input, V-OUT is an output
- Module dimensions: length 60mm width 51mm height 22mm

Application:
This module can be applied to the input voltage is higher than the output voltage of the buck areas, such as batteries, power transformers, DIY adjustable power supply, 24V car T of the power supply, automotive LED lights with power, industrial equipment buck, 12V turn 3.3 V, 12V turn 5V, 24V turn 5V, 24V to 12V and so on

Package includes:
- 1 *Step Down Module
