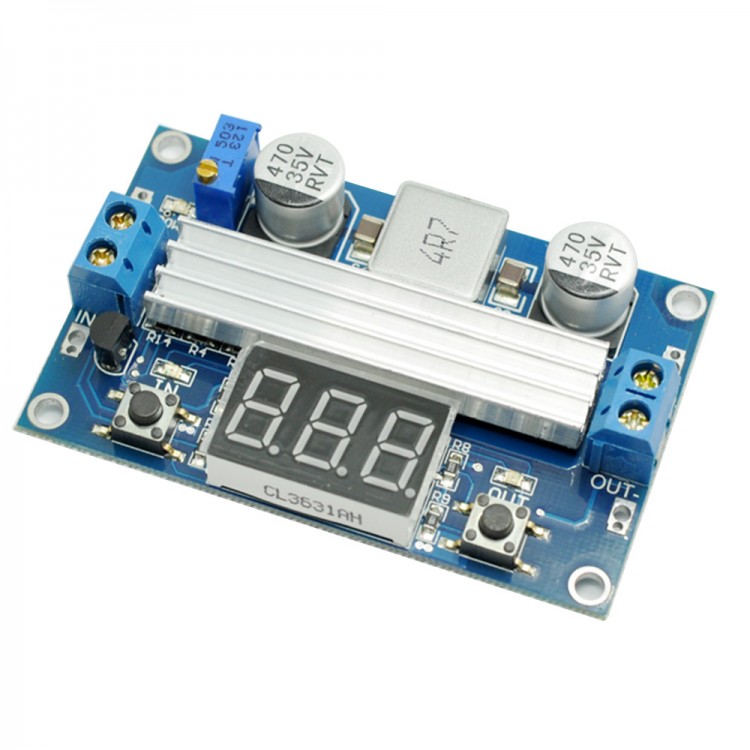

DC DC Adjustable Step Up Boost Module Power Supply Board 65W for Car DIY
Parameters:
- Input voltage: 3 ~ 35V DC (Note: When the input voltage is less than 4V, onboard load voltage table failure)
- Input current: 9A (max)
- Output voltage: 3.5 ~ 35V DC (this board is a step-up plate, the output voltage > =the input voltage)
- Output current: 6A (max) (recommended < 5A)
- Output power: 65W, can reach 100W when enhance the cooling effect
- Conversion efficiency: 96.7% (maximum)
- Output ripple: 40mV (TYP)
- Board load voltage range: 4~40V, error +-0.1V
- Size: 68X42X13MM
- Weight: 38G
Application；
- DIY a voltage regulator, input 5V,output can be 5-35V
- Supply power to electronic devices
- As power suppl yto car, laptop, PDA or other digital products
Package list:
- 1 x DC DC Adjustable Step Up Boost Module
