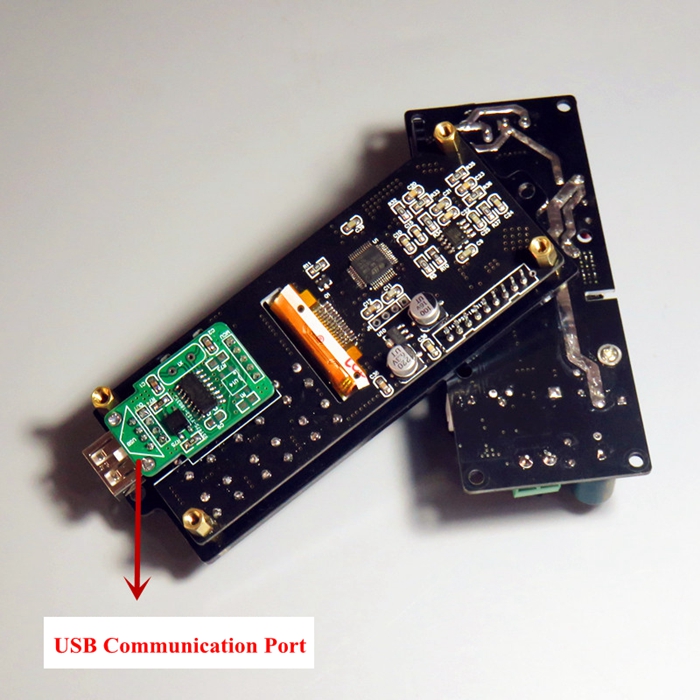

DC-DC Step Down Buck Converter Power Supply Module CV CC 6V-62V to 0-60V w/USB Communication Port

DC-DC Step Down Buck Converter Power Supply Module CV CC 6V-62V to 0-60V w/USB Communication Port

Features:
- Adopted advanced microprocessor to precisely regulate the output voltage and current

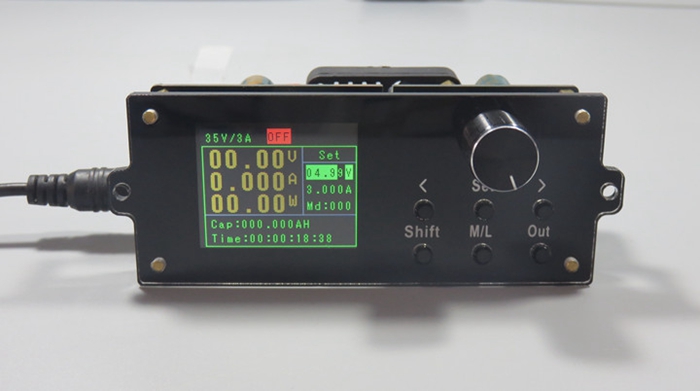

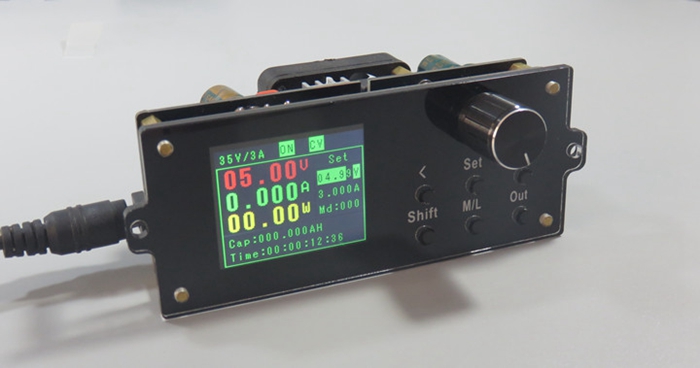

- 1.8'' Color LCD display the output voltage, current, capacity, time and the working statues of the power supply in real time

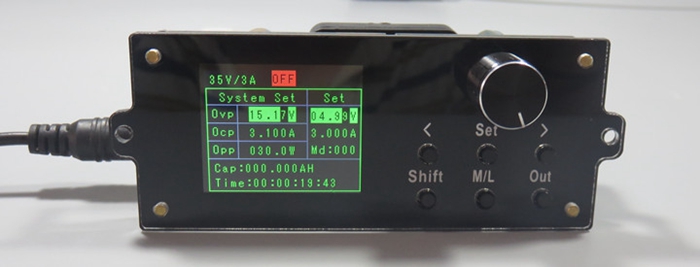

- Output Protection: with OVP, OCP, OPP setting

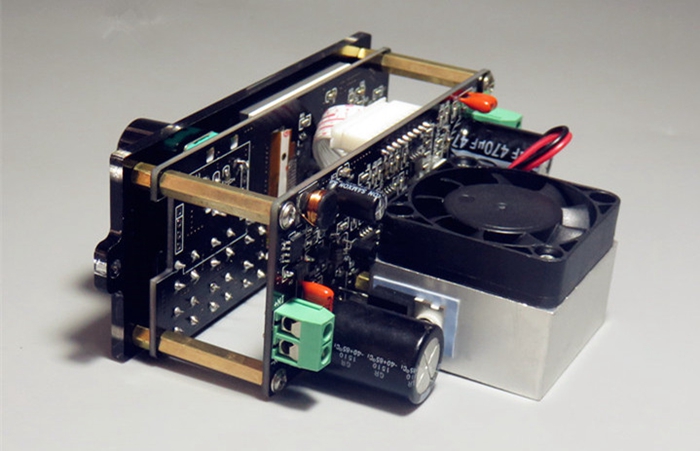

- Comes with a cooling fan for heat dissipation
- Input Protection Function: reverse connection protection
- High power, high efficiency and stable performance
- Enable constant voltage and constant current output

Specifications:
- Model: DPX6005S
- Input Voltage Range: 6-62V
- Output Voltage Adjustable Range: 0-60V (The input should be higher than the output)
- Output Current Adjustable Range: 0-5A
- Input Protection: Reverse connection protection
- Output Protection: OVP, OCP, OPP
- Output Power: 0-300W
- Output Voltage Setting Resolution: 10mV
- Output Current Setting Resolution: 10mA
- Output Ripple: <100mVpp (Input 48V, output 24V, current 5A)
- 100Hz Wave Transmission Ratio: <1/10000
- Voltage/Current Display Accuracy: 10mV, 10mA
- Voltage Display Error: +_1%+20mV
- Current Display Error: +-2%+20mA
- Response Time: <50ms
- Storage Operation: M0-M9 10 groups of storing parameters
- Cooling Mode: On-board radiator & cooling fan
- Cooling Fan Operation Condition: output current >1A or output power >40W
- Operation Temperature: 0~60℃; Storage Temperature: -20~70℃
- Operation Environment: Indoor use & the max humidity 80%
- Weight: 170g

Package Included:
- 1 x Buck Converter with Fan
