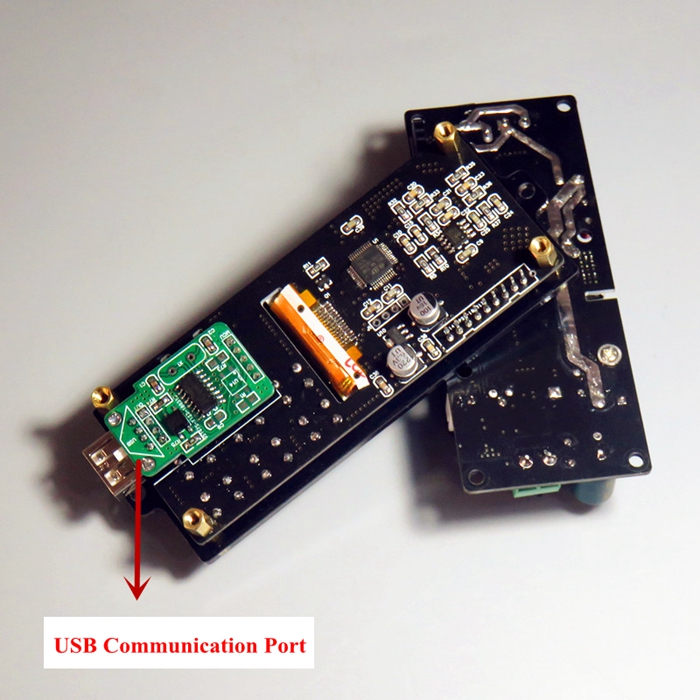

DC-DC Step Down Buck Converter Power Supply Module CV CC 6V-75V to 0-62V w/ USB Communication Port

Availability: In stock, usually dispatched in 1 business day

  • Price:$46.11
  • Price in reward points: 461 Reward Points: 5
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $45.19 $44.27 $42.88 $41.04 Contact US
Quantity:

DC-DC Step Down Buck Converter Power Supply Module CV CC 6V-75V to 0-62V w/ USB Communication Port

Features:

- Adopted advanced microprocessor to precisely regulate the output voltage and current

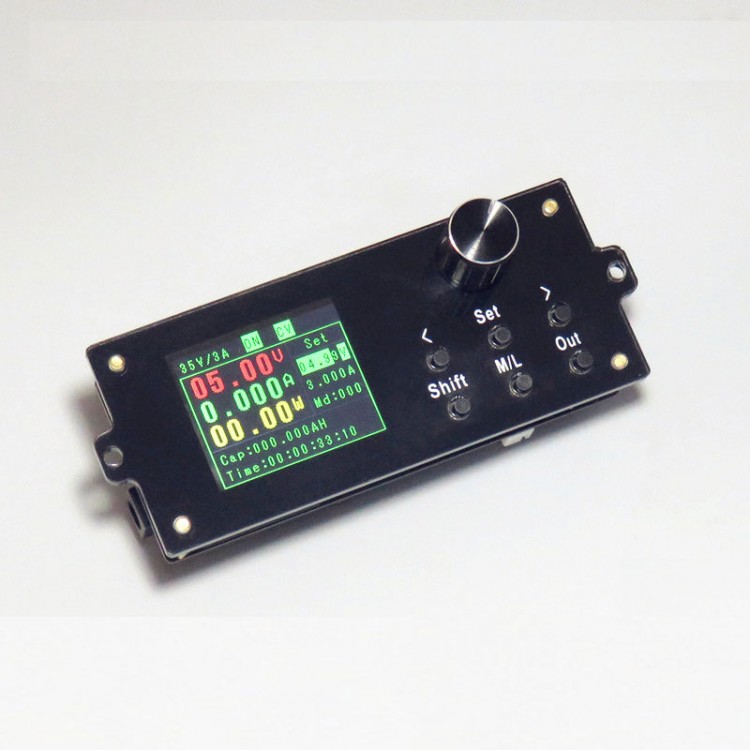

- 1.8'' Color LCD display the output voltage, current, capacity, time and the working statues of the power supply in real time
- Output Protection: with OVP, OCP, OPP setting
- Comes with a cooling fan for heat dissipation
- Input Protection Function: reverse connection protection
- High power, high efficiency and stable performance
- Enable constant voltage and constant current output

Specifications:
- Model: DPX6012S
- Input Voltage Range: 6-75V
- Output Voltage Adjustable Range: 0-62V (The input should be higher than the output)
- Output Current Adjustable Range: 0-12A
- Input Protection: Reverse connection protection
- Output Protection: OVP, OCP, OPP
- Output Power: 0-74W
- Output Voltage Setting Resolution: 10mV
- Output Current Setting Resolution: 10mA
- Output Ripple: <200mVpp (Input 48V, output 24V, current 5A)
- 100Hz Wave Transmission Ratio: <1/10000
- Voltage/Current Display Accuracy: 10mV, 10mA
- Voltage Display Error: +_1%+20mV
- Current Display Error: +-2%+20mA
- Response Time: <80ms
- Storage Operation: M0-M9 10 groups of storing parameters
- Cooling Mode: On-board radiator & cooling fan
- Cooling Fan Operation Condition: output current >1.5A or output power >50W
- Operation Temperature: 0~60℃; Storage Temperature: -20~70℃
- Operation Environment: Indoor use & the max humidity 80%
- Weight: 190g

Package Included:

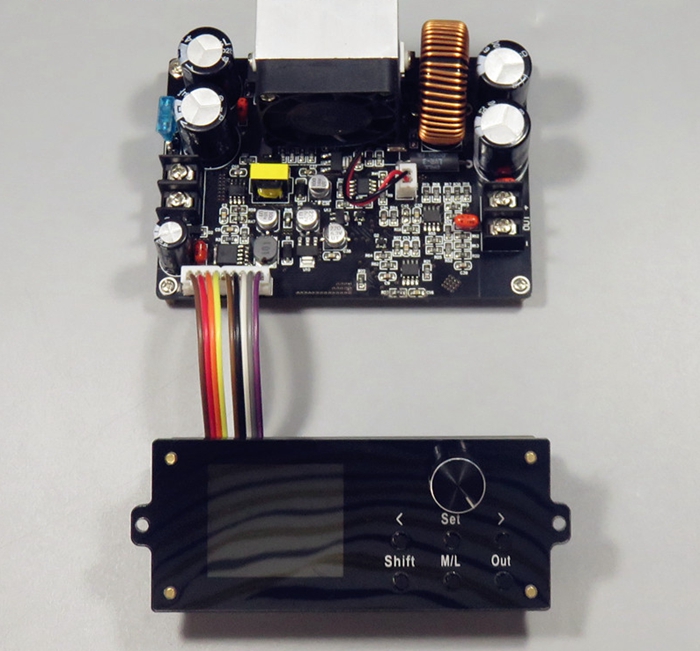

- 1 x Buck Converter with Fan
- 1 x Digital Display
