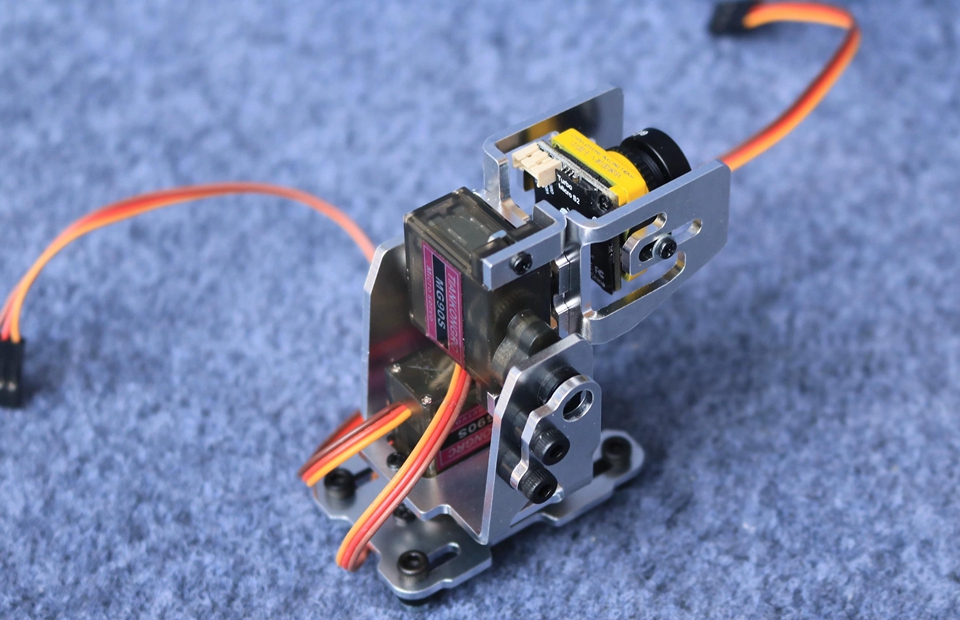

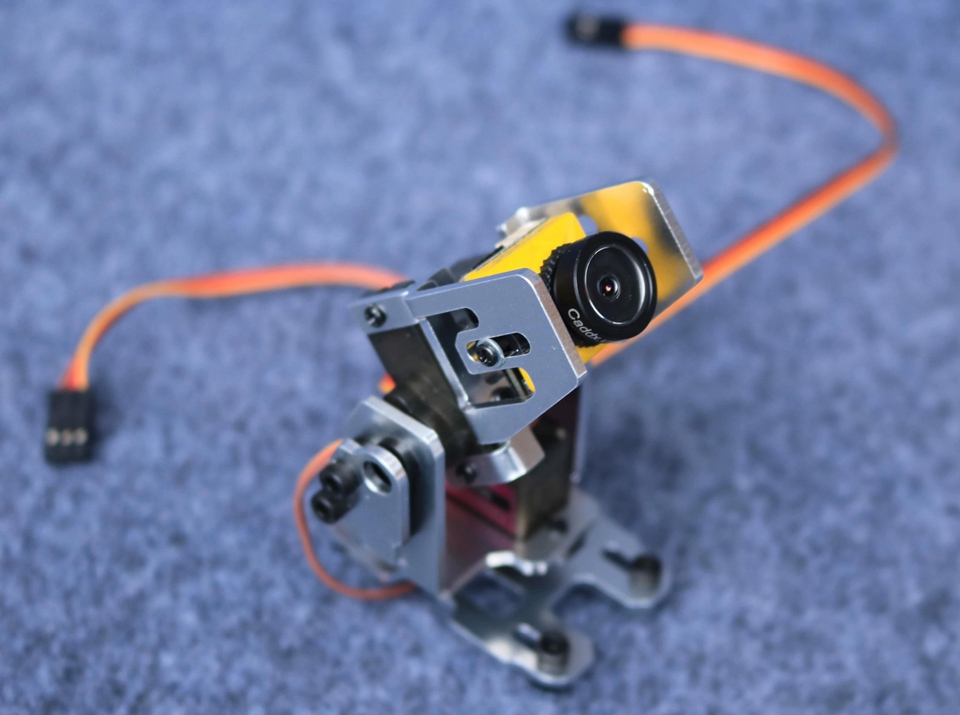

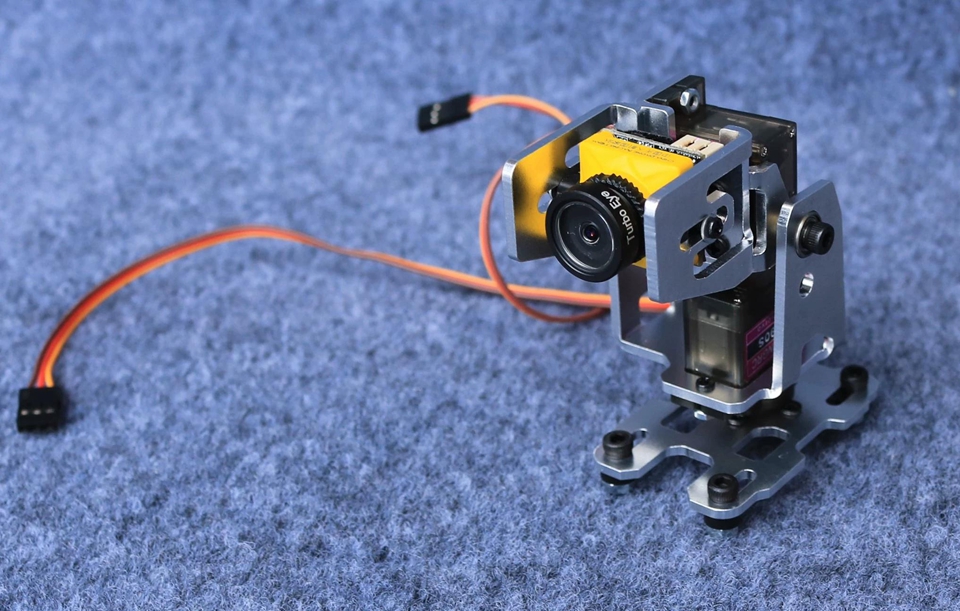

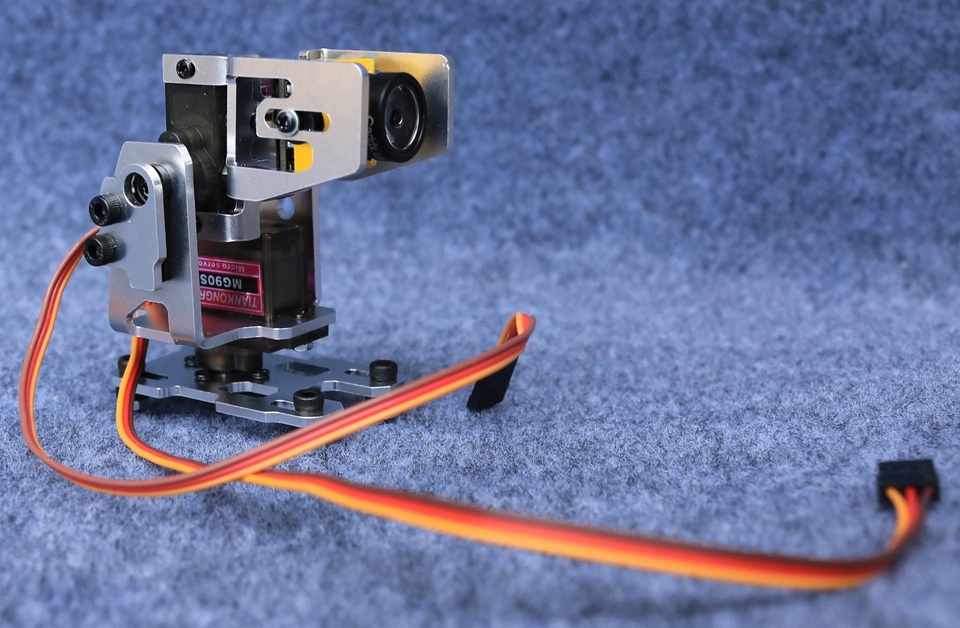

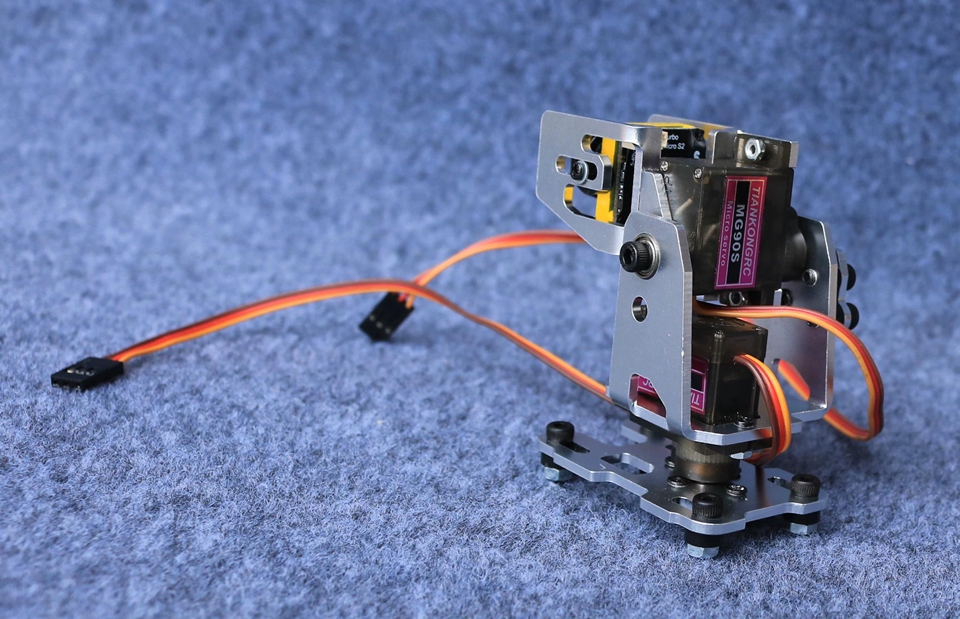

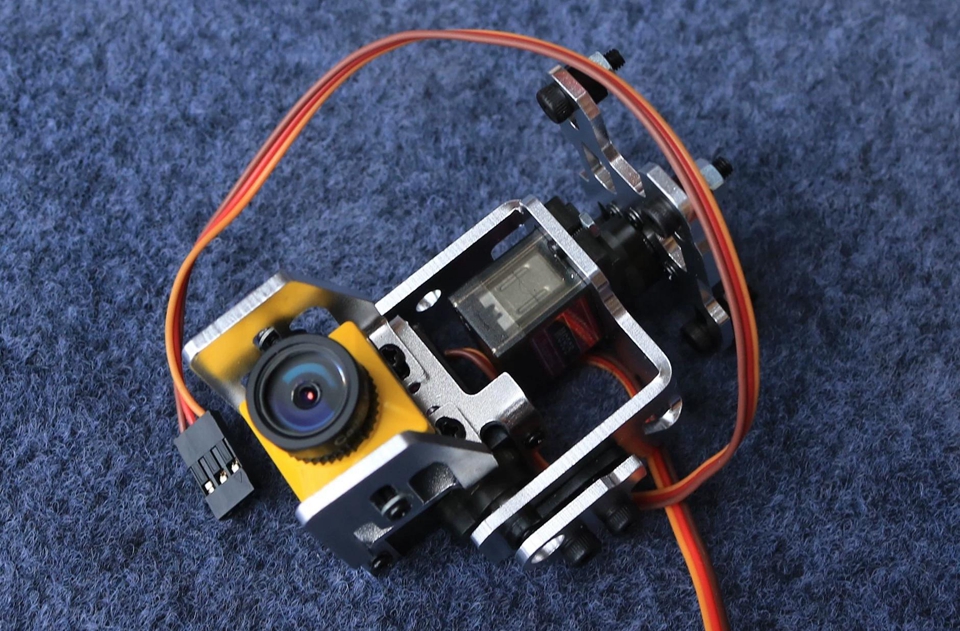

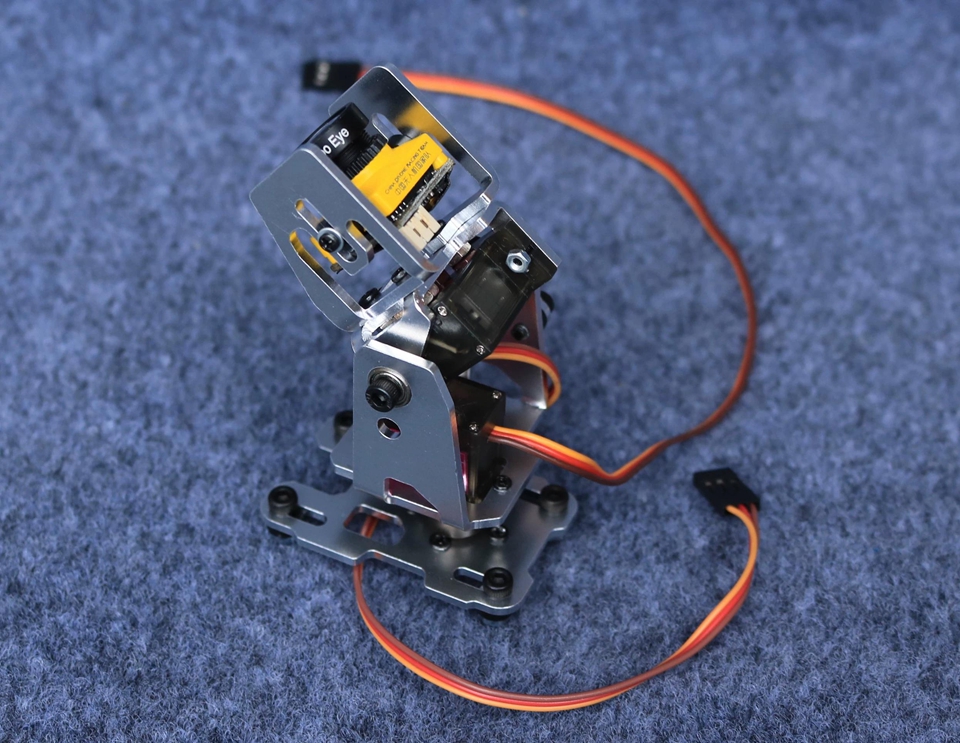

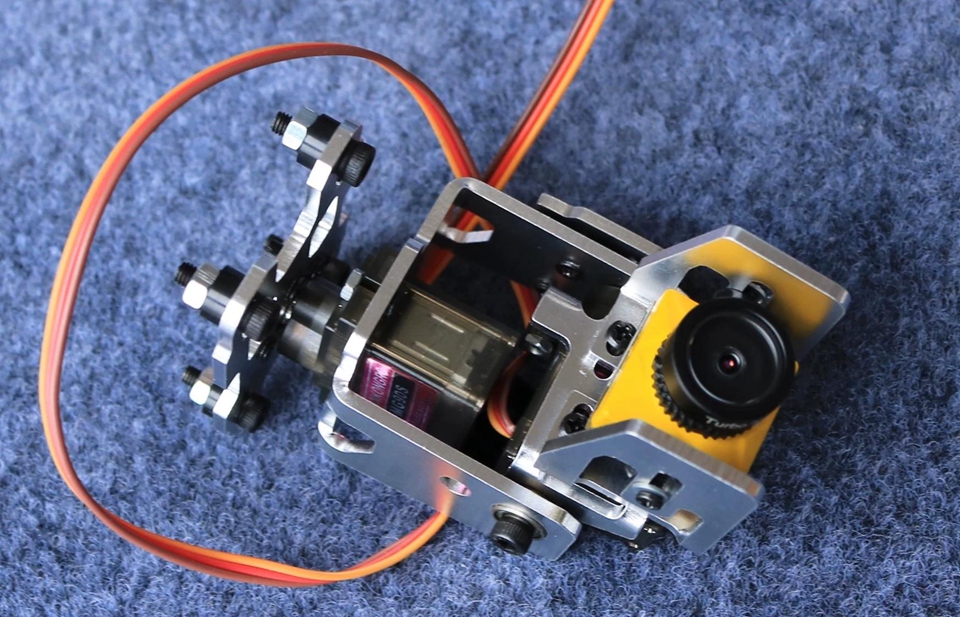

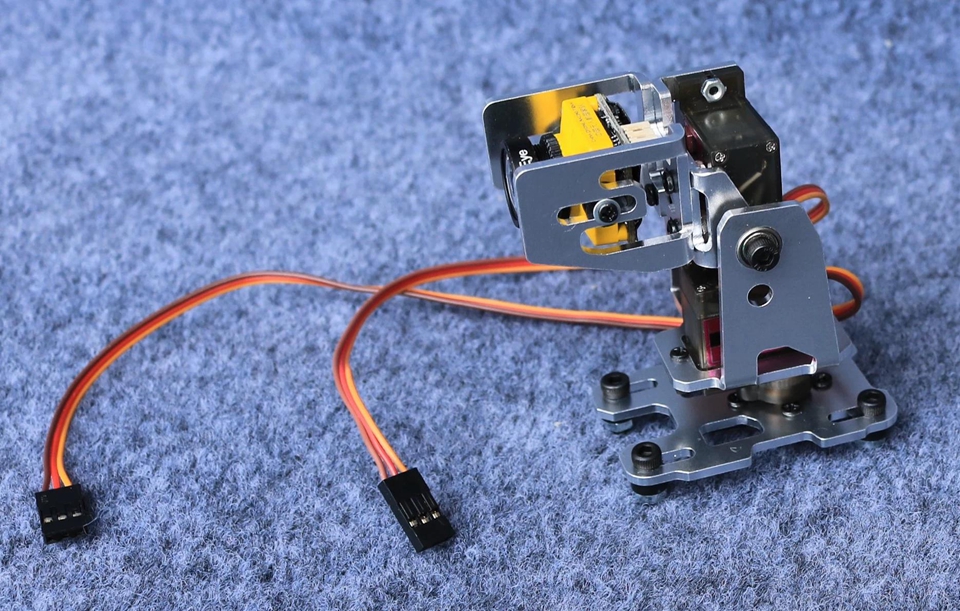

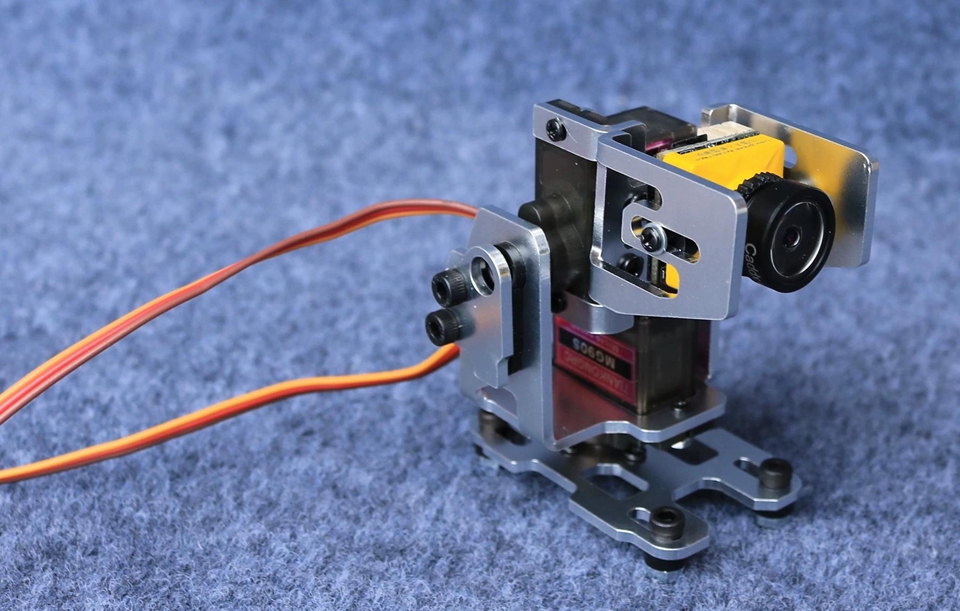

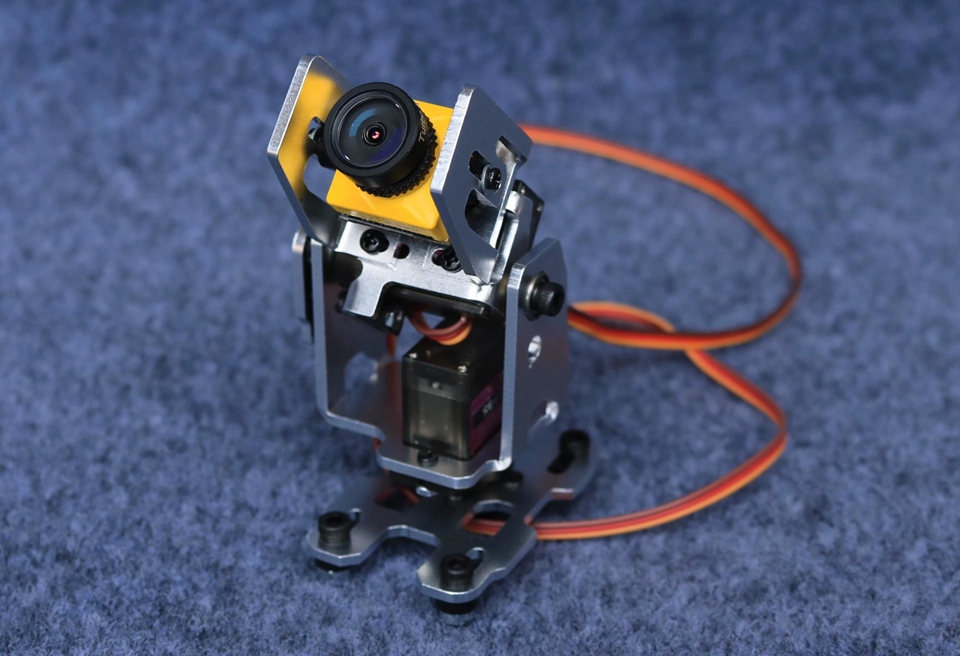

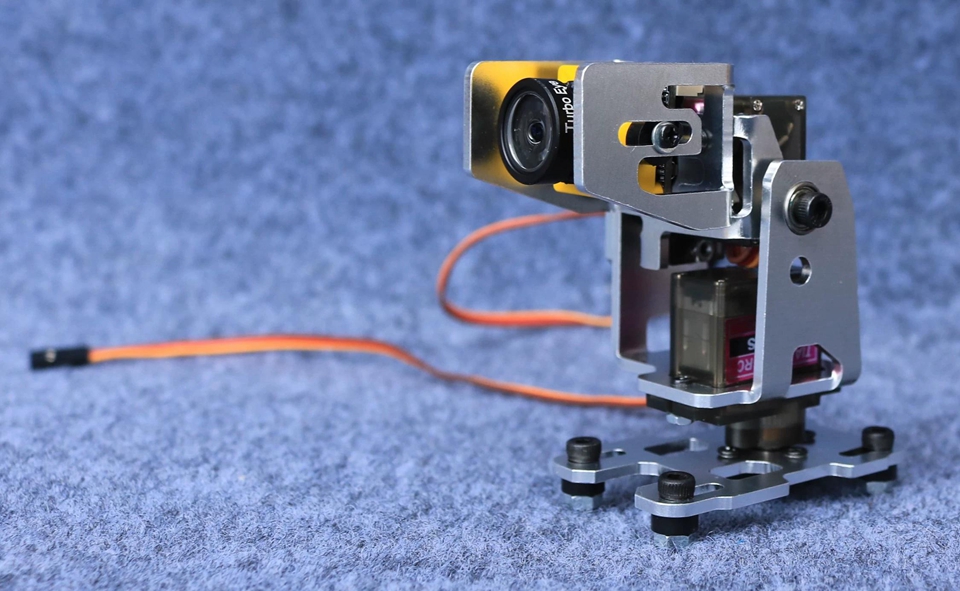

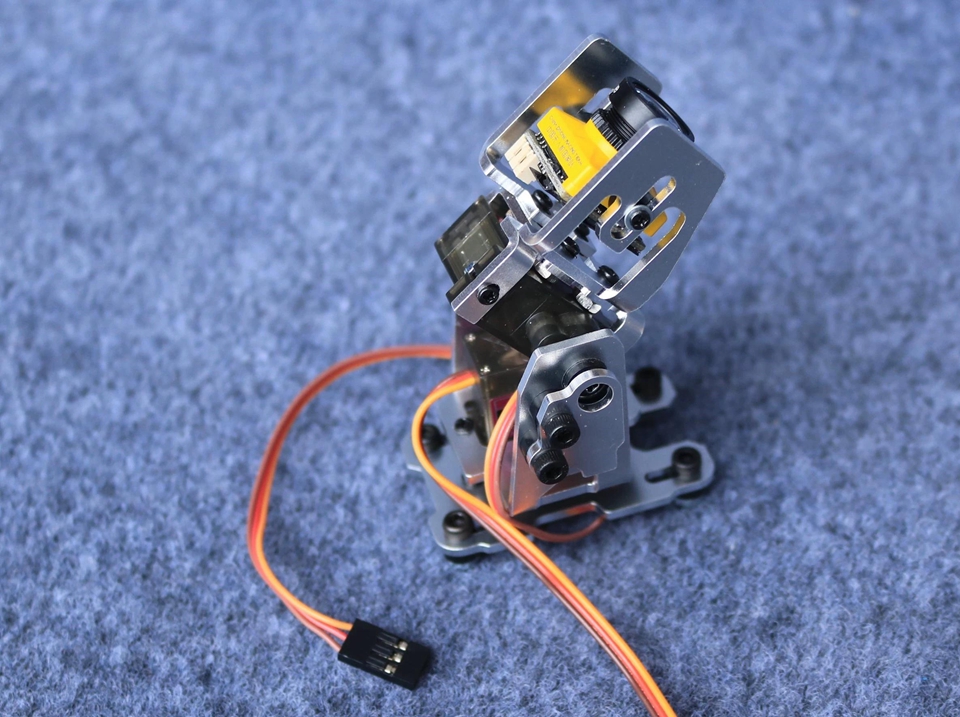

DC4.8V-5V 29-43mm Adjustable Servo Gimbal Bracket Dual-axis 29x29mm Camera Stand for FPV Drone Head Tracker
Specification:
- Item name: dual servo gimbal bracket
- Working voltage: DC 4.8-5V
- Base material: aluminum alloy
- Camera installation size: within 29mm x 29mm
- Base installation size: adjustable (29-43mm) x 23mm
- Height: 63mm
- Weight: 33g (without servo); 62g (with full metal servo)
- Plug type: standard 2.54mm 3P servo plug
- Servo type: MG90S (full metal gear)
- Connecting the aircraft model remote controller receiver requires 2 channels
- Used for RC FPV drone airplane
Servo Pin:
- Brown wire: 5V -
- Red wire: 5V +
- Yellow wire: PWM input (typical value 50Hz 1000-2000us)
Note:
- The camera is not included.
- This product is in bulk, you need to assemble it yourself.
- The product may have slight color difference.
- Don't use your hands to forcefully break the angles of the two servos! Excessive force can easily cause damage and gear sweep to the servos!
- If you need installation instructions, please contact our customer service personnel.
Package Included:
- 1 x Gimbal Bracket
