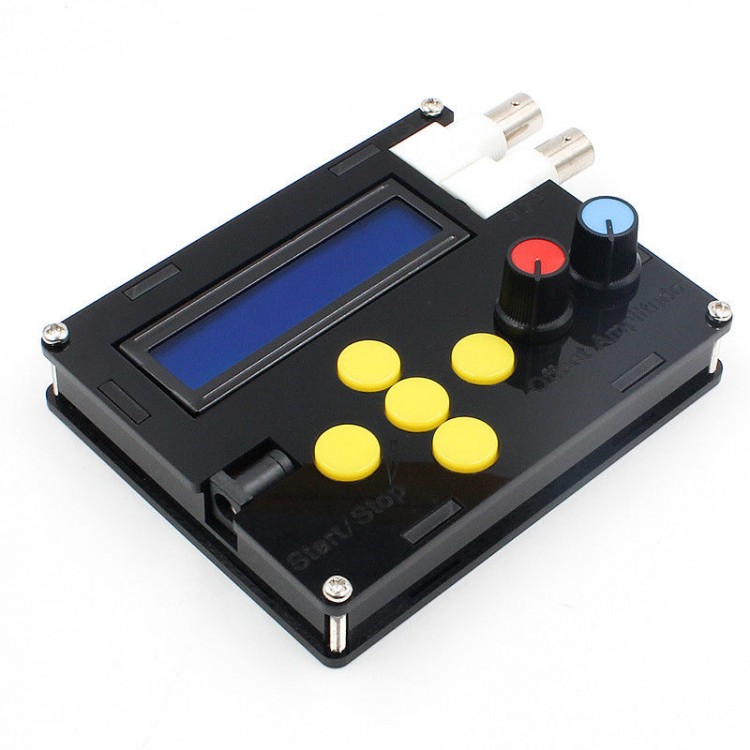

DDS Function Signal Generator Sine Square Triangle Low Frequency Premium Quality with Housing

Availability: In stock, usually dispatched in 1 business day

  • Price:$16.35
  • Price in reward points: 164 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $16.02 $15.70 $15.21 $14.55 Contact US
Quantity:

DDS Function Signal Generator Sine Square Triangle Low Frequency Premium Quality with Housing

Description:

The function (waveform) signal generator can generate certain periodic time function waveforms (sine, square, triangle, sawtooth, pulse, etc.) signals. Its frequency range can range from a few micro-hertz to tens of megahertz. Function signal generators are widely used in circuit experiments, equipment testing, learning and designing circuit.

Parameters:
- Frequency: 1HZ-65534Hz (almost no distortion, the enlarged part adopts TL082)
- High-Speed Frequency (HS) Square Wave: 1MHZ/2MHZ/4MHZ/8MHZ signal
- The offset amplitude of the signal generated by the DDS can be adjusted separately by two potentiometers
- Signals generated by DDS: sine wave, square wave, sawtooth wave, reverse sawtooth wave, triangular wave, ECG wave and noise wave
- 1602 LCD screen
- 5 Keys for operation
- Step Frequency Value: 1, 10, 100, 1000, 10000 Hz
- The last used configuration is automatically restored after the power is turned on
- The offset is 0.5pp-5Vpp
- The amplitude is 0.5Vpp-14Vpp
- Output Impedance: 20-200Ω

Package Included:
- 1 x DDS Signal Generator + Housing

Note: Self-assembly for the housing is needed. Power cable and signal cable are not included in this package.
